Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168663 |

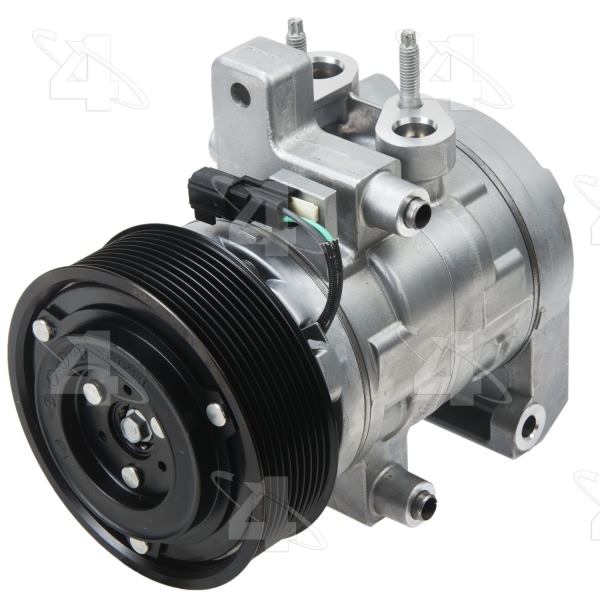

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.921875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17DS |
Distance From Clutch To Mounting Flange | 1.921875 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24241 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24243 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.921875 |
Pulley Outside Diameter | 4.921875 |
Pulley Ridge Diameter | 4.921875 |
Refrigerant Type | R134a |

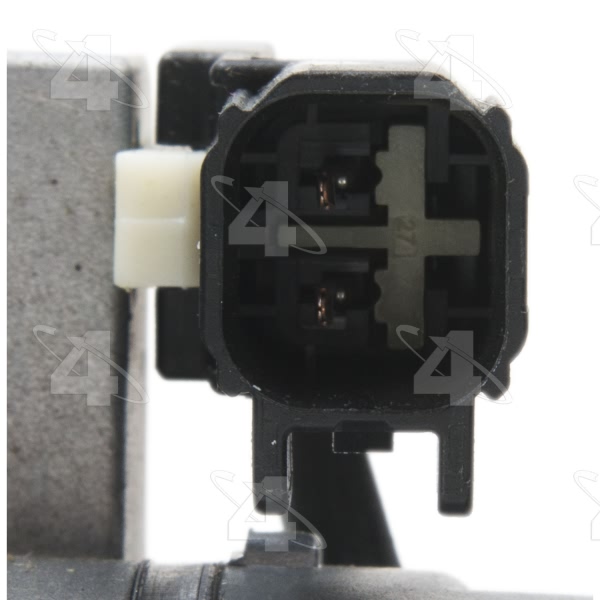

Terminal Type | Pin |
UPC | 096361629745 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2012 Ford Mustang | All Trims | 8 Cyl 5.4L |
2013-2014 Ford Mustang | All Trims | 8 Cyl 5.8L |
