Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168661 |

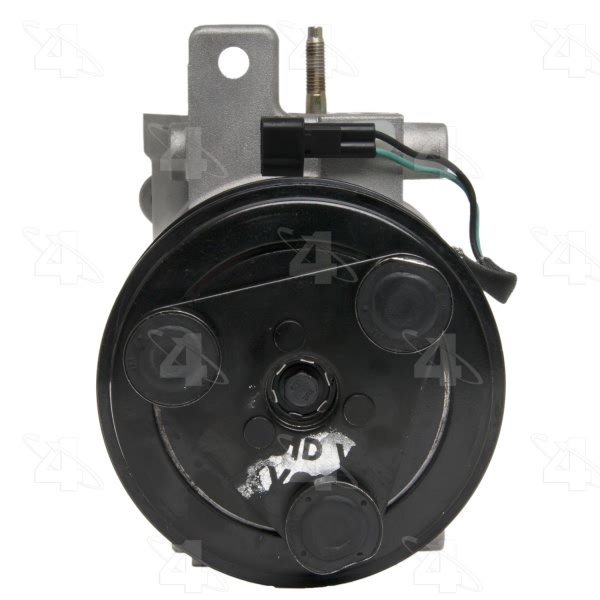

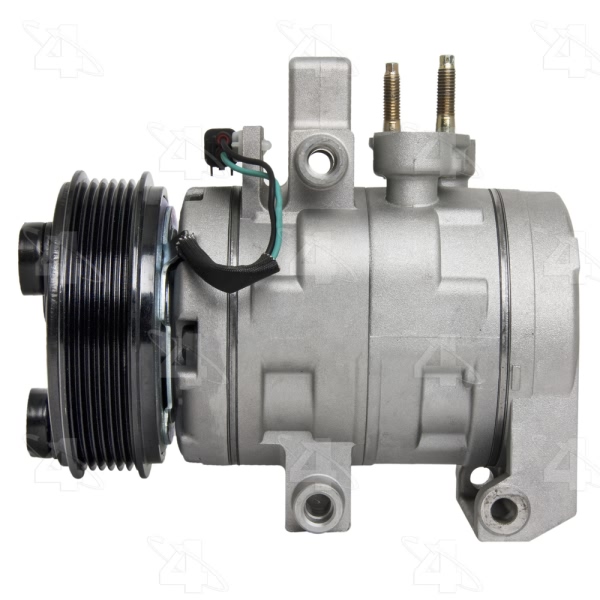

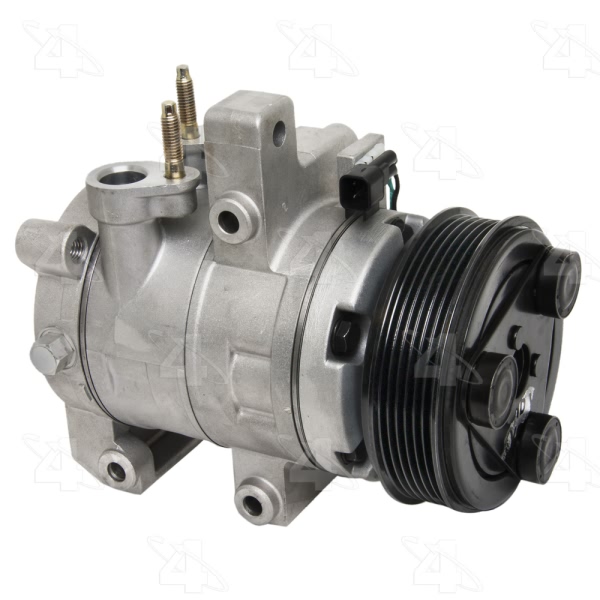

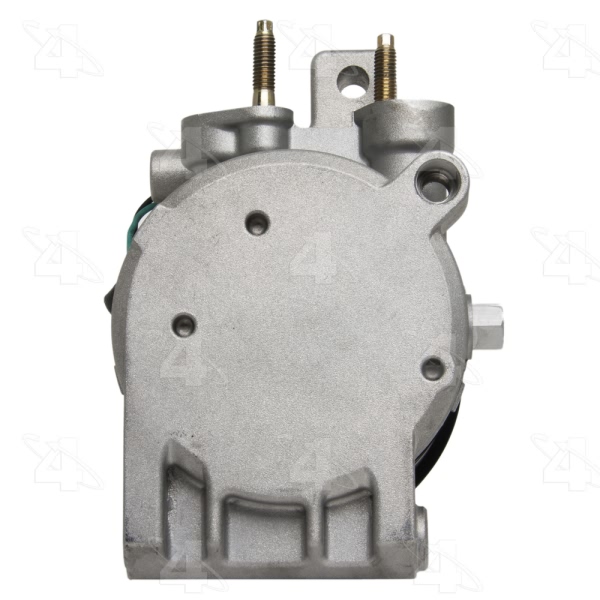

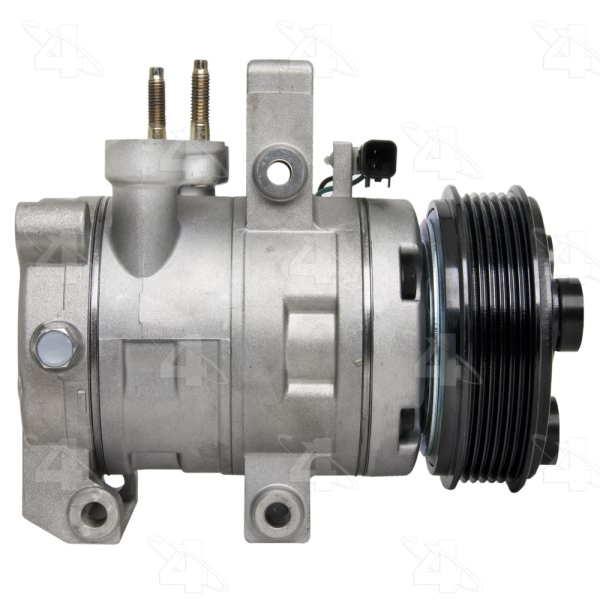

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | DKS17D |

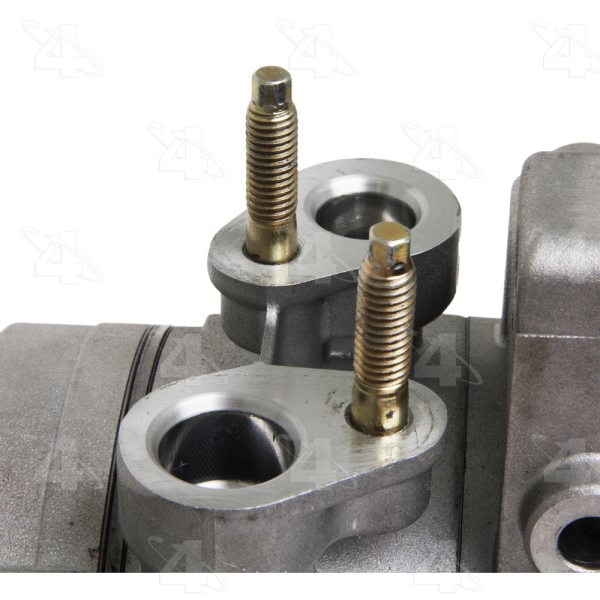

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.40625 |
Mount Distance MM | 60.960 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R-134a or R1234yf |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361623767 |
Year Make Model | Trim | Engine |
---|---|---|
2011-2017 Ford Mustang | All Trims | 8 Cyl 5.0L |
2015-2017 Ford Mustang | All Trims | 8 Cyl 5.2L |
2018 Ford Mustang | Shelby GT350 | All Engines |
2018 Ford Mustang | Shelby GT350R | All Engines |
