Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168397 |

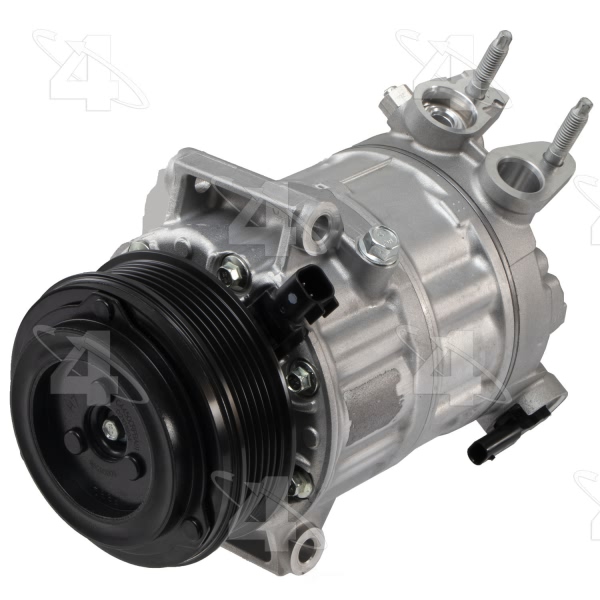

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.26 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | VS12 |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24257 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24642 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24243 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.26 |
Pulley Outside Diameter | 4.26 |
Pulley Ridge Diameter | 4.26 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361143722 |
Year Make Model | Trim | Engine |
---|---|---|
2018 Ford Transit-150 | Base | 5 Cyl 3.2L |
2018 Ford Transit-150 | XL | 5 Cyl 3.2L |
2018 Ford Transit-150 | XLT | 5 Cyl 3.2L |
2019 Ford Transit-150 | All Trims | 5 Cyl 3.2L |
2018 Ford Transit-250 | Base | 5 Cyl 3.2L |
2018 Ford Transit-250 | PTV | 5 Cyl 3.2L |
2019 Ford Transit-250 | All Trims | 5 Cyl 3.2L |
2018-2019 Ford Transit-350 | All Trims | 5 Cyl 3.2L |
2018 Ford Transit-350 HD | Base | 5 Cyl 3.2L |
2018 Ford Transit-350 HD | XL | 5 Cyl 3.2L |
