Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168395 |

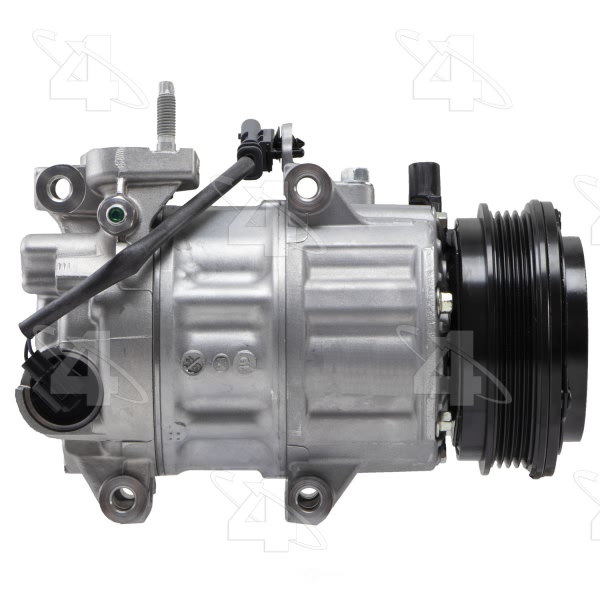

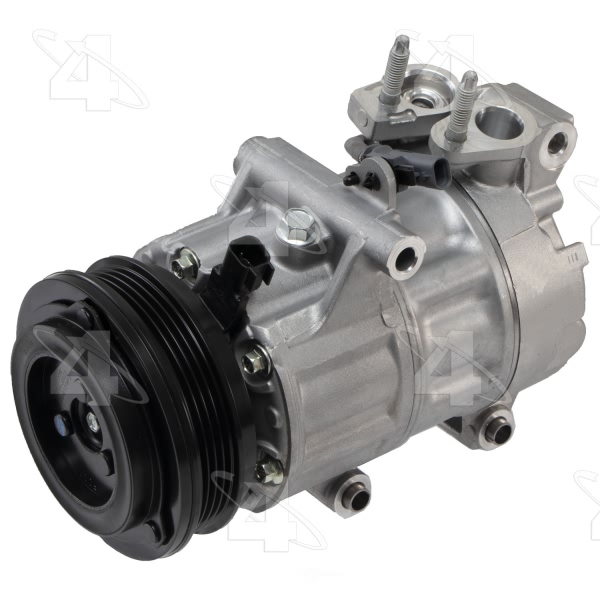

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.265625 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | HCC-VS12 |
Distance From Clutch To Mounting Flange | 2.640625 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24257 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24642 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24243 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.265625 |
Pulley Outside Diameter | 4.265625 |
Pulley Ridge Diameter | 4.265625 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361143760 |
Year Make Model | Trim | Engine |
---|---|---|
2018-2019 Ford EcoSport | All Trims | 4 Cyl 2.0L |
