Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168387 |

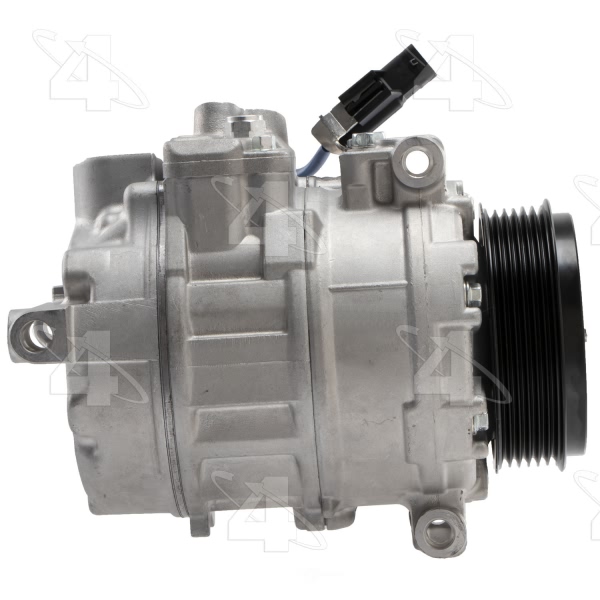

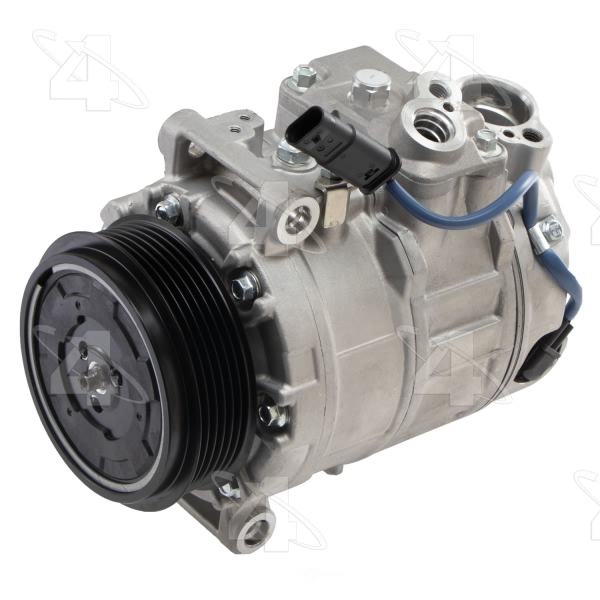

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.94 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 7SEU17C |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24635 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24659 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24683 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.94 |
Pulley Outside Diameter | 3.94 |
Pulley Ridge Diameter | 3.94 |
Refrigerant Type | R-134a or R1234yf |

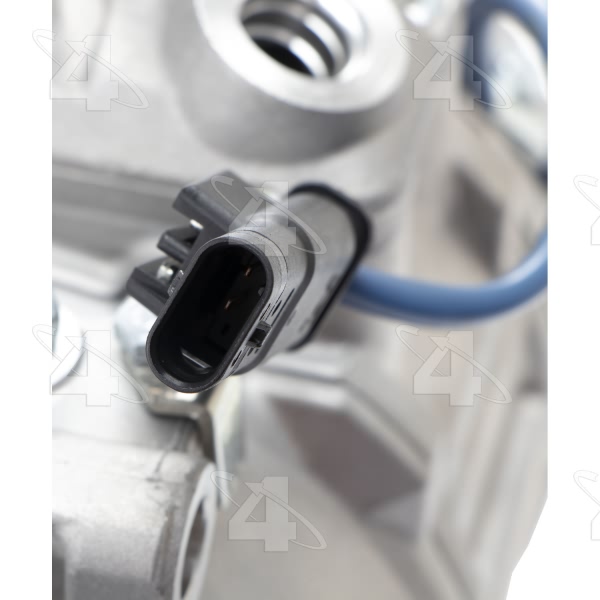

Terminal Type | Pin |
UPC | 096361118904 |
Year Make Model | Trim | Engine |
---|---|---|
2014-2015 Mercedes-Benz S500 | All Trims | All Engines |
2015 Mercedes-Benz S500L | All Trims | All Engines |
2014 Mercedes-Benz S63 AMG | All Trims | All Engines |
