Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168376 |

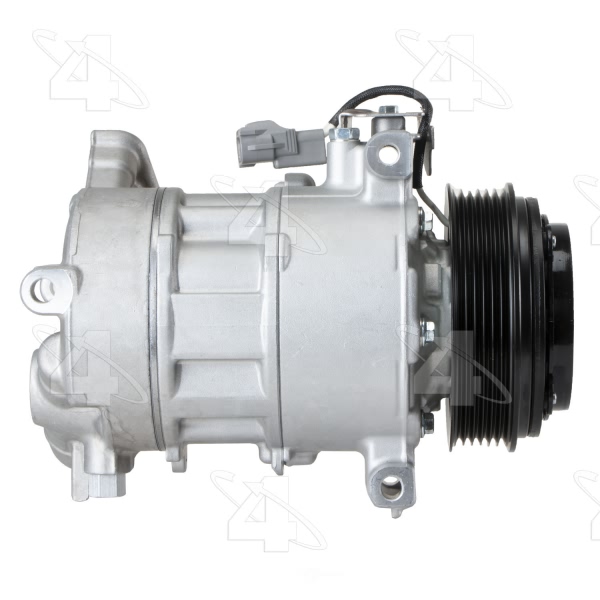

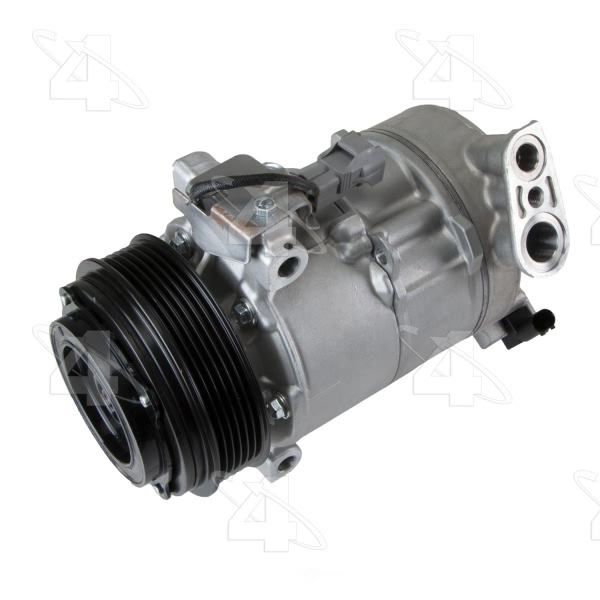

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

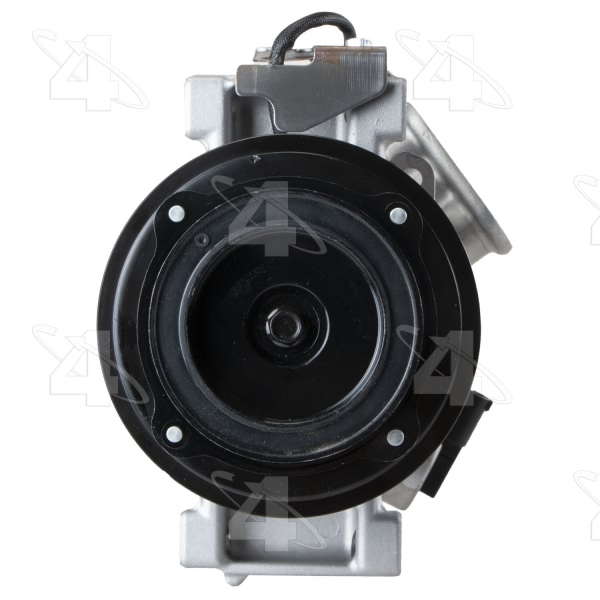

Clutch Maximum Diameter | 4.330 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 6SBU14 |
Distance From Clutch To Mounting Flange | 0.74 |

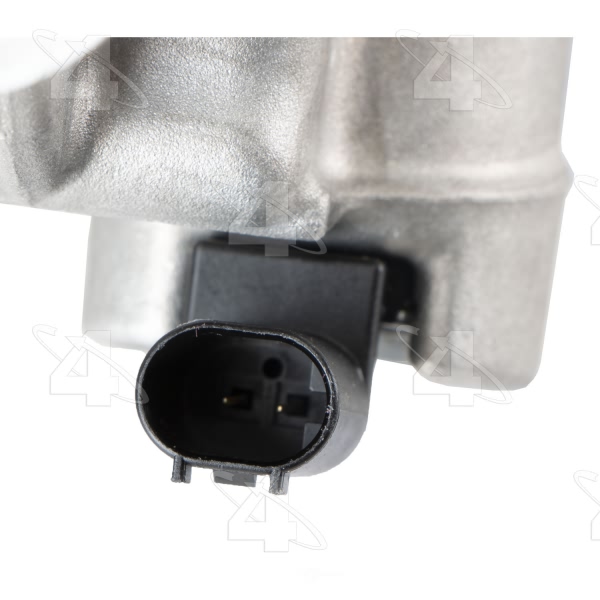

ECV Harness Connector | SE31F, 26900 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.330 |
Pulley Outside Diameter | 4.330 |
Pulley Ridge Diameter | 4.330 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361098855 |
Year Make Model | Trim | Engine |
---|---|---|
2016-2017 Fiat 500X | All Trims | 4 Cyl 2.4L |
2017 Fiat 500X | Lounge | 4 Cyl 2.4L |
2017 Fiat 500X | Pop | 4 Cyl 2.4L |
2017 Fiat 500X | Sport | 4 Cyl 2.4L |
2017 Fiat 500X | Trekking | 4 Cyl 2.4L |
2017 Fiat 500X | Urbana | 4 Cyl 2.4L |
2015 Jeep Renegade | All Trims | All Engines |
2016 Jeep Renegade | All Trims | 4 Cyl 2.4L |
2017 Jeep Renegade | Latitude | 4 Cyl 1.4L |
2017 Jeep Renegade | North | 4 Cyl 1.4L |
