Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168371 |

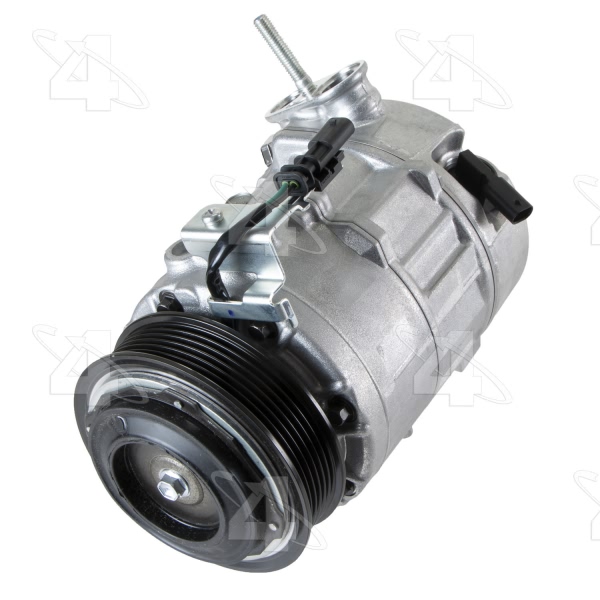

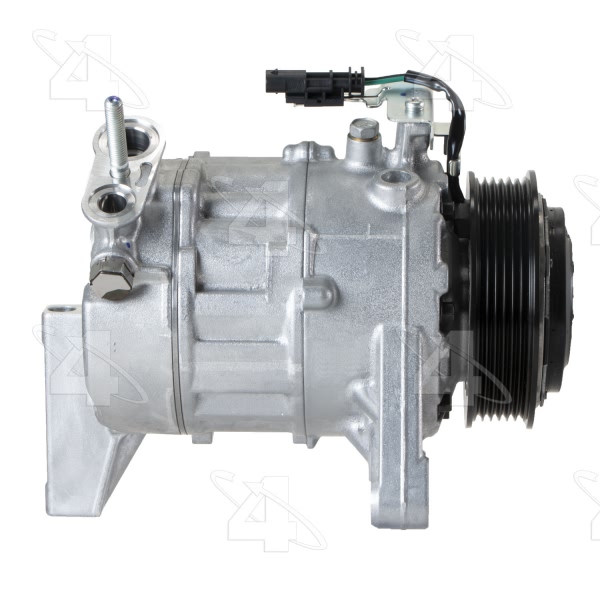

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.3125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 7SAS18H |
Distance From Clutch To Mounting Flange | 0.953125 |

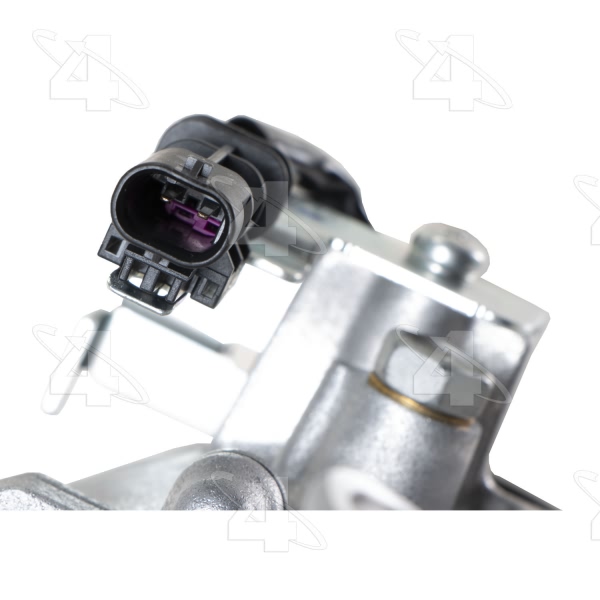

ECV Harness Connector | SE25F, 26897 Female / / SE23M, 26883 Male |
Mounting Hardware | Not Included |
Mounting Type | 2 Ear & 1 Tangent |
New or Reman | New |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

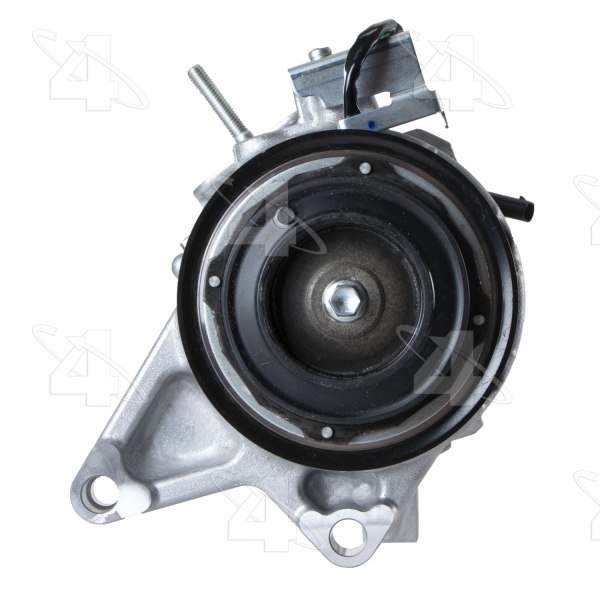

Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.3125 |
Pulley Outside Diameter | 5.3125 |
Pulley Ridge Diameter | 5.3125 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361093218 |
Year Make Model | Trim | Engine |
---|---|---|
2013 Cadillac XTS | Livery | 6 Cyl 3.6L |
2014-2019 Cadillac XTS | All Trims | 6 Cyl 3.6L |
