Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168363 |

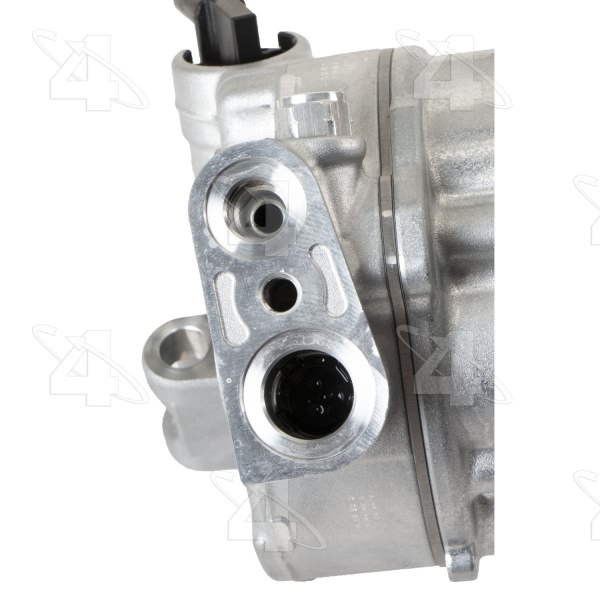

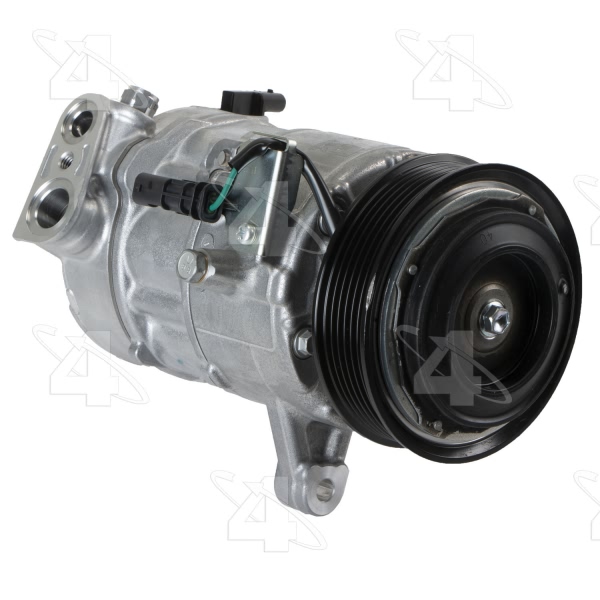

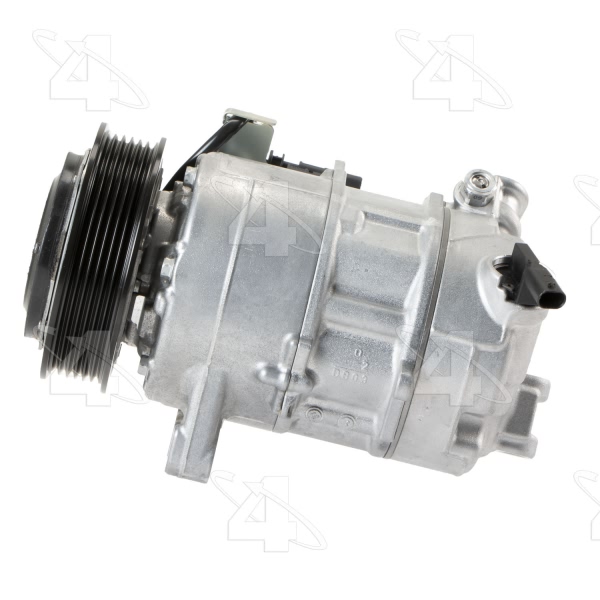

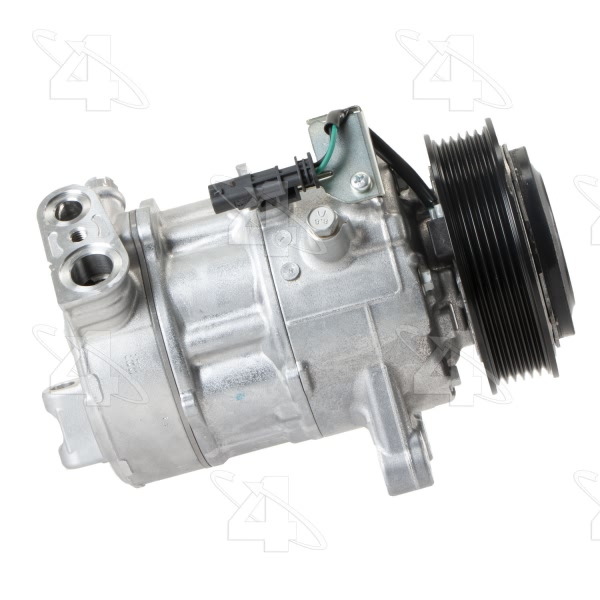

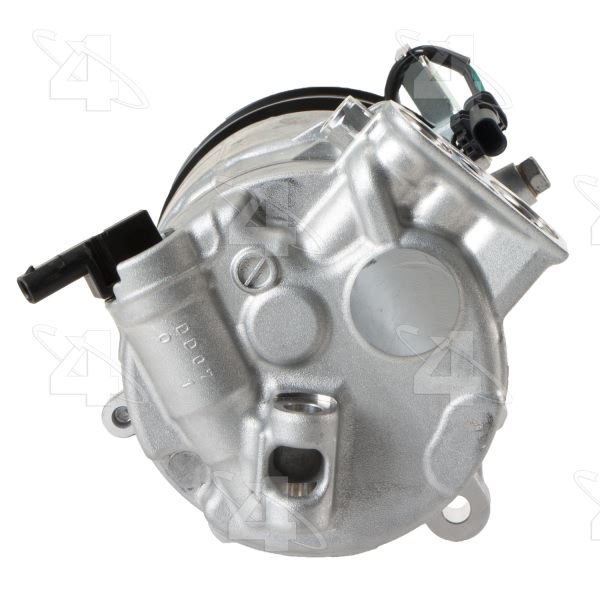

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 6SAS14H |
Distance From Clutch To Mounting Flange | 1.484375 |

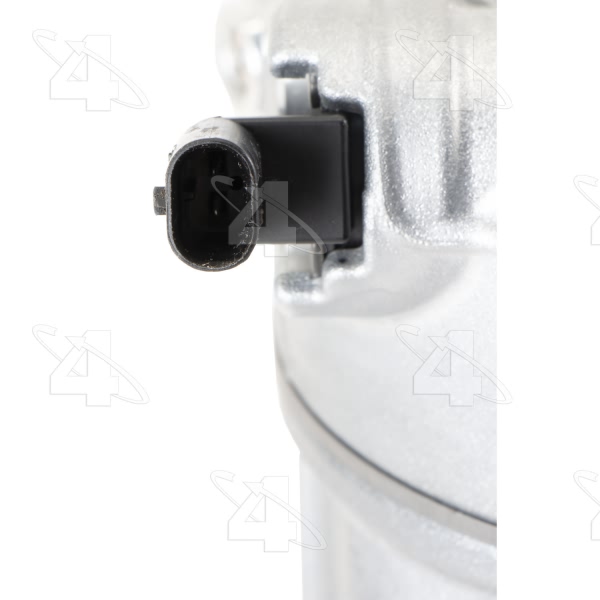

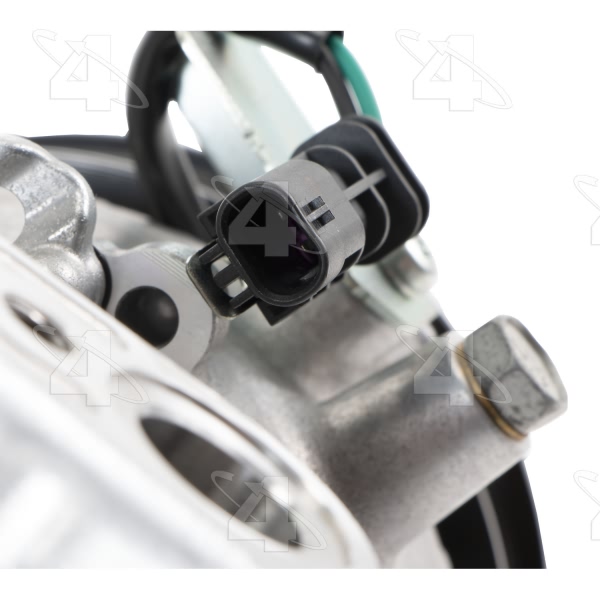

ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361088801 |
Year Make Model | Trim | Engine |
---|---|---|
2016 Cadillac ATS | All Trims | 6 Cyl 3.6L |
2016 Cadillac CTS | All Trims | 6 Cyl 3.6L |
2016-2019 Chevrolet Camaro | All Trims | 6 Cyl 3.6L |
