Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168359 |

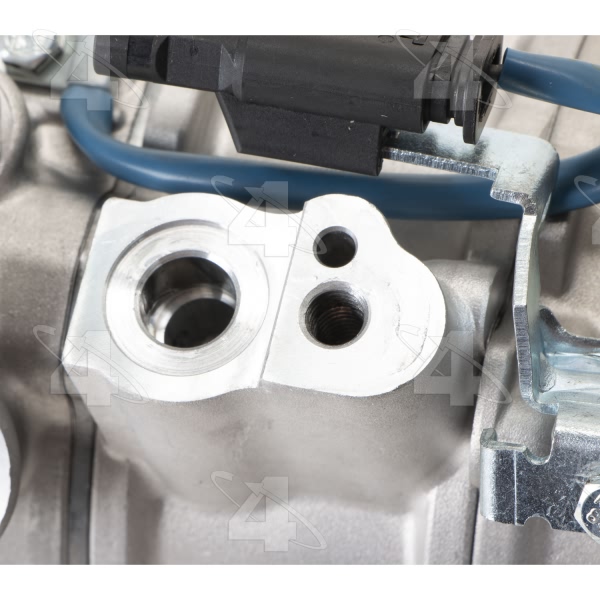

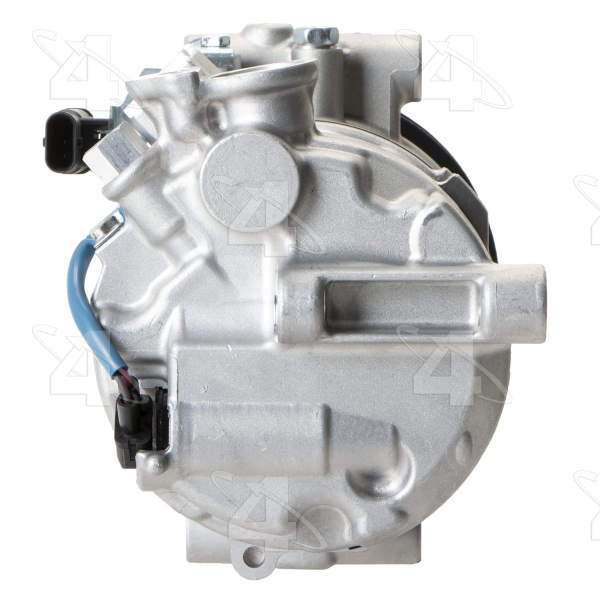

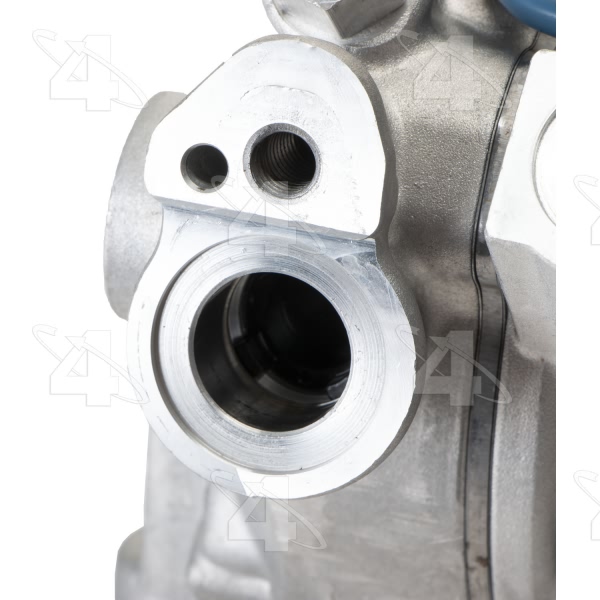

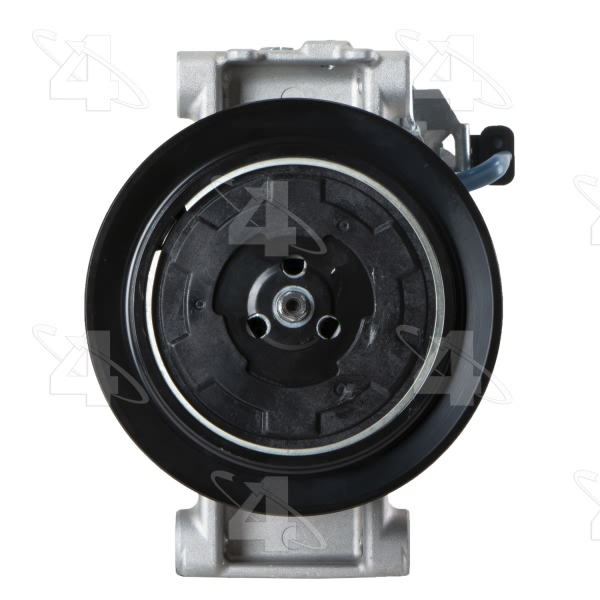

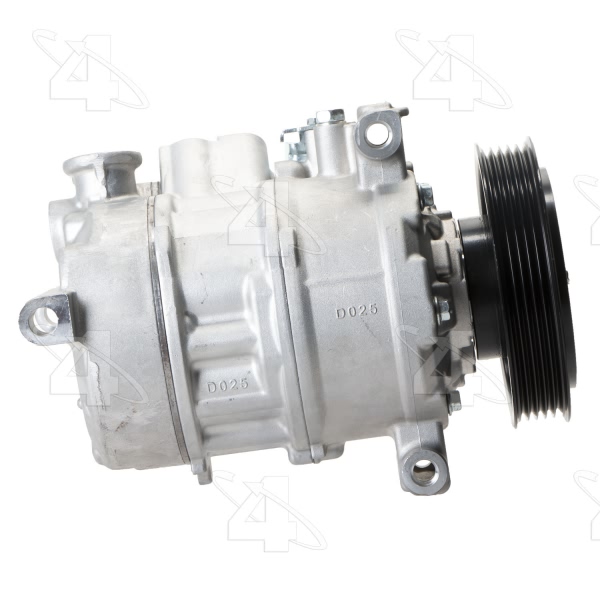

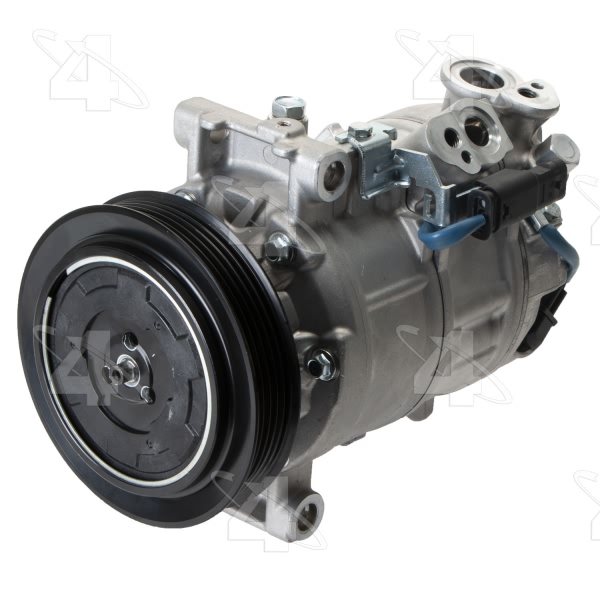

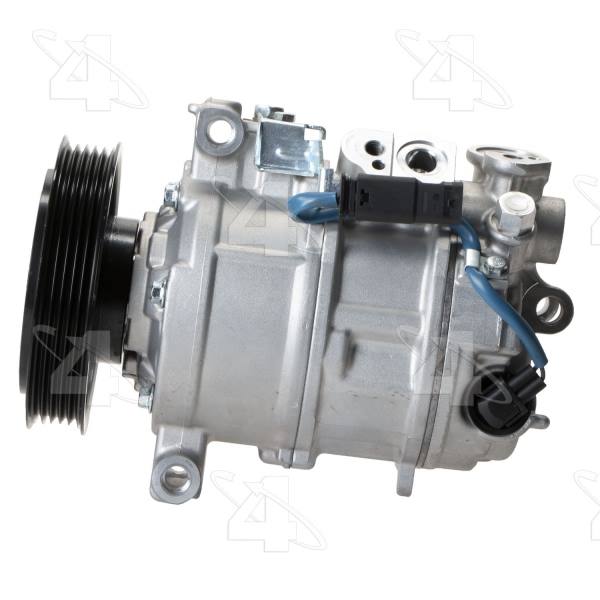

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.52 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SES14C |
Distance From Clutch To Mounting Flange | 1.375 |

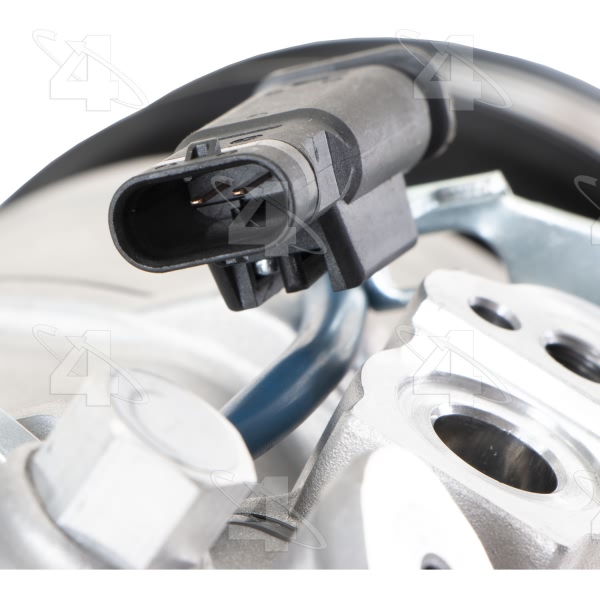

ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.52 |
Pulley Outside Diameter | 4.52 |
Pulley Ridge Diameter | 4.52 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361091771 |
Year Make Model | Trim | Engine |
---|---|---|
2018 Mercedes-Benz CLA200 | All Trims | All Engines |
2014-2018 Mercedes-Benz CLA250 | All Trims | All Engines |
