Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168355 |

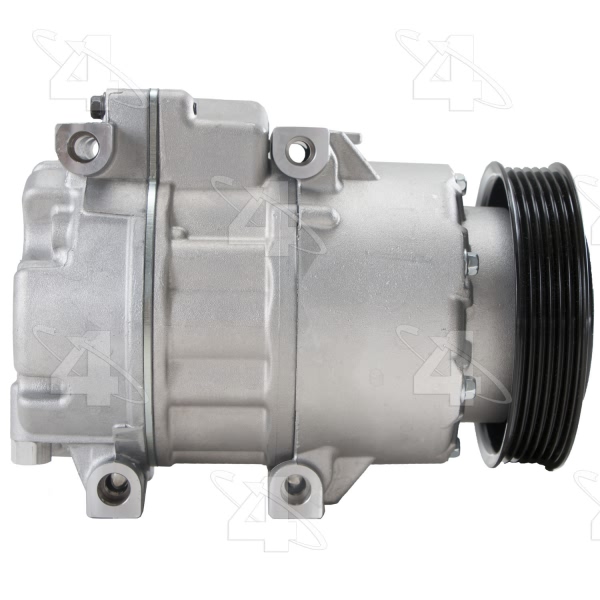

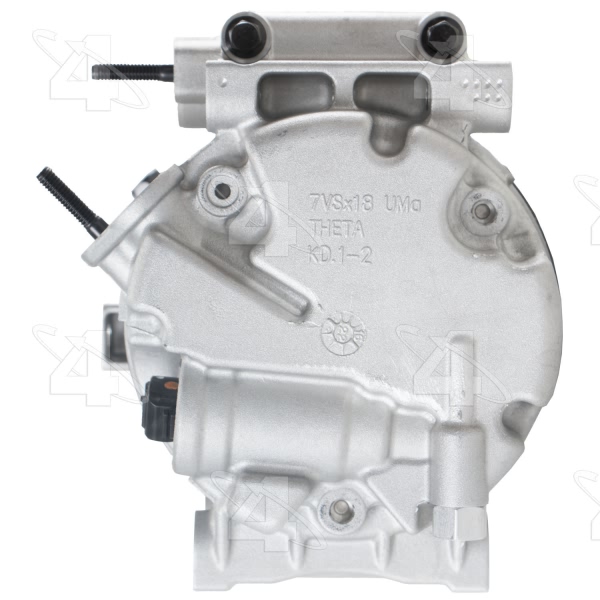

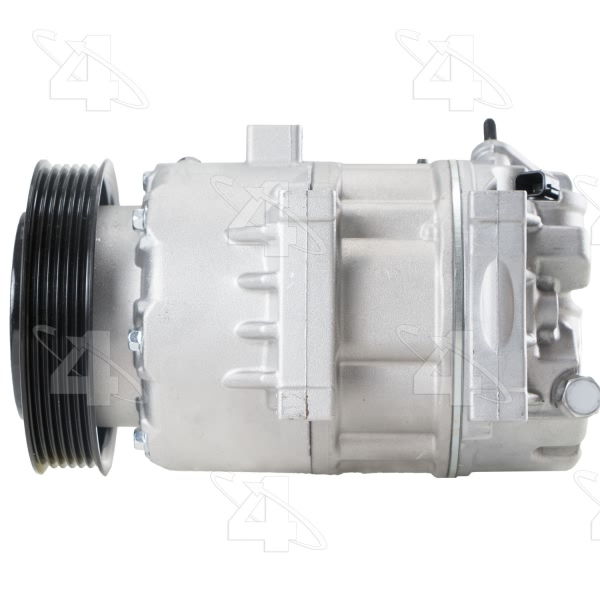

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.620 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | VS18E |
Distance From Clutch To Mounting Flange | 2.859375 |

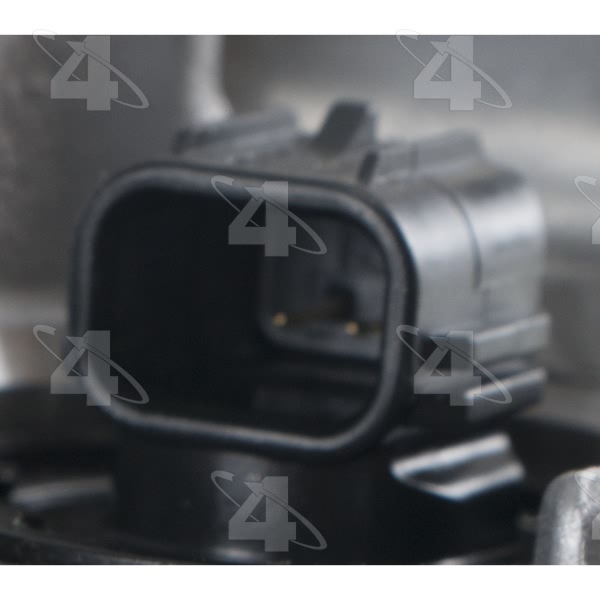

ECV Harness Connector | SE30F, 26899 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24131 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24622 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.620 |
Pulley Outside Diameter | 4.620 |
Pulley Ridge Diameter | 4.620 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361032149 |
Year Make Model | Trim | Engine |
---|---|---|
2015-2016 Kia Sorento | All Trims | 4 Cyl 2.4L |
2016 Kia Sorento | All Trims | 4 Cyl 2.0L |
2017 Kia Sorento | SX Turbo | 4 Cyl 2.0L |
2017-2018 Kia Sorento | EX | 4 Cyl 2.0L |
2017-2018 Kia Sorento | L | 4 Cyl 2.4L |
2017-2018 Kia Sorento | LX | 4 Cyl 2.4L |
2018 Kia Sorento | LX | 4 Cyl 2.0L |
2018 Kia Sorento | SX | 4 Cyl 2.0L |
