Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168349 |

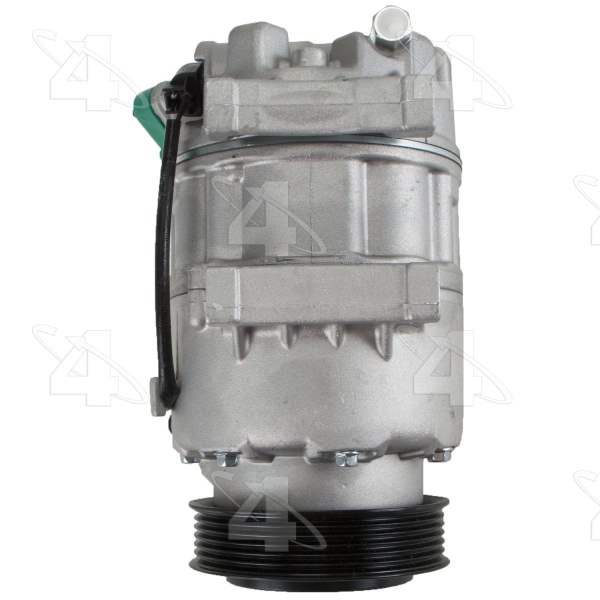

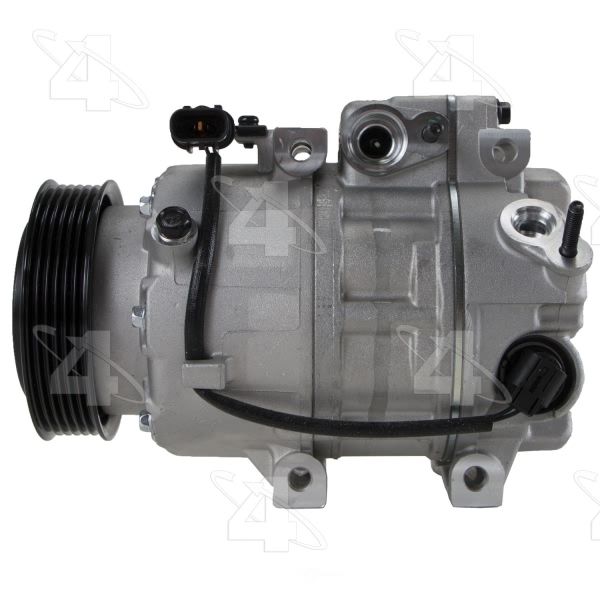

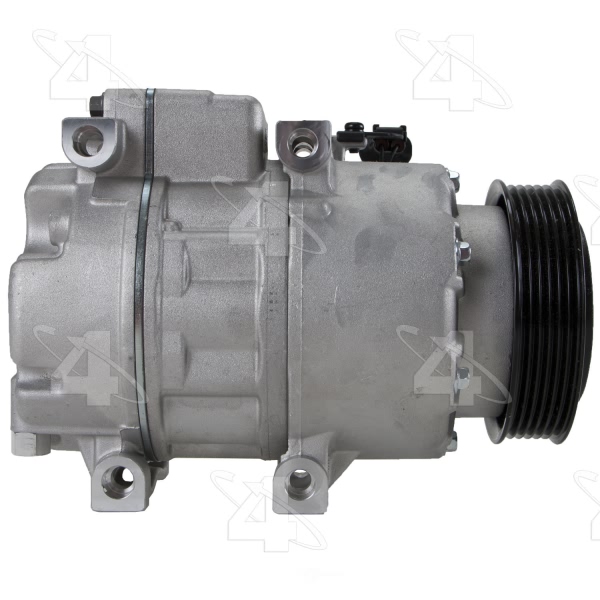

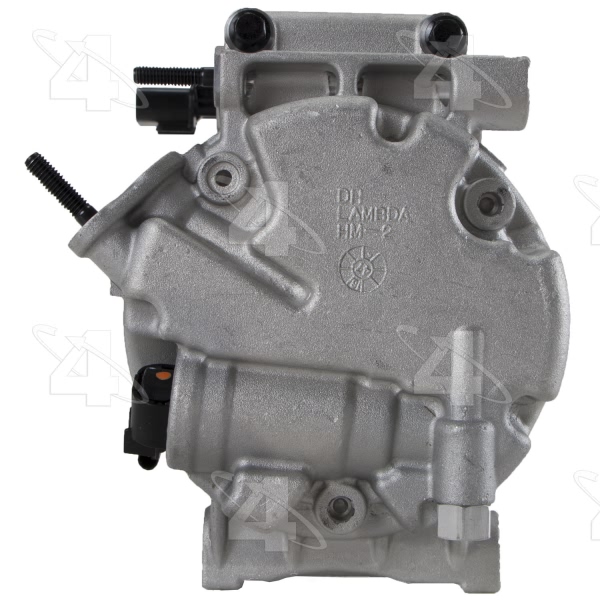

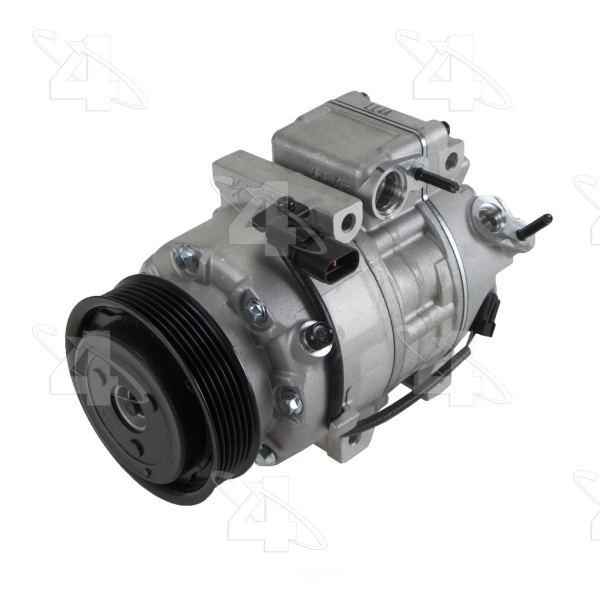

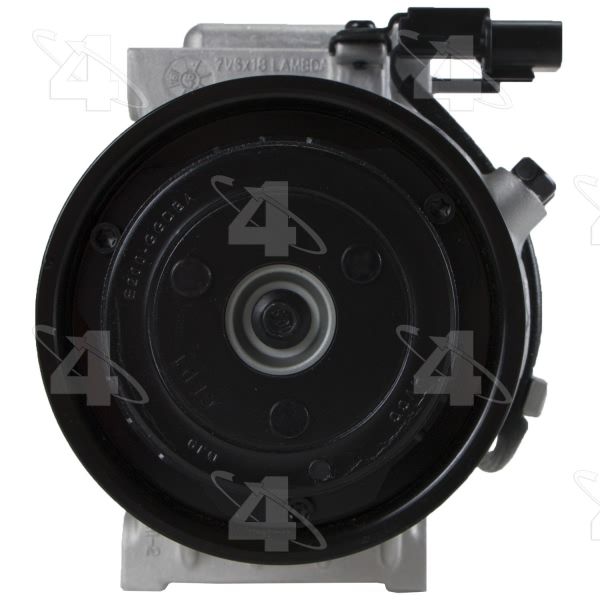

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | VS18E |
Distance From Clutch To Mounting Flange | 2.484375 |

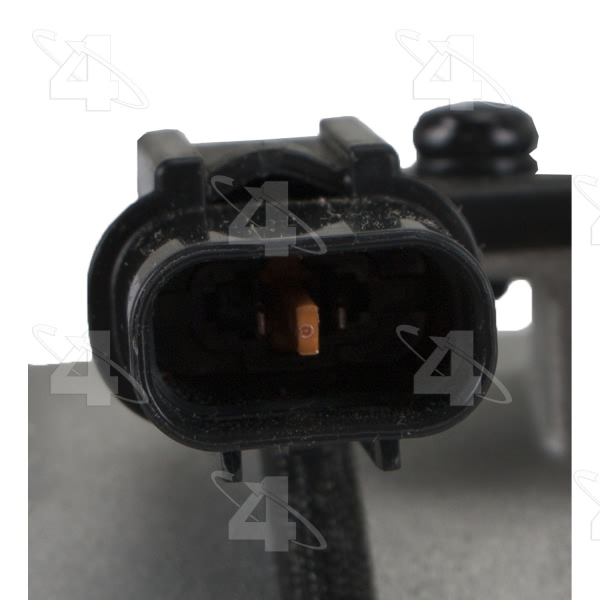

ECV Harness Connector | SE30F, 26899 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24131 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24622 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.125 |
Pulley Outside Diameter | 4.125 |
Pulley Ridge Diameter | 4.125 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361031401 |
Year Make Model | Trim | Engine |
---|---|---|
2017 Genesis G80 | All Trims | 6 Cyl 3.8L |
2017 Genesis G90 | All Trims | 6 Cyl 3.3L |
2018 Genesis G90 | Premium | All Engines |
2014-2016 Hyundai Genesis | All Trims | 6 Cyl 3.8L |
