Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168319 |

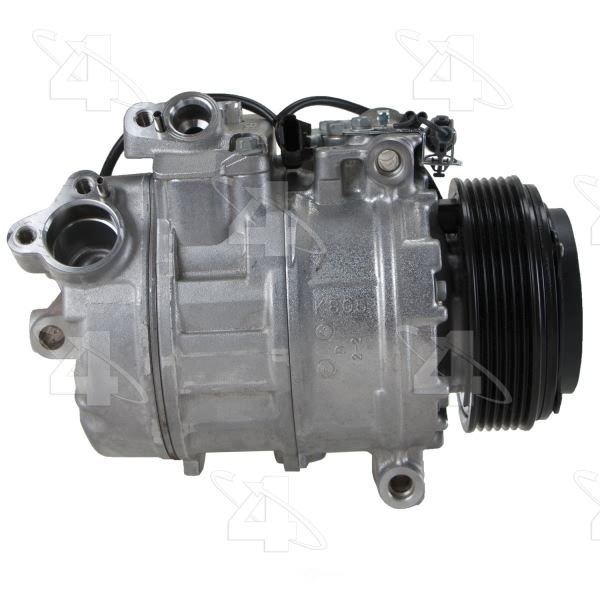

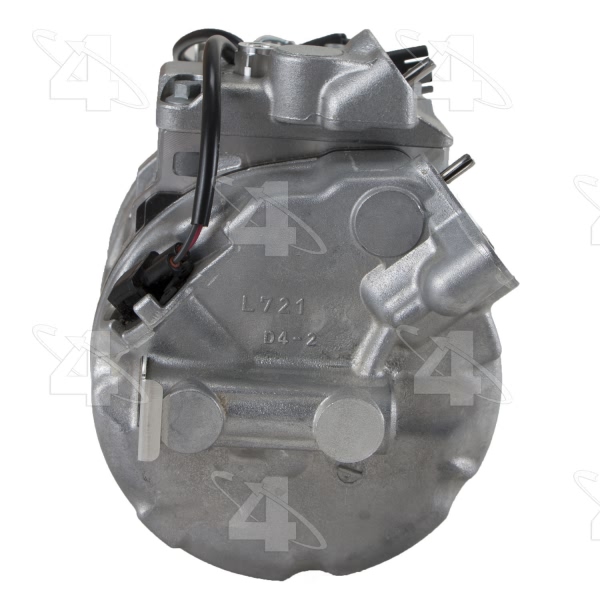

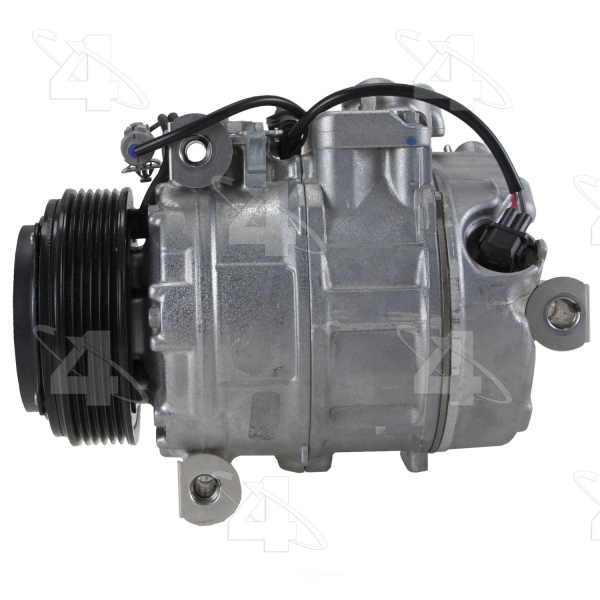

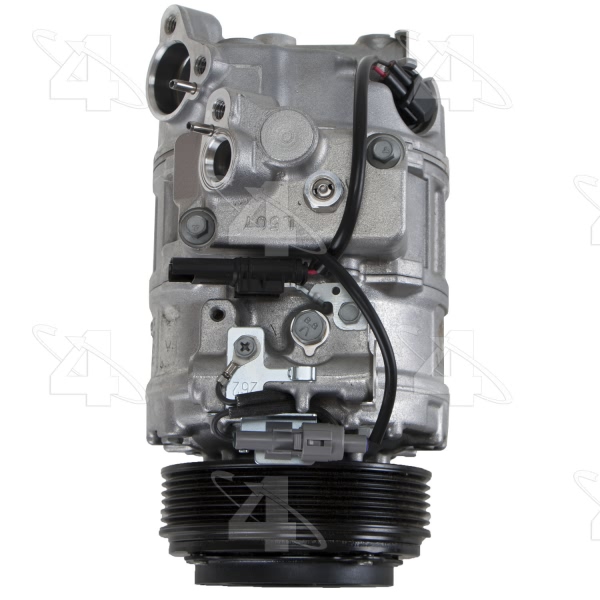

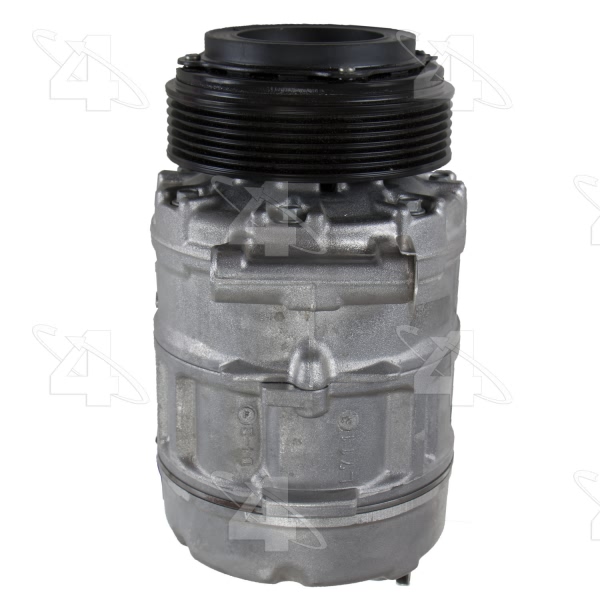

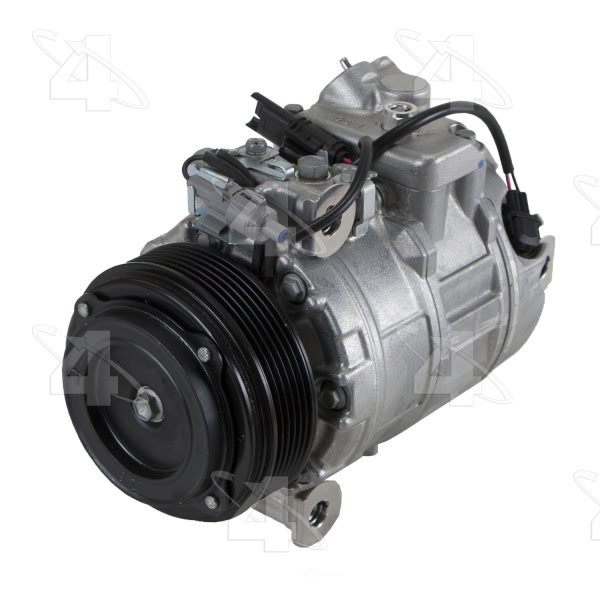

Part Description | A C Compressor With Clutch |

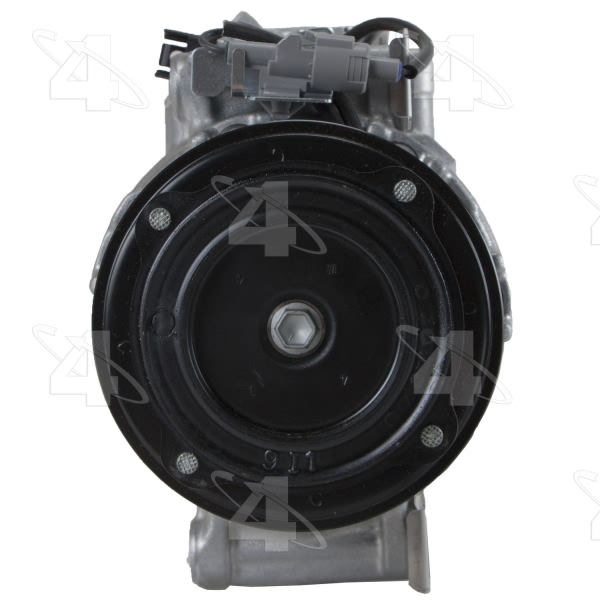

Clutch Included | Yes |
Clutch Maximum Diameter | 4.330 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SBU17C |
Distance From Clutch To Mounting Flange | 0.74 |
ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24635 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24659 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24683 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.330 |
Pulley Outside Diameter | 4.330 |
Pulley Ridge Diameter | 4.330 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361031494 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2013 BMW 128i | All Trims | 6 Cyl 3.0L |
