Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168318 |

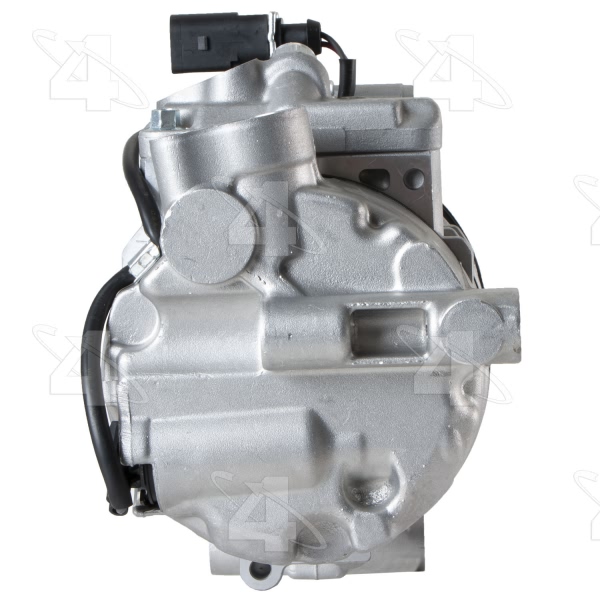

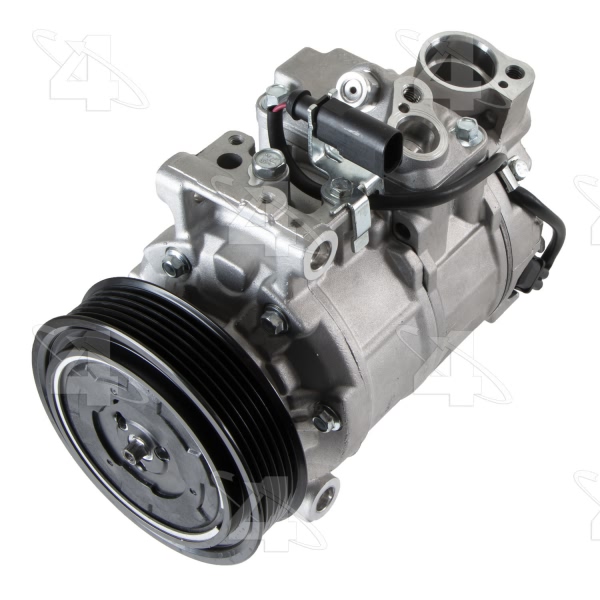

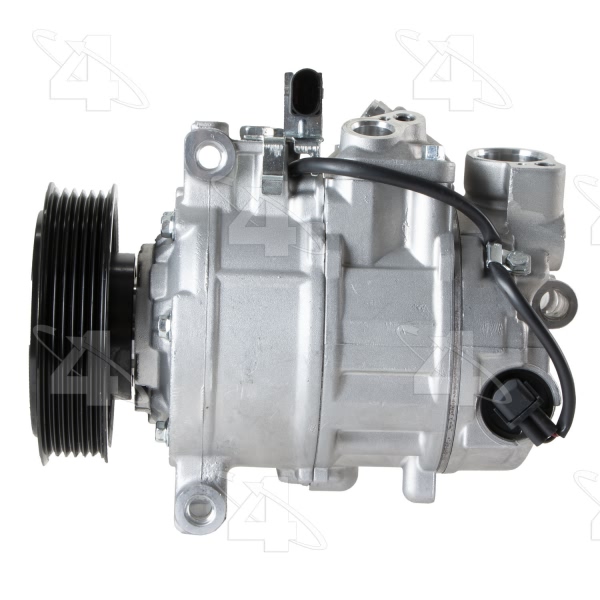

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.53125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 6SEU14C |
ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24635 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24659 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24683 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.53125 |
Pulley Outside Diameter | 4.53125 |
Pulley Ridge Diameter | 4.53125 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361092396 |
Year Make Model | Trim | Engine |
---|---|---|
2017-2018 Audi A4 | All Trims | All Engines |
2017-2018 Audi A4 Quattro | All Trims | All Engines |
2017-2018 Audi A4 allroad | All Trims | All Engines |
2018 Audi A5 | All Trims | All Engines |
2018 Audi A5 Quattro | All Trims | All Engines |
2018 Audi A5 Sportback | All Trims | All Engines |
2017-2018 Audi A6 | All Trims | All Engines |
2017 Audi A6 Quattro | All Trims | 4 Cyl 2.0L |
2018 Audi A6 Quattro | All Trims | All Engines |
2018 Audi Q2 | All Trims | All Engines |
