Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168312 |

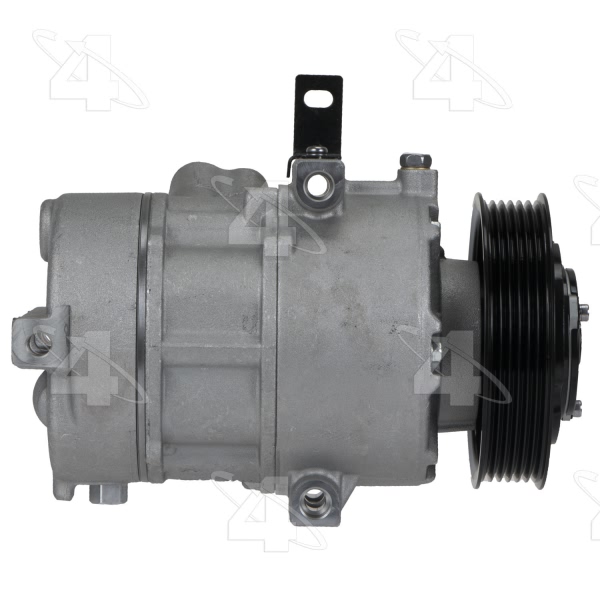

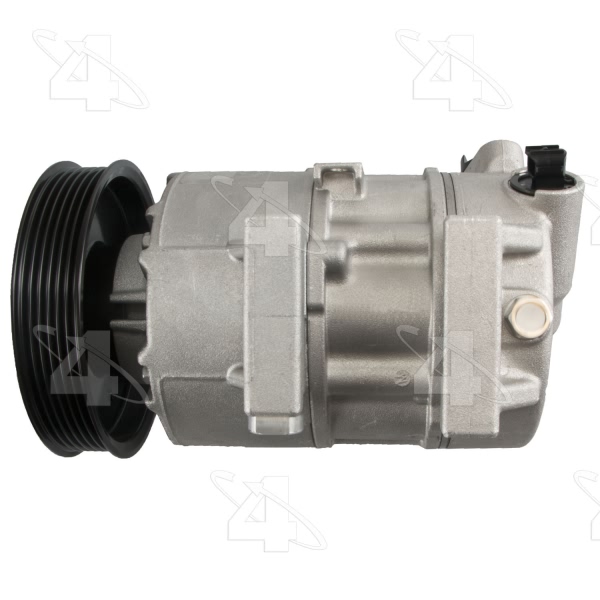

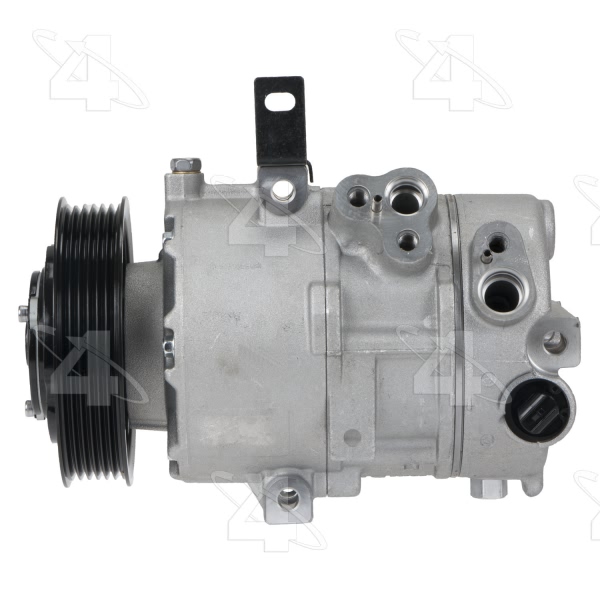

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

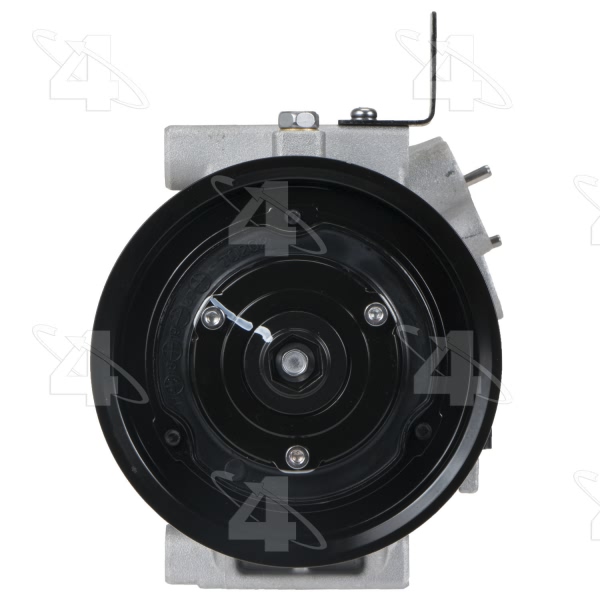

Clutch Maximum Diameter | 4.890625 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | DVE16N |
Distance From Clutch To Mounting Flange | 2.625 |

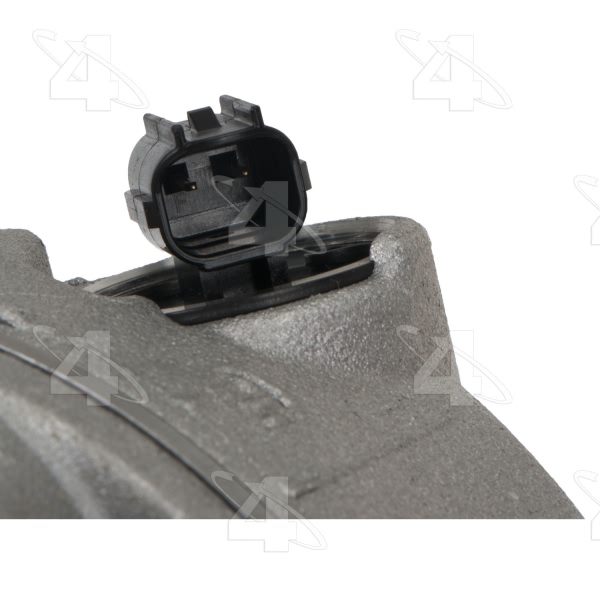

ECV Harness Connector | SE30F, 26899 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24628 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24641 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.890625 |
Pulley Outside Diameter | 4.890625 |
Pulley Ridge Diameter | 4.890625 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361069657 |
Year Make Model | Trim | Engine |
---|---|---|
2016-2017 Hyundai Tucson | All Trims | 4 Cyl 2.0L |
