Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168307 |

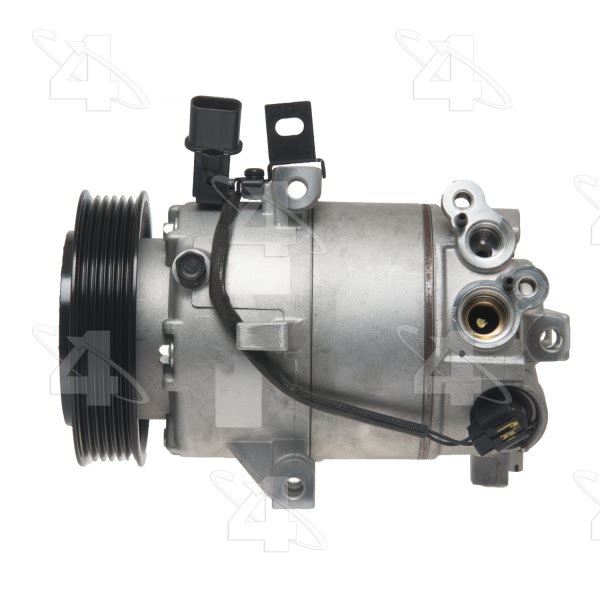

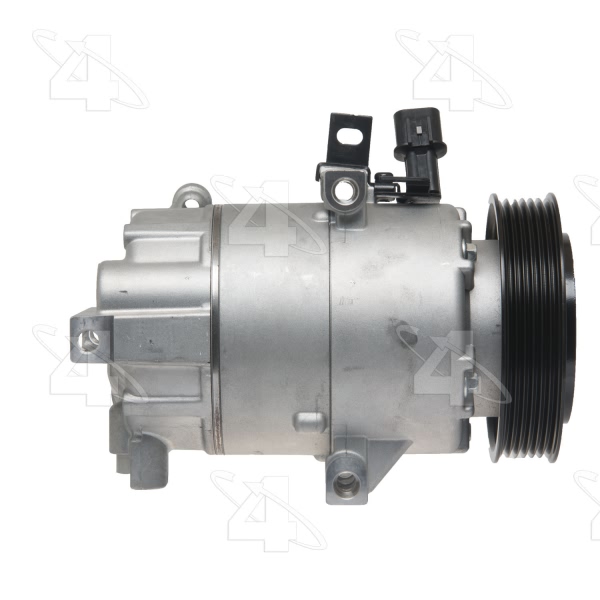

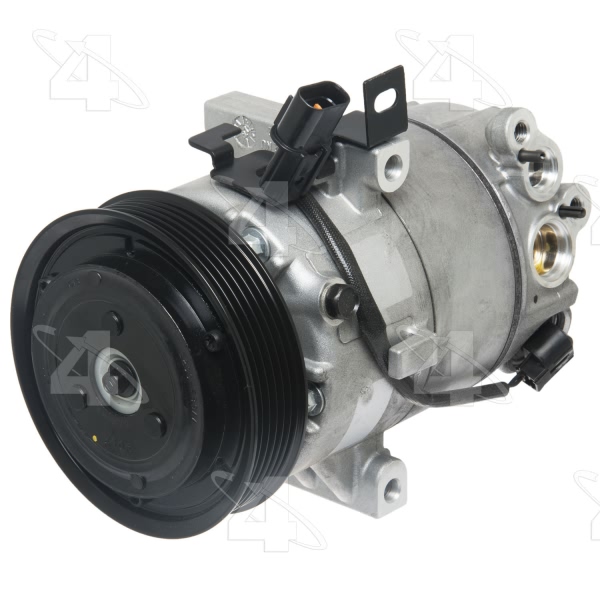

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.515625 |
Coil Clock Position | Lead Wire |
Coil Type | Coil Less |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | VS12M |
Distance From Clutch To Mounting Flange | 2.328125 |

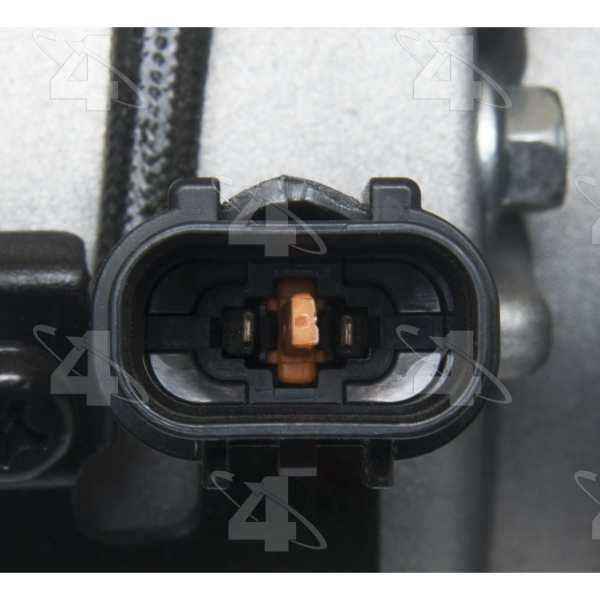

ECV Harness Connector | SE30F, 26899 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24131 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24622 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.515625 |
Pulley Outside Diameter | 4.515625 |
Pulley Ridge Diameter | 4.515625 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361027091 |
Year Make Model | Trim | Engine |
---|---|---|
2013 Kia Soul | All Trims | 4 Cyl 2.0L |
