Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158553 |

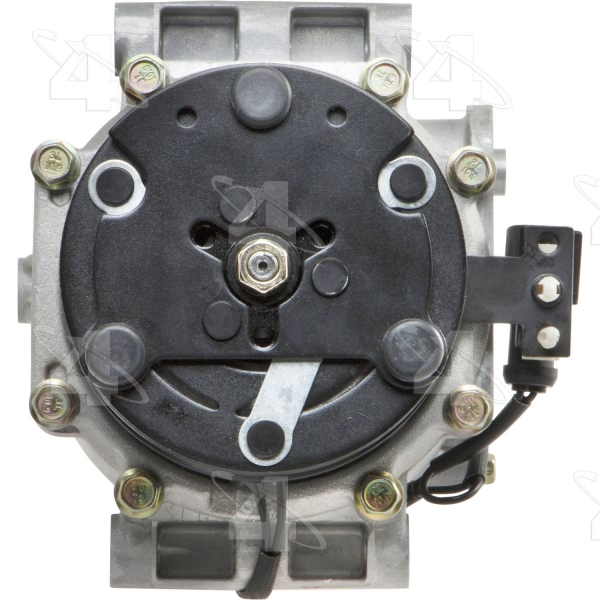

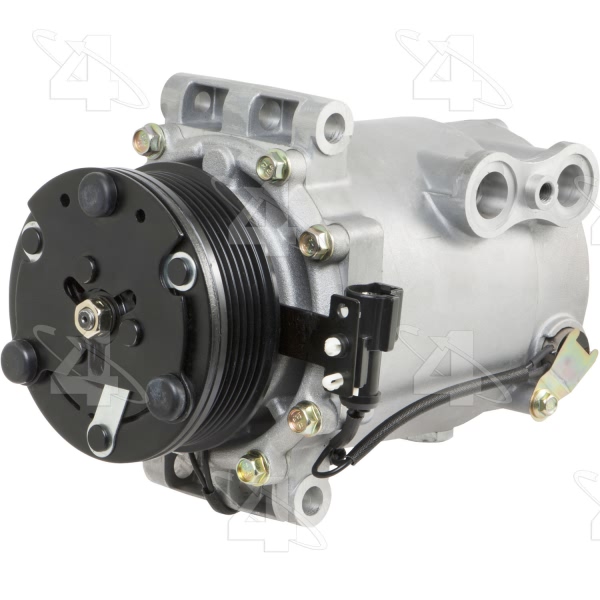

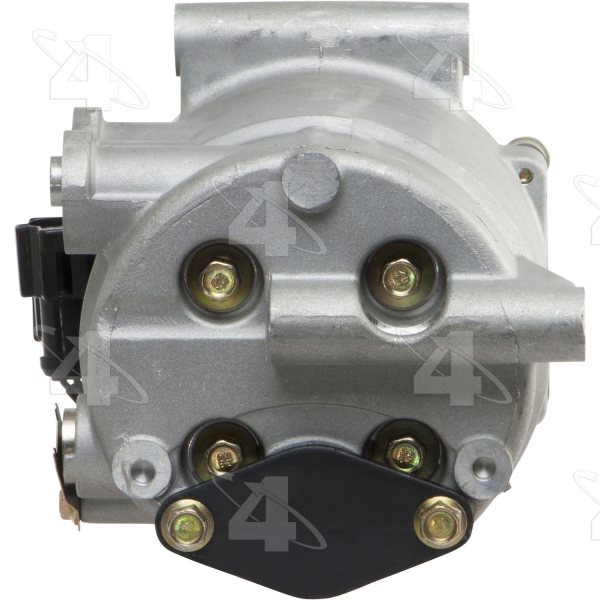

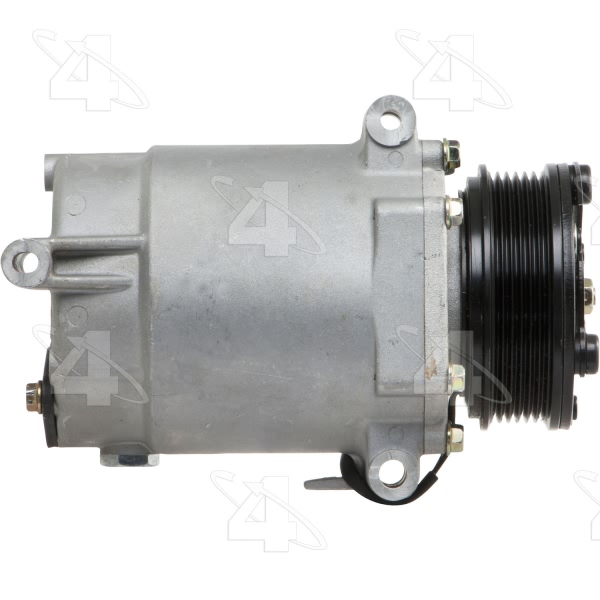

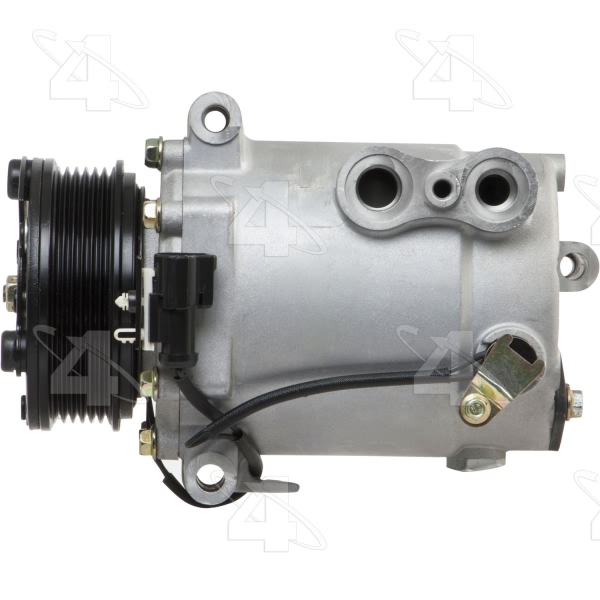

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | Scroll |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.078125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24403] / Slimline Washer |
O-Ring B Quantity | 1 |
Printed Foot Note | With 24.7mm discharge port |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 101.600 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.000 |
Pulley Outside Diameter | 4.000 |
Pulley Ridge Diameter | 4.000 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | Heat Sensor |
Terminal Type | Pin |
UPC | 096361617537 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Saturn Vue | All Trims | 6 Cyl 3.0L |
