Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158377 |

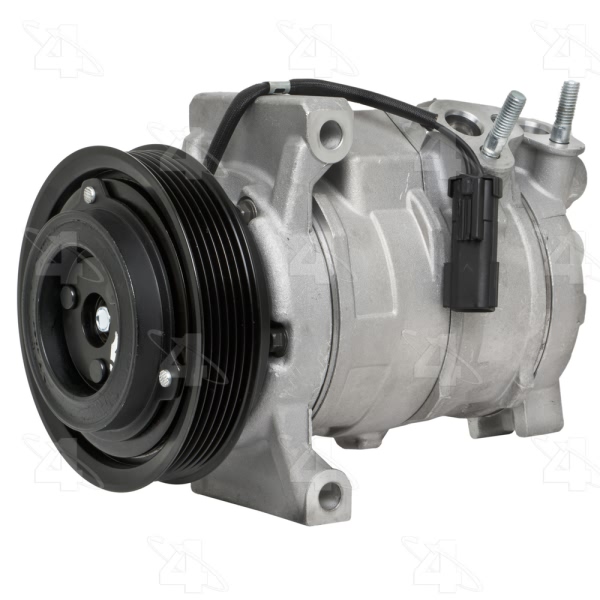

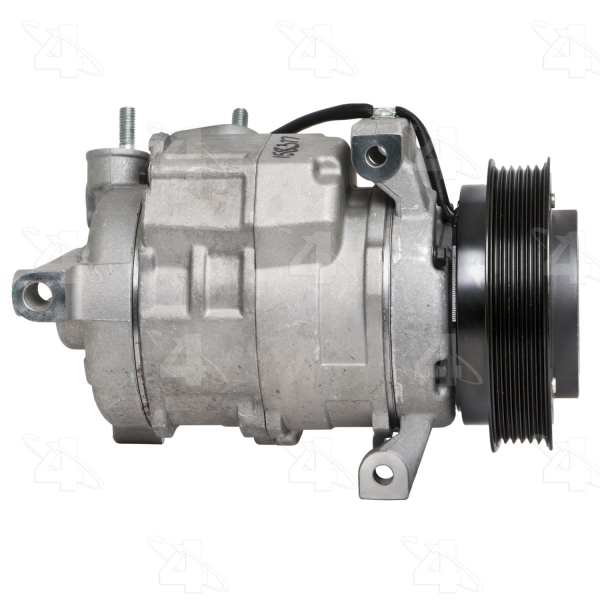

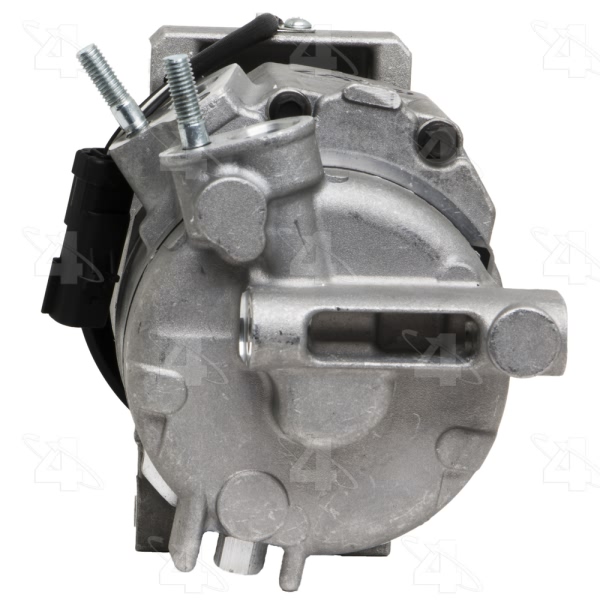

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.9375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10SRE18C |

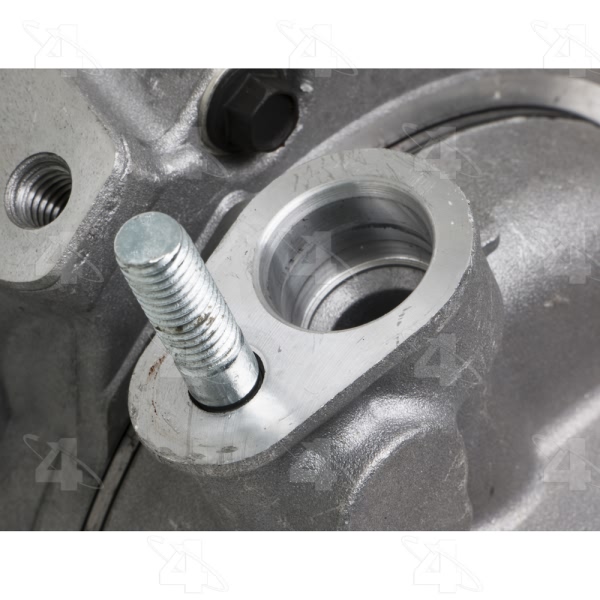

Discharge Port Type | O-Ring / Gasket |
Distance From Clutch To Mounting Flange | 1.546875 |
Mount Distance MM | 39.370 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24068] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 125.222 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.9375 |
Pulley Outside Diameter | 4.9375 |
Pulley Ridge Diameter | 4.9375 |
Refrigerant Type | R134a |

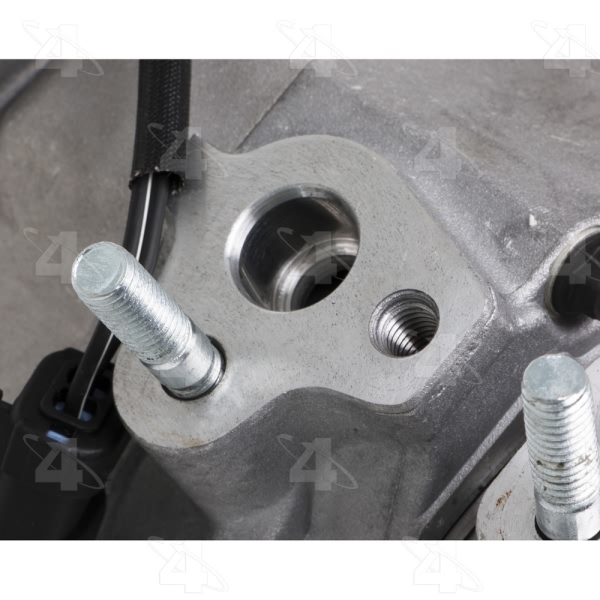

Suction Port Type | O-Ring / Gasket |

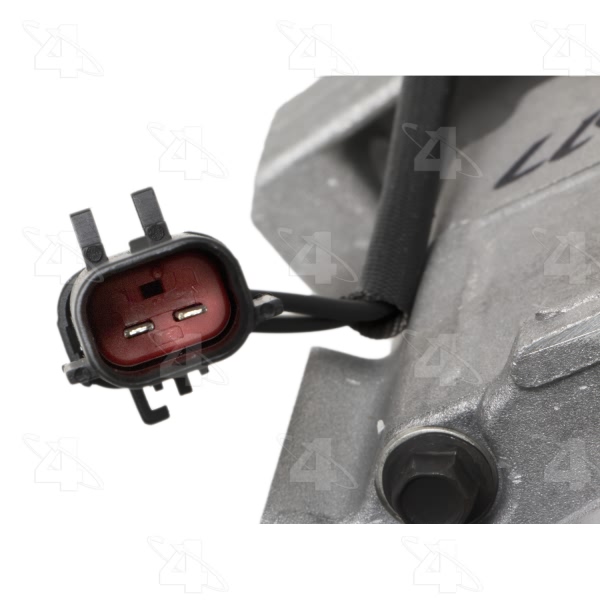

Terminal Type | Pin |
UPC | 096361623897 |
Year Make Model | Trim | Engine |
---|---|---|
2009-2010 Dodge Ram 1500 | All Trims | 8 Cyl 5.7L |
2009-2010 Dodge Ram 2500 | All Trims | 8 Cyl 5.7L |
2009 Dodge Ram 3500 | All Trims | 8 Cyl 5.7L |
2011-2012 Ram 1500 | All Trims | 8 Cyl 5.7L |
2019 Ram 1500 | All Trims | 8 Cyl 5.7L |
2019 Ram 1500 Classic | All Trims | 8 Cyl 5.7L |
2010-2019 Ram 2500 | All Trims | 8 Cyl 5.7L |
2014-2019 Ram 2500 | All Trims | 8 Cyl 6.4L |
2011-2018 Ram 3500 | All Trims | 8 Cyl 5.7L |
2014-2019 Ram 3500 | All Trims | 8 Cyl 6.4L |
