Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158375 |

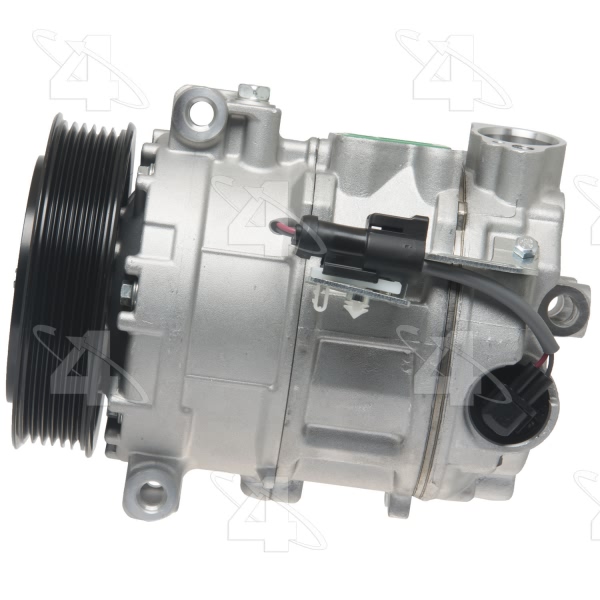

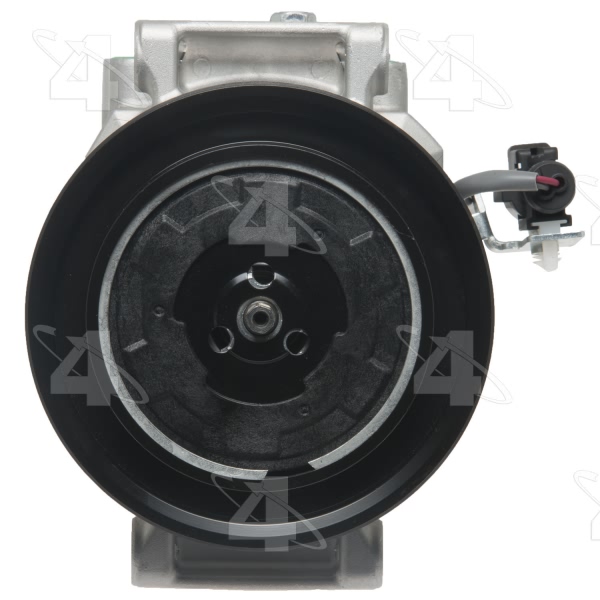

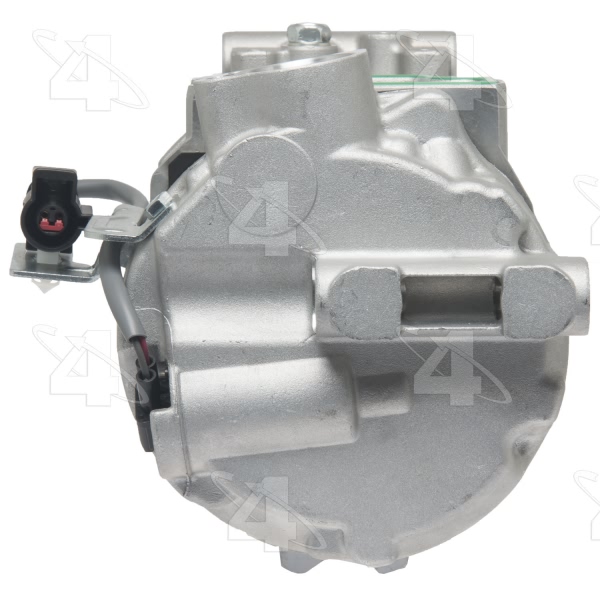

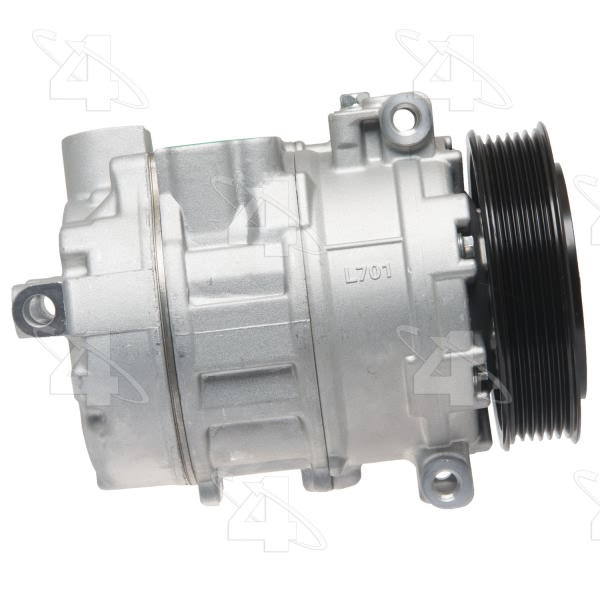

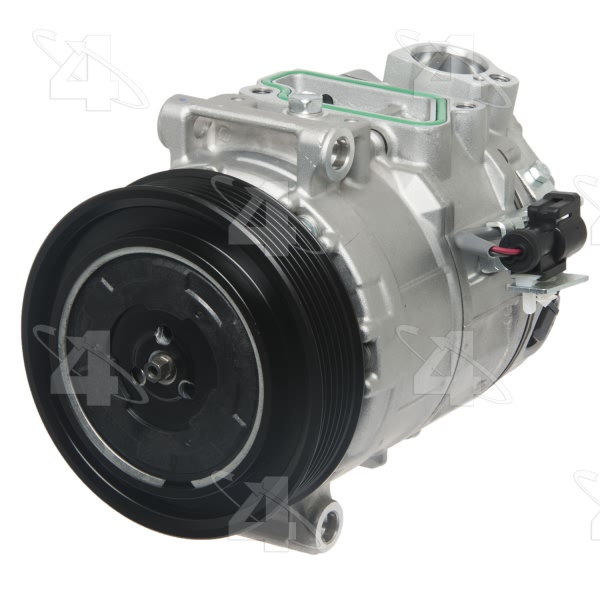

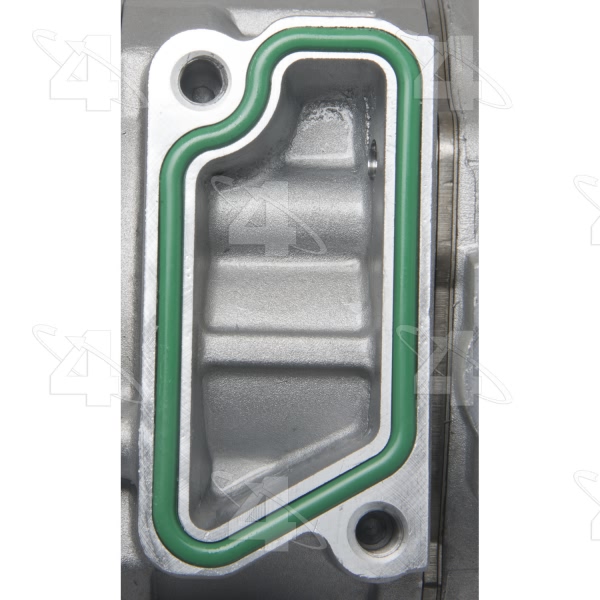

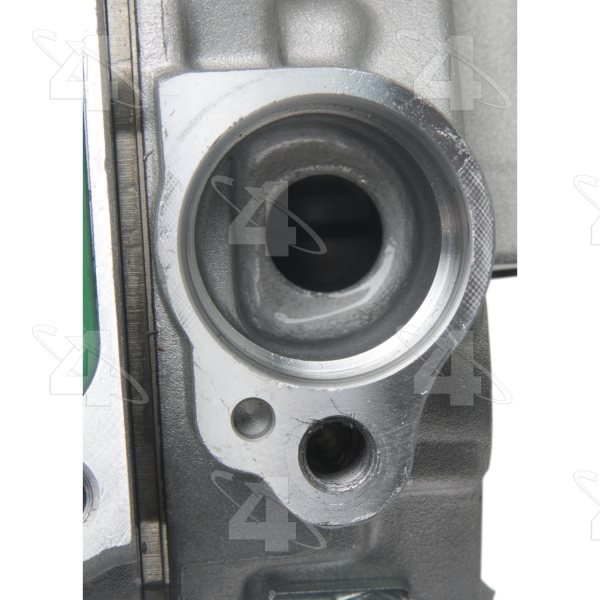

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Lead Wire |
Coil Type | Coil Less |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEU17C |
Distance From Clutch To Mounting Flange | 0.758 |

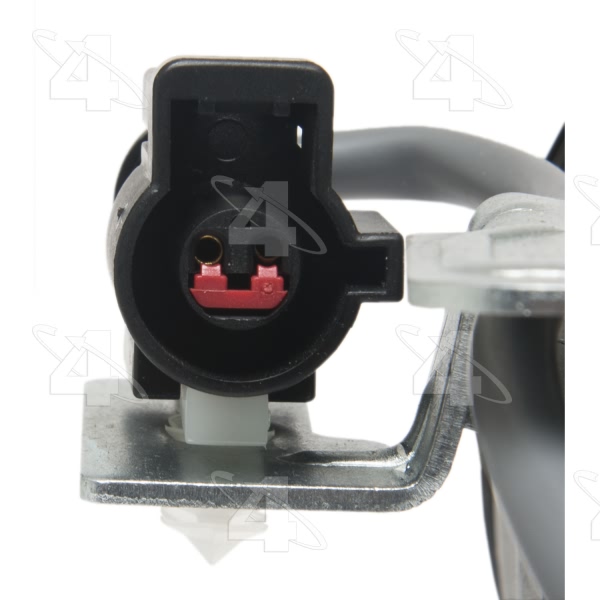

ECV Harness Connector | SE25F, 26897 Female / / SE23M, 26883 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24635 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24659 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24683 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361027039 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2009 Jaguar Super V8 | All Trims | All Engines |
2004-2009 Jaguar Vanden Plas | All Trims | All Engines |
2004-2009 Jaguar XJ8 | All Trims | All Engines |
2004-2009 Jaguar XJR | All Trims | All Engines |
2007-2009 Jaguar XK | All Trims | All Engines |
2007-2009 Jaguar XKR | All Trims | All Engines |
