Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158374 |

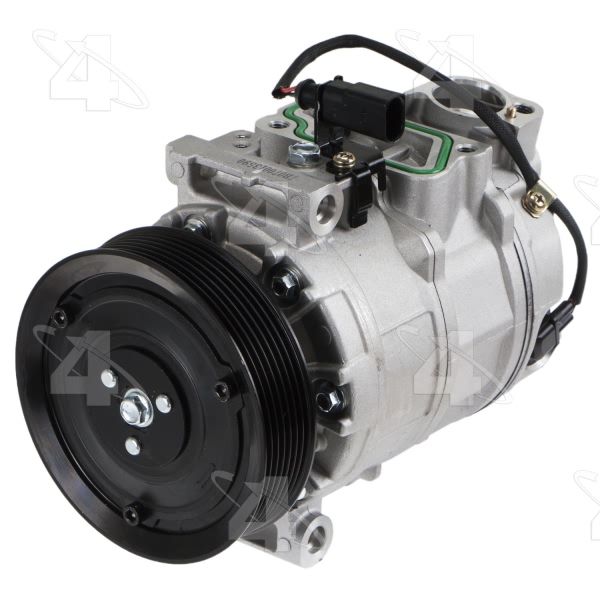

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.53125 |

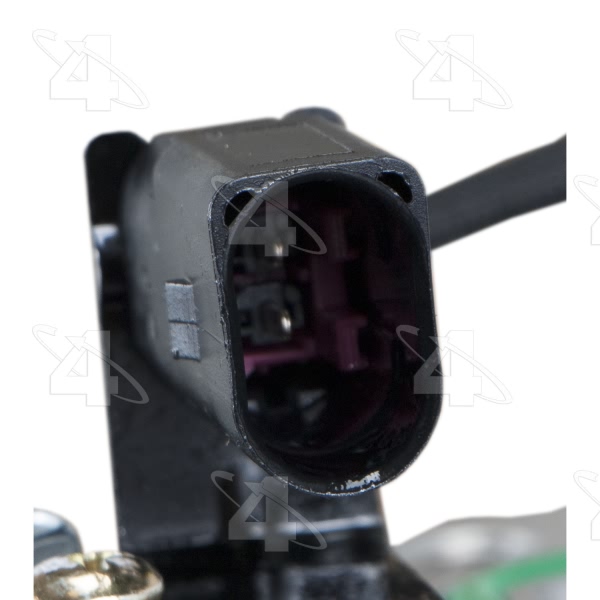

Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEU16C |
Distance From Clutch To Mounting Flange | 1.234375 |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24635 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24659 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24683 |
O-Ring C Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.53125 |
Pulley Outside Diameter | 4.53125 |
Pulley Ridge Diameter | 4.53125 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361031043 |
Year Make Model | Trim | Engine |
---|---|---|
2004 Audi A8 Quattro | All Trims | All Engines |
2005-2006 Audi A8 Quattro | All Trims | 8 Cyl 4.2L |
2004-2006 Volkswagen Phaeton | All Trims | 8 Cyl 4.2L |
