Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158366 |

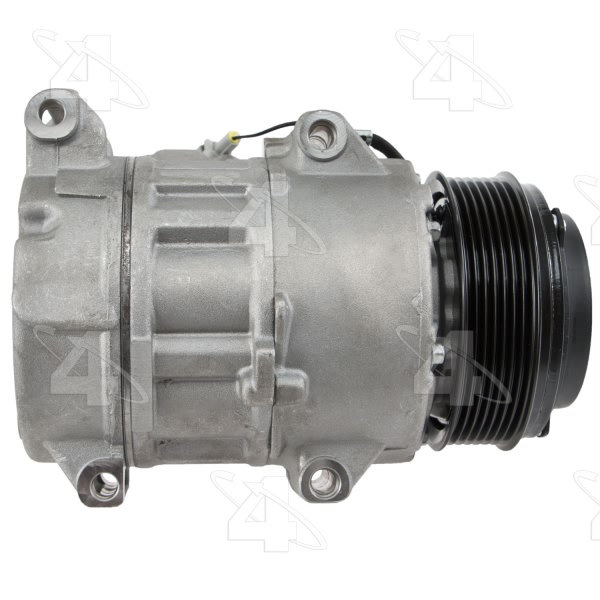

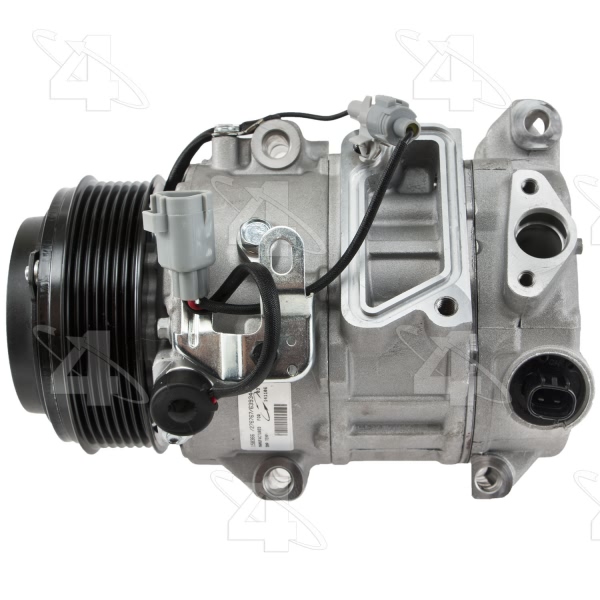

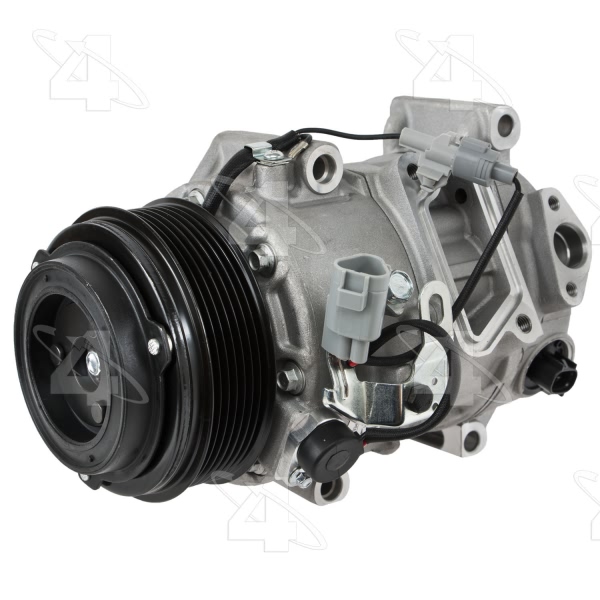

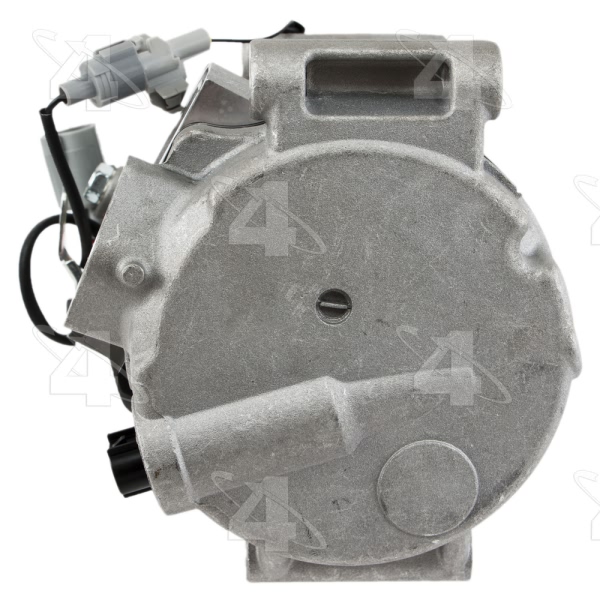

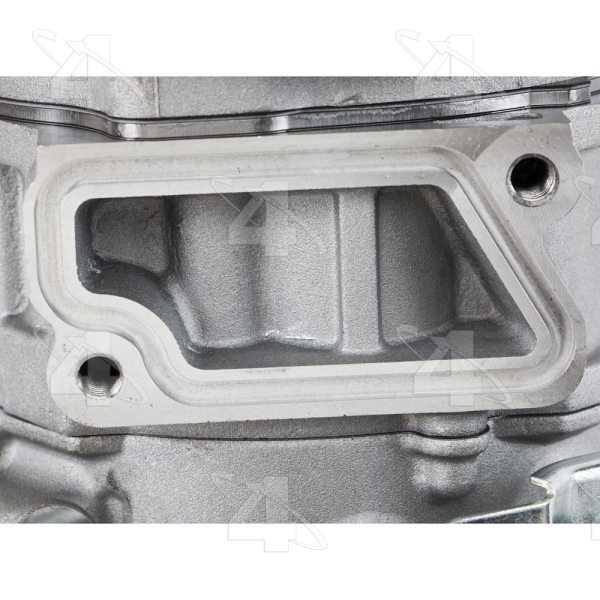

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.375 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEH17C |

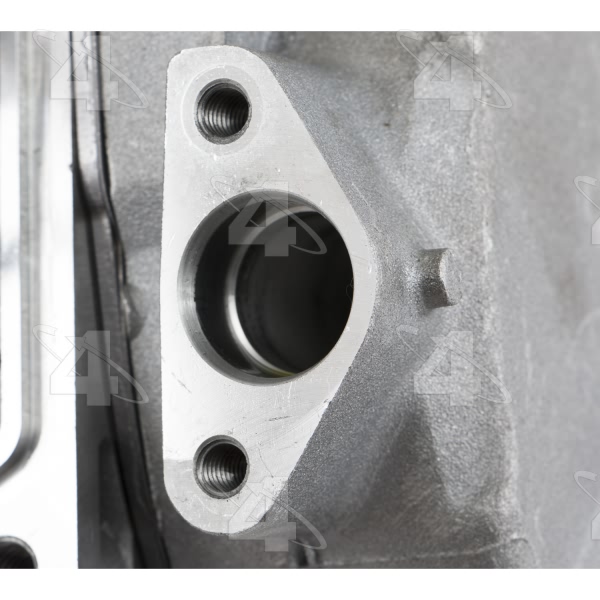

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.59375 |

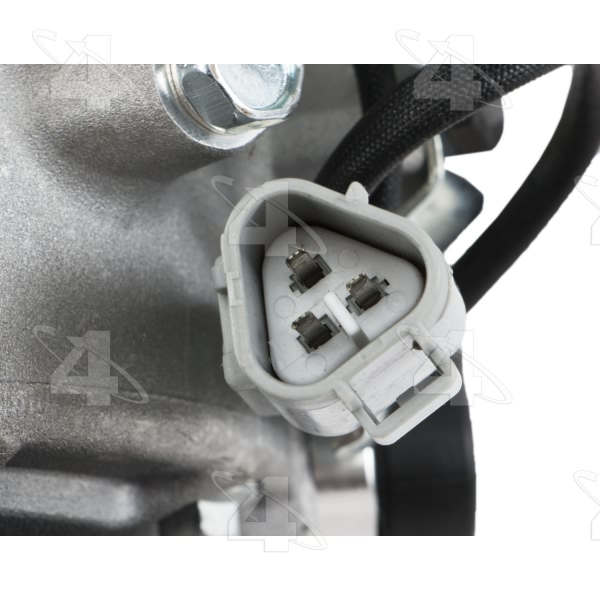

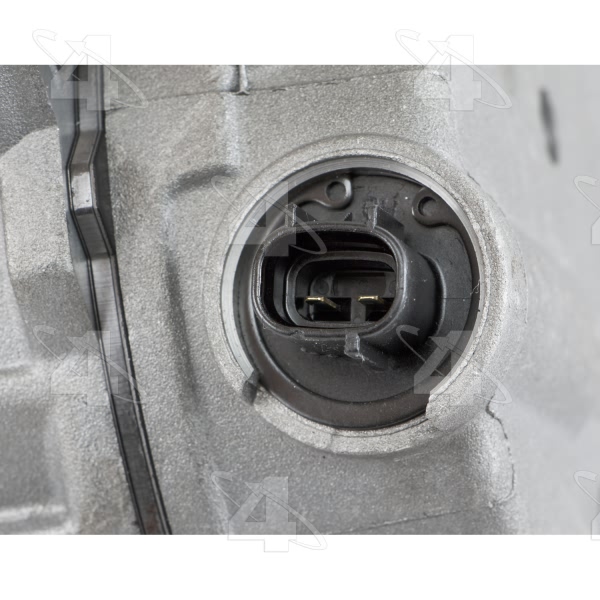

ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
Mount Distance MM | 40.640 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |

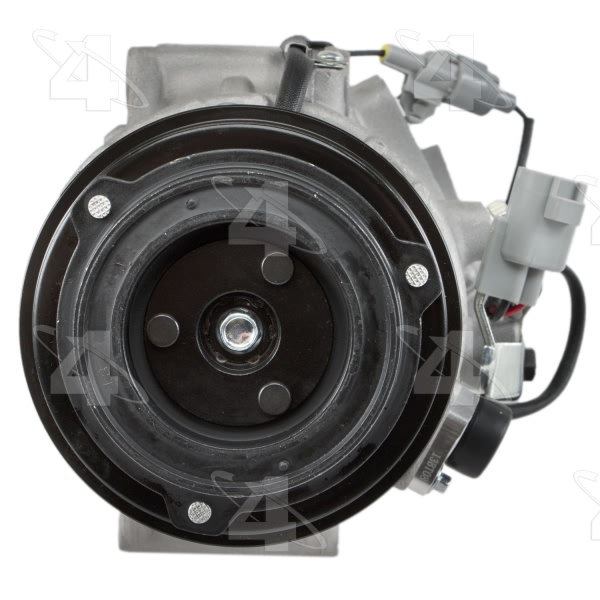

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 111.125 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.375 |
Pulley Outside Diameter | 4.375 |
Pulley Ridge Diameter | 4.375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Control Valve |
Terminal Type | Pin |
UPC | 096361622166 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2013 Lexus ES350 | All Trims | All Engines |
2007-2010 Toyota Sienna | All Trims | All Engines |
2010-2015 Toyota Venza | All Trims | 6 Cyl 3.5L |
