Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158362 |

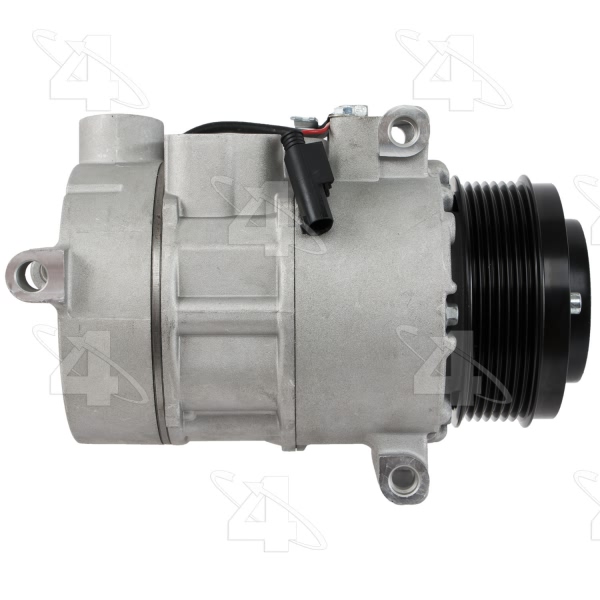

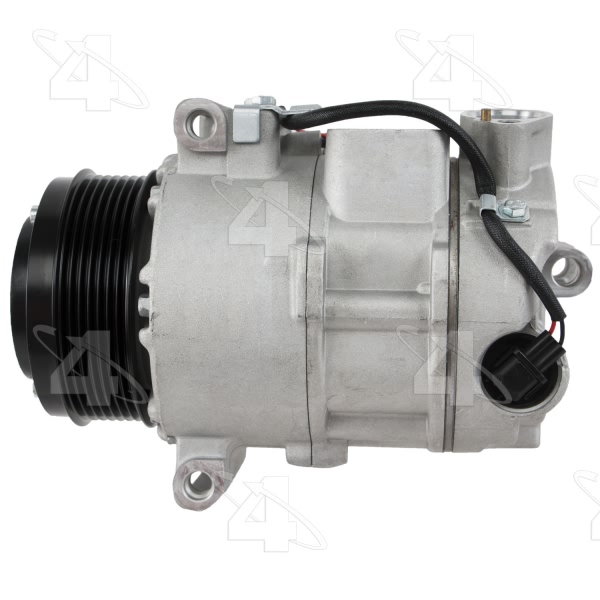

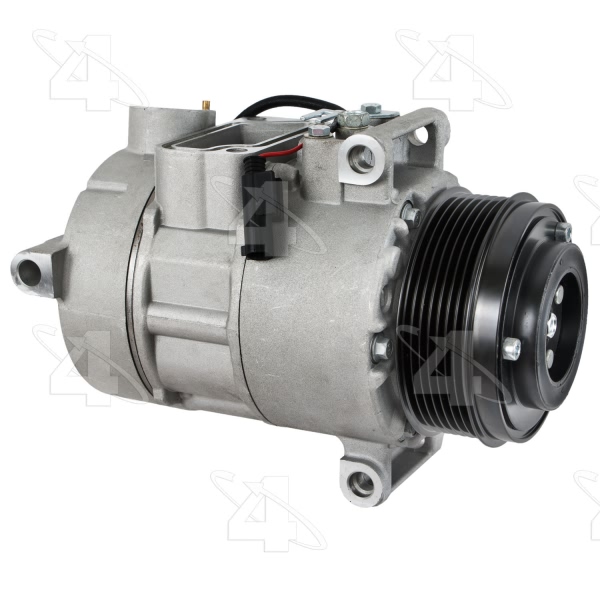

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

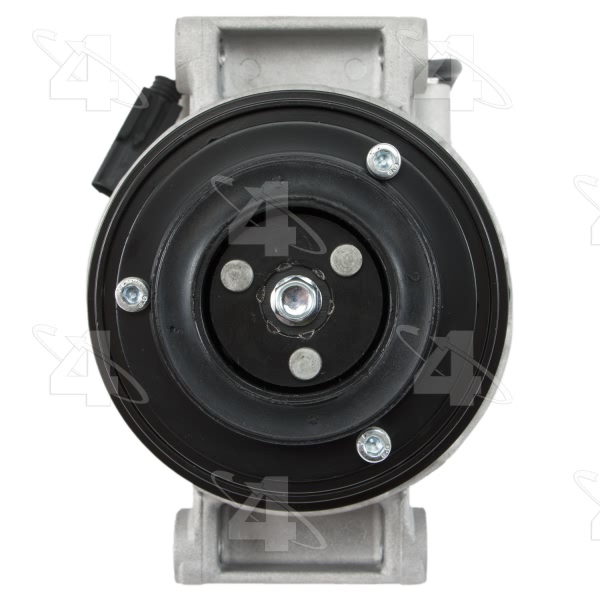

Clutch Maximum Diameter | 3.750 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SE16C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.65625 |

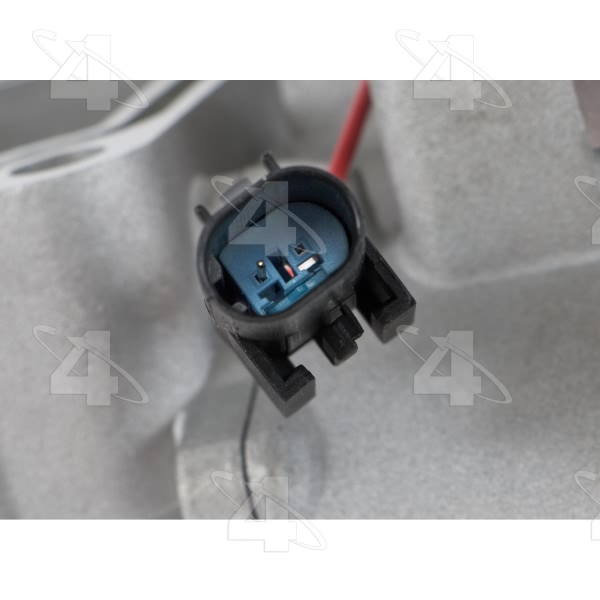

ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
Mount Distance MM | 16.510 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 95.250 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 3.750 |
Pulley Outside Diameter | 3.750 |
Pulley Ridge Diameter | 3.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Butt Connector |
UPC | 096361617094 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Mercedes-Benz E300 | All Trims | All Engines |
2007-2009 Mercedes-Benz E320 | All Trims | All Engines |
