Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158359 |

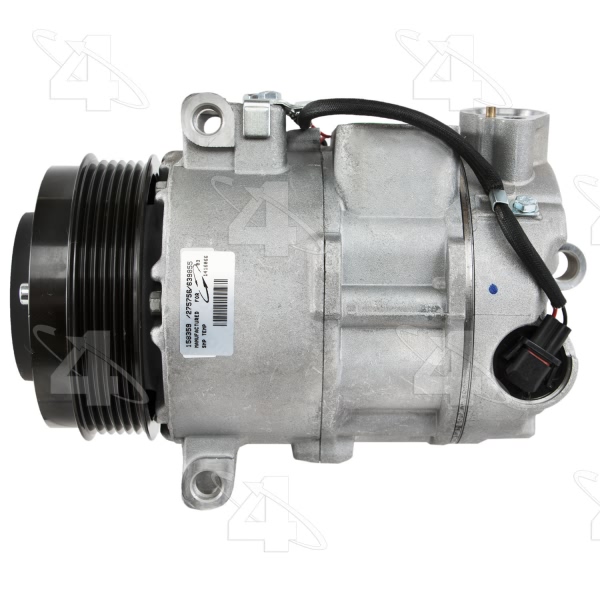

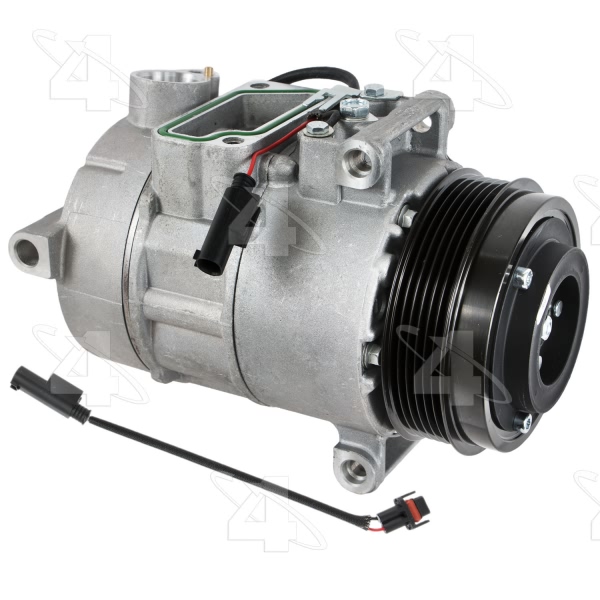

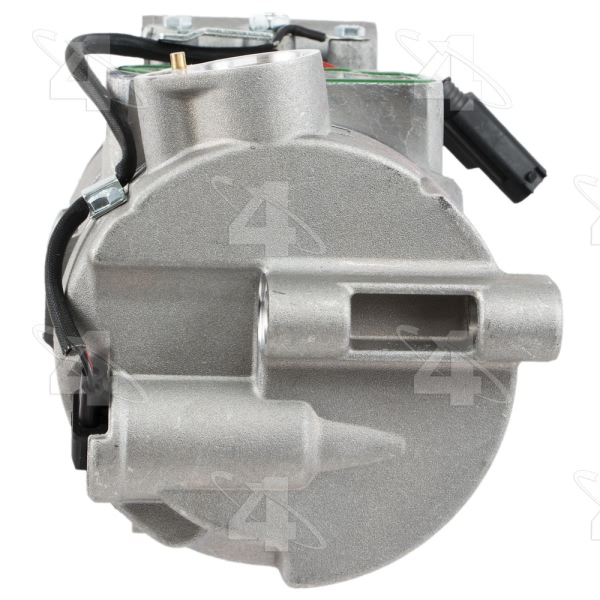

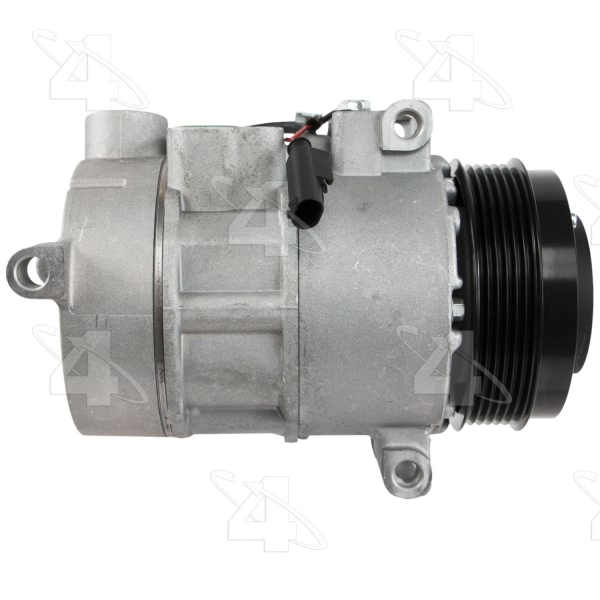

Part Description | A C Compressor With Clutch |

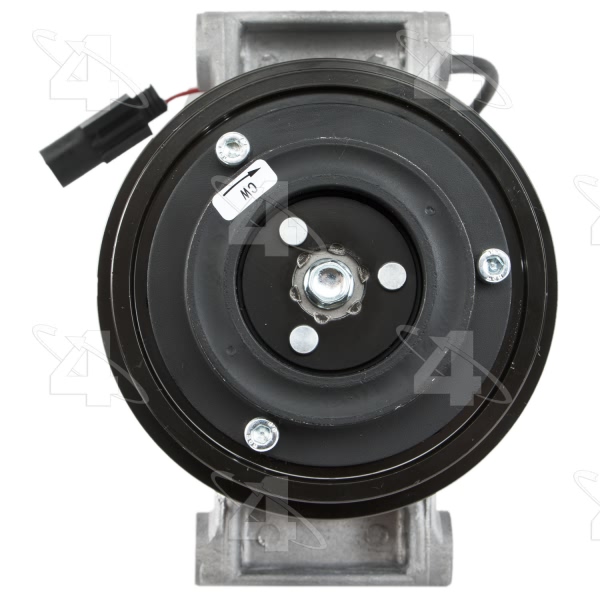

Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU16C |

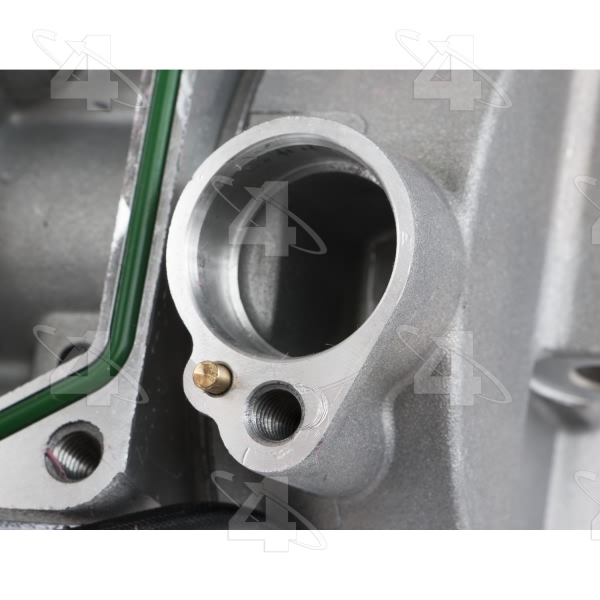

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.640625 |

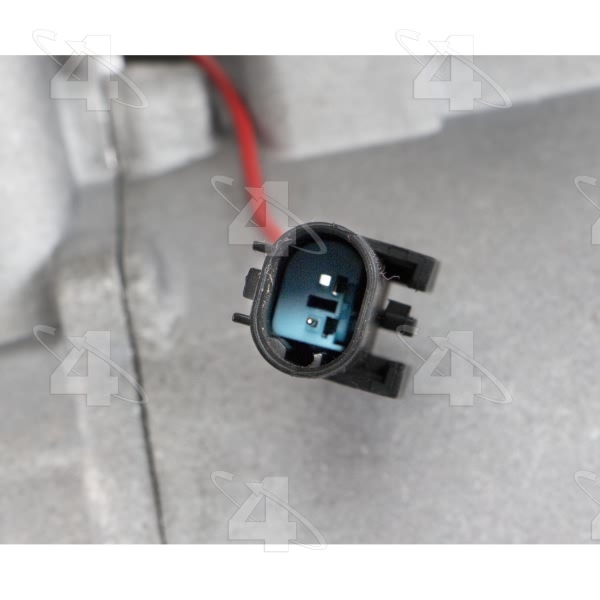

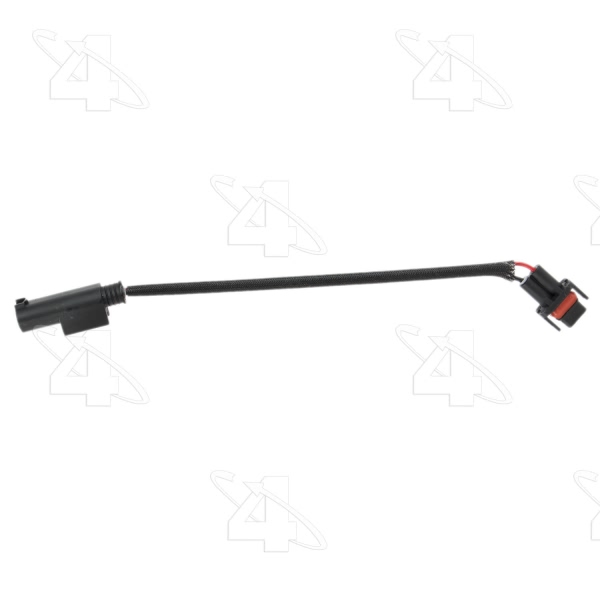

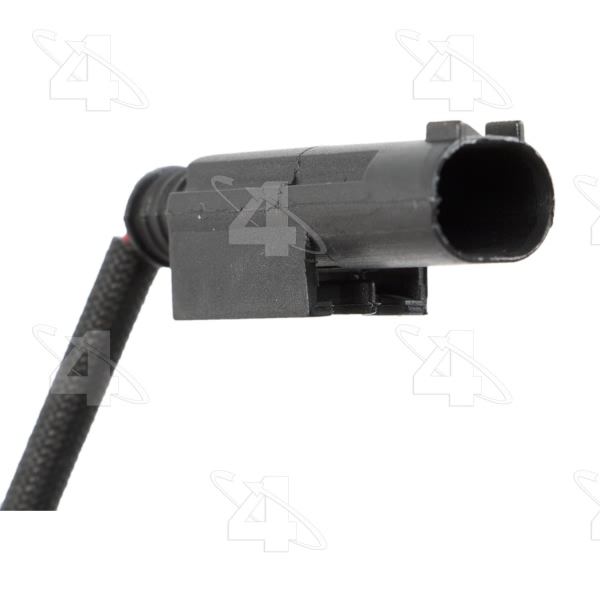

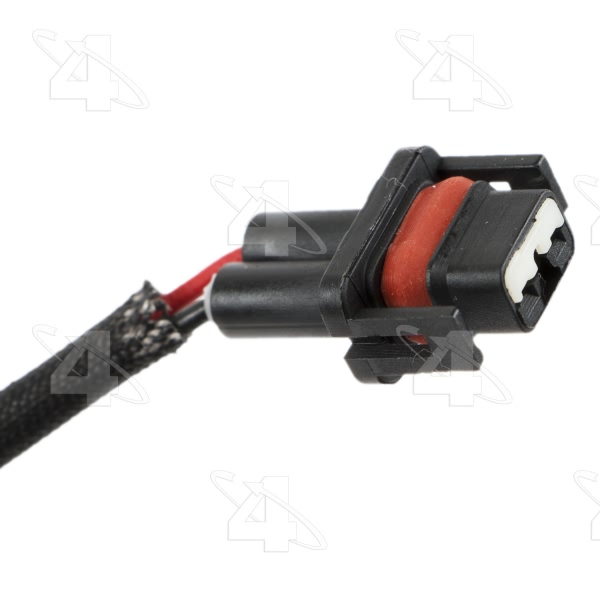

ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
Mount Distance MM | 16.256 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |

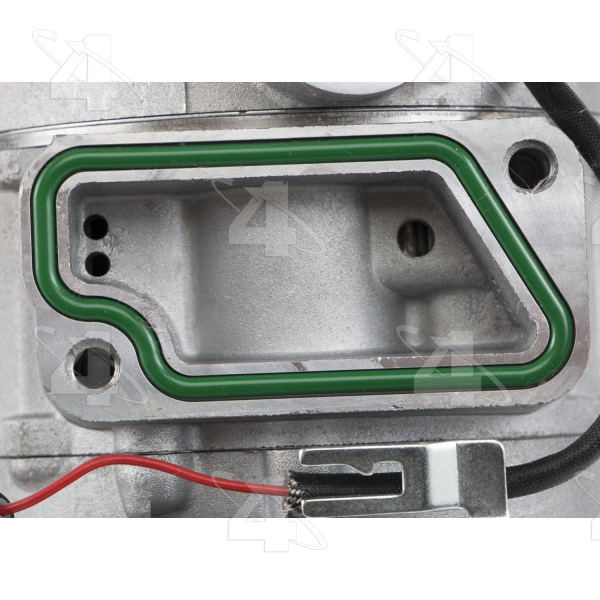

O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.982 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361617049 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Mercedes-Benz C280 | All Trims | All Engines |
2008-2009 Mercedes-Benz C300 | All Trims | All Engines |
2010 Mercedes-Benz C300 | All Trims | 6 Cyl 3.0L |
2008-2009 Mercedes-Benz C350 | All Trims | All Engines |
2008-2010 Mercedes-Benz GL450 | All Trims | All Engines |
2009-2010 Mercedes-Benz GL550 | All Trims | All Engines |
2006 Mercedes-Benz ML350 | All Trims | All Engines |
2006 Mercedes-Benz ML500 | All Trims | All Engines |
2006 Mercedes-Benz R350 | All Trims | All Engines |
2010 Mercedes-Benz R350 | All Trims | 6 Cyl 3.5L |
