Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158338 |

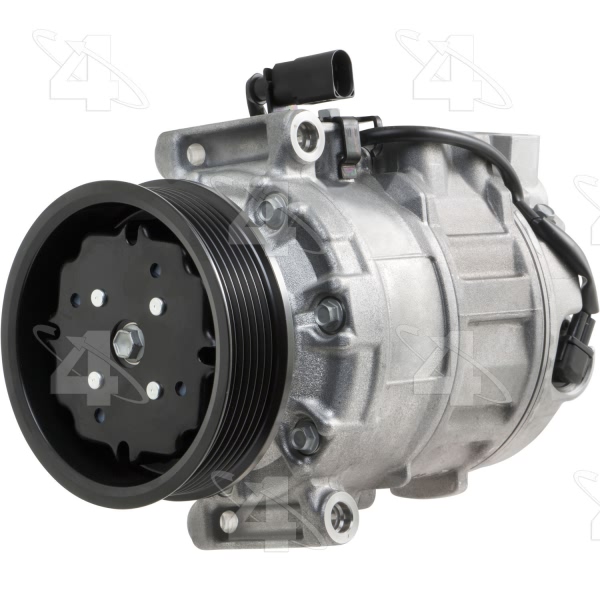

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.28125 |
Coil Clock Position | NR |
Coil Type | Coil Less |
Coil Voltage | NR |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEU17C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.484375 |
ECV Harness Connector | SE35F, 26901 Female / / SE35M, 26887 Male |
Mount Distance MM | 37.592 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 108.712 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.28125 |
Pulley Outside Diameter | 4.28125 |
Pulley Ridge Diameter | 4.28125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361622159 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 Audi Q7 | All Trims | 6 Cyl 3.6L |
2006 Volkswagen Touareg | All Trims | 6 Cyl 3.2L |
2007-2017 Volkswagen Touareg | All Trims | 6 Cyl 3.6L |
2017 Volkswagen Touareg | All Trims | 6 Cyl 3.0L |
2017 Volkswagen Touareg | All Trims | 8 Cyl 4.2L |
