Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158334 |

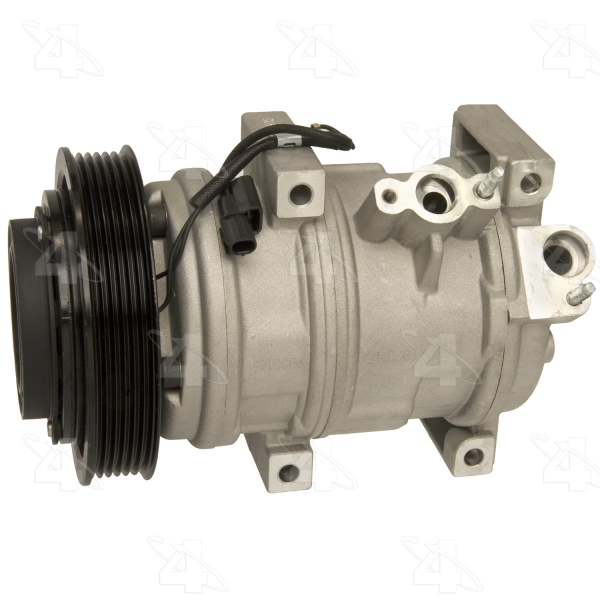

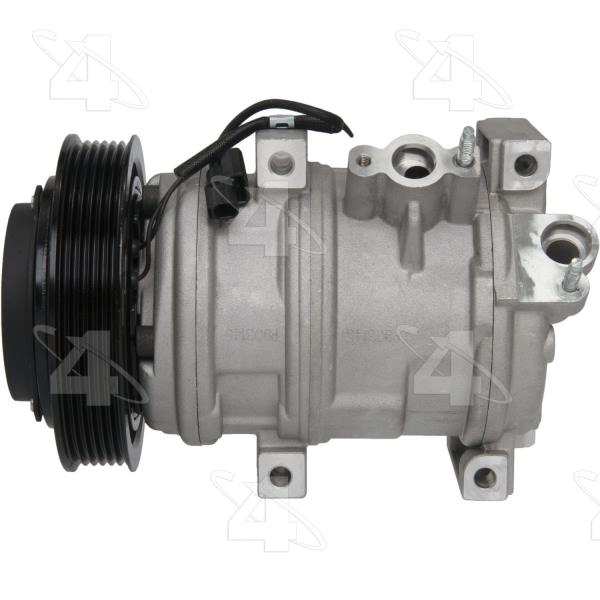

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.1875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10SR17C |

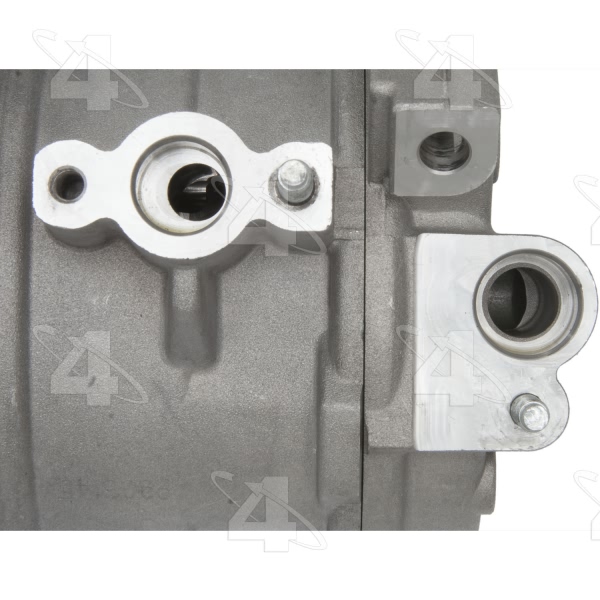

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.09375 |
Mount Distance MM | 53.340 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 131.750 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.1875 |
Pulley Outside Diameter | 5.1875 |
Pulley Ridge Diameter | 5.1875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

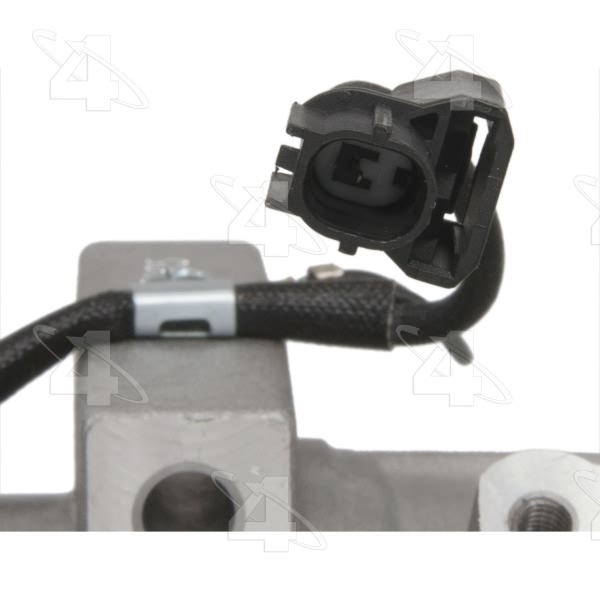

Terminal Type | Pin |
UPC | 096361616943 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2013 Acura MDX | All Trims | All Engines |
2010-2013 Acura ZDX | All Trims | All Engines |
2008-2017 Honda Odyssey | All Trims | All Engines |
2008-2015 Honda Pilot | All Trims | All Engines |
2009-2014 Honda Ridgeline | All Trims | All Engines |
