Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158327 |

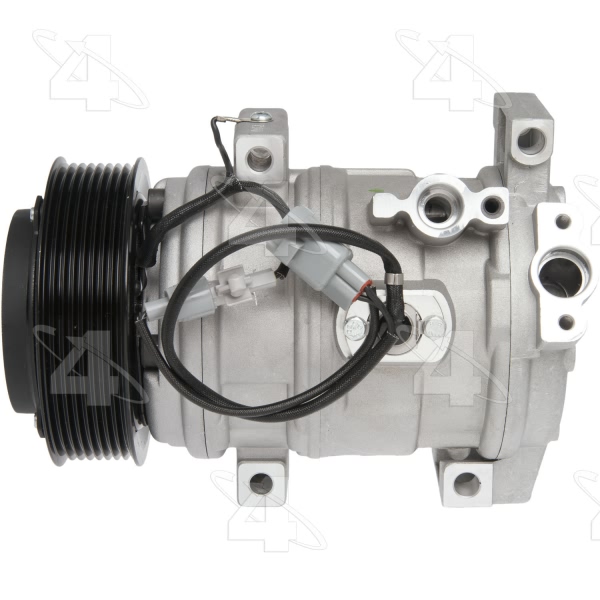

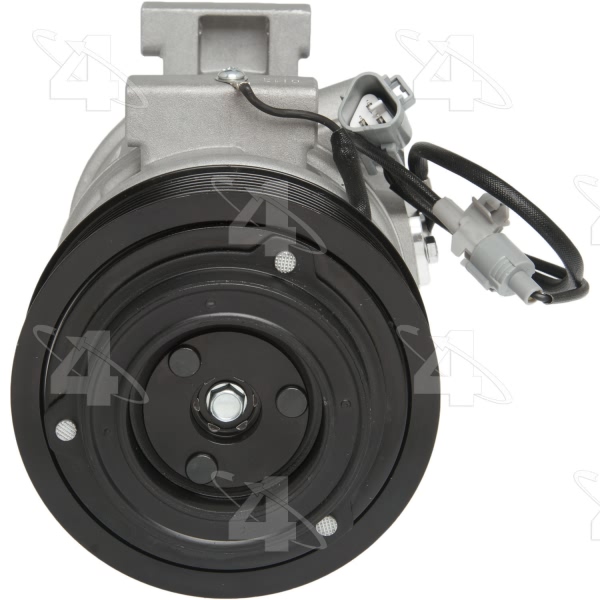

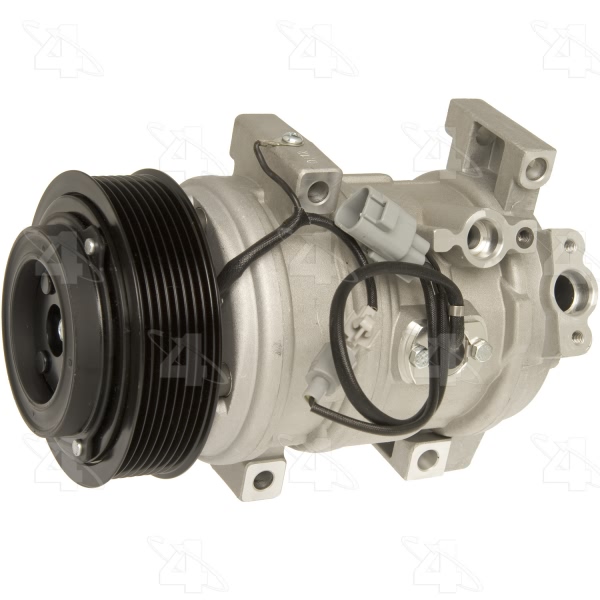

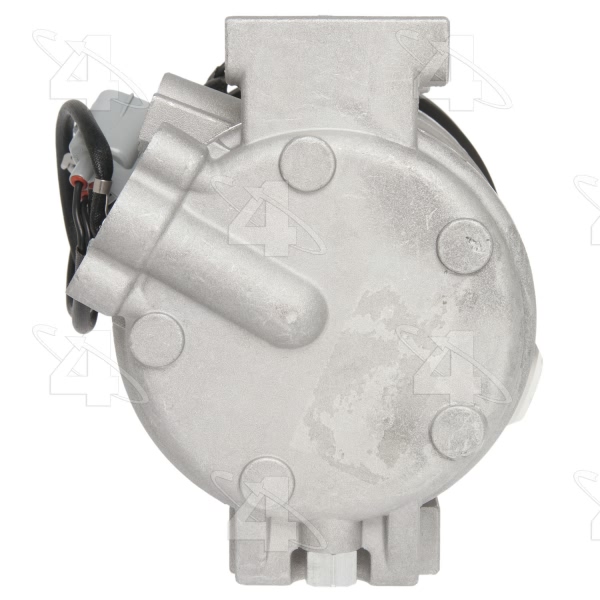

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10SR19C |

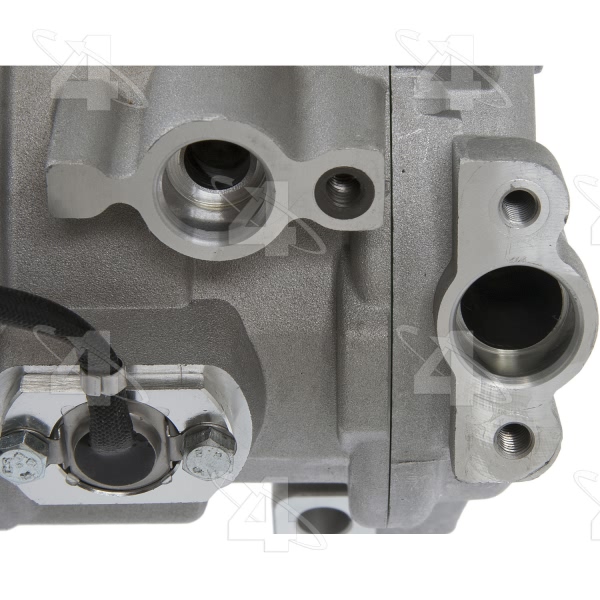

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.640625 |
Mount Distance MM | 41.656 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24661] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24681] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 117.475 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Switch |

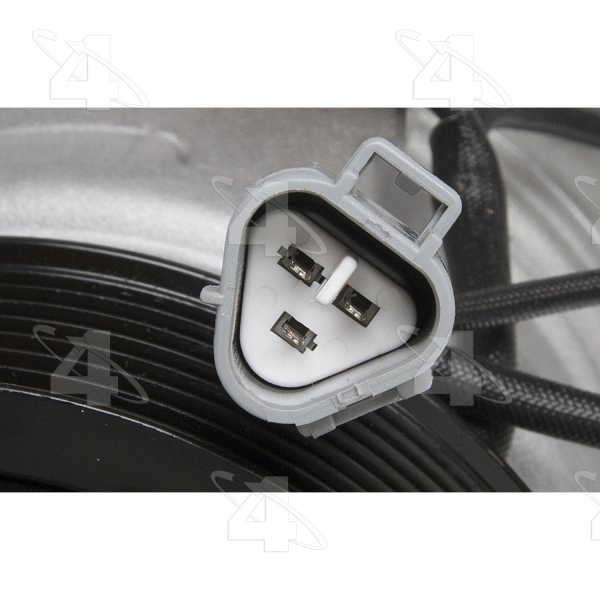

Terminal Type | Pin |
UPC | 096361617100 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2018 Lexus GX460 | All Trims | All Engines |
2008-2011 Lexus LX570 | All Trims | All Engines |
2013-2018 Lexus LX570 | All Trims | All Engines |
2008-2011 Toyota Land Cruiser | All Trims | All Engines |
2013-2018 Toyota Land Cruiser | All Trims | All Engines |
2008-2010 Toyota Sequoia | All Trims | 8 Cyl 5.7L |
2010 Toyota Sequoia | All Trims | 8 Cyl 4.6L |
2011-2018 Toyota Sequoia | All Trims | All Engines |
