Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158319 |

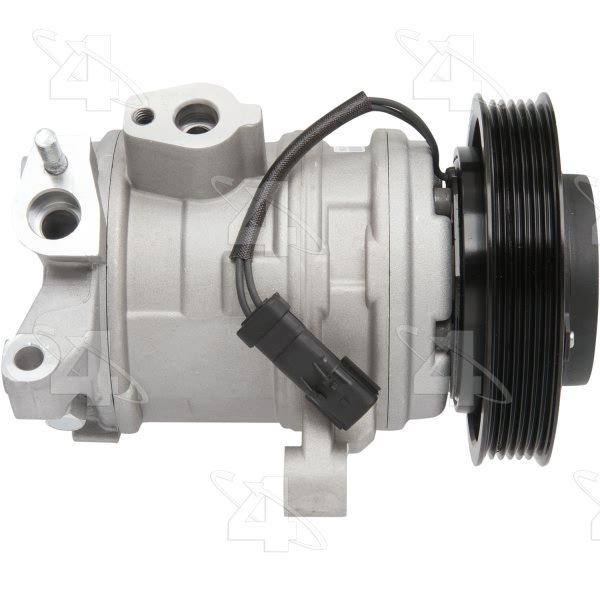

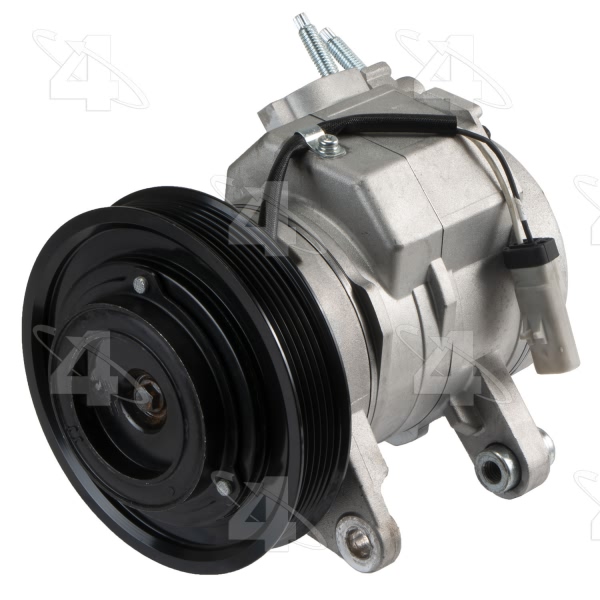

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10SR15E |

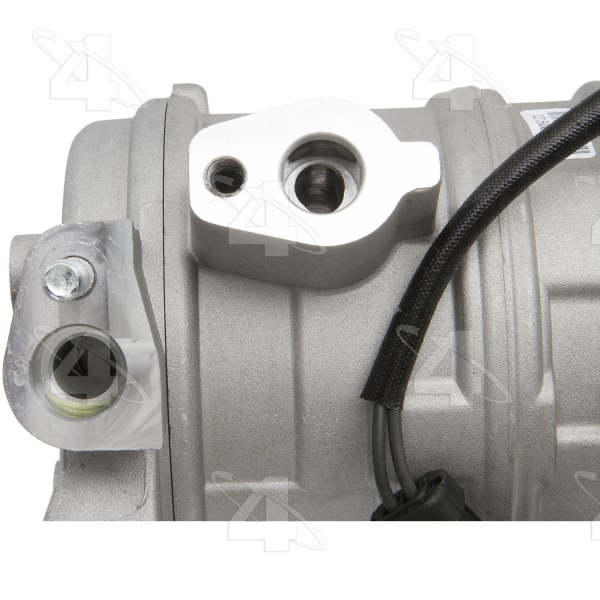

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.125 |
Mount Distance MM | 53.848 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24068] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

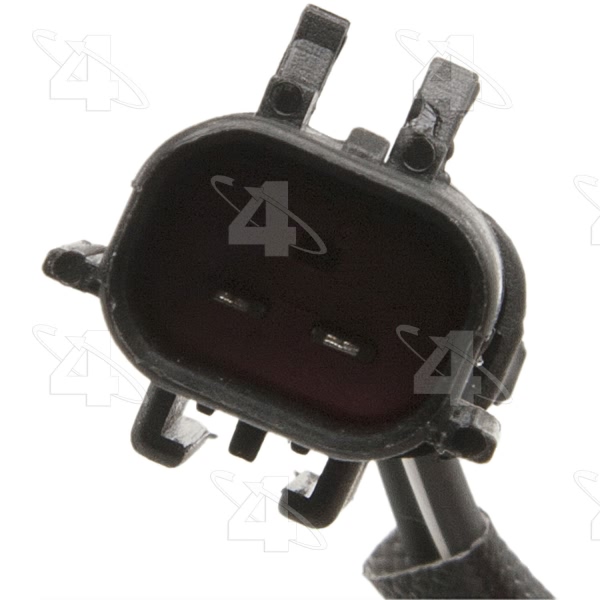

Terminal Type | Pin |
UPC | 096361616875 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2011 Dodge Dakota | All Trims | All Engines |
2008-2010 Dodge Ram 1500 | All Trims | 6 Cyl 3.7L |
2008-2010 Dodge Ram 1500 | All Trims | 8 Cyl 4.7L |
2010 Dodge Ram 1500 | All Trims | 8 Cyl 5.7L |
2008-2009 Dodge Ram 2500 | All Trims | 8 Cyl 4.7L |
2010 Dodge Ram 2500 | All Trims | 8 Cyl 5.7L |
2008-2010 Jeep Commander | All Trims | 6 Cyl 3.7L |
2008-2010 Jeep Commander | All Trims | 8 Cyl 4.7L |
2008-2010 Jeep Grand Cherokee | All Trims | 6 Cyl 3.7L |
2008-2010 Jeep Grand Cherokee | All Trims | 8 Cyl 4.7L |
