Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158300 |

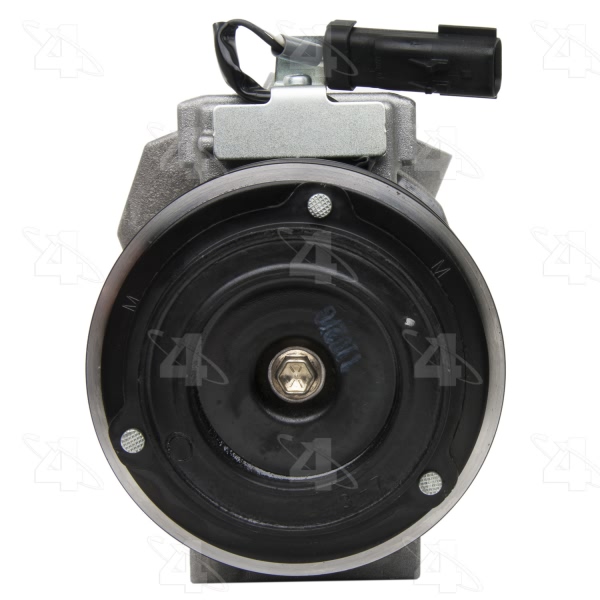

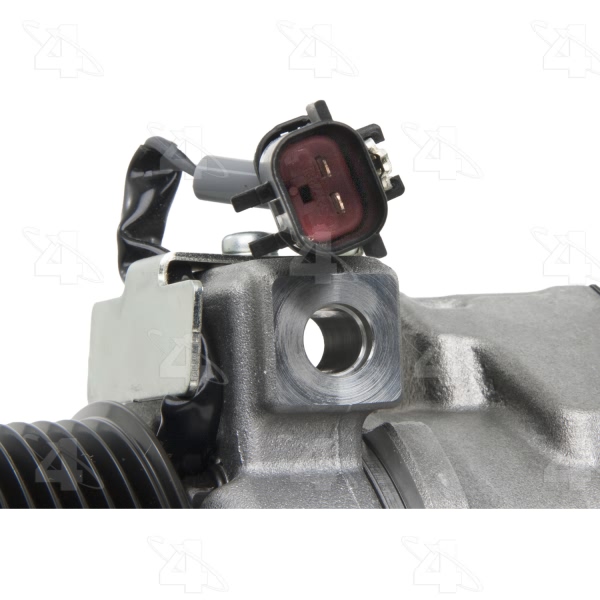

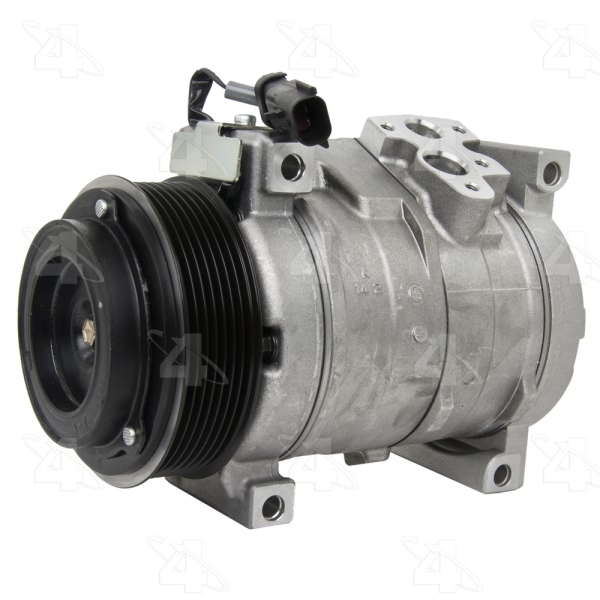

Part Description | A C Compressor With Clutch |
Belt Width IN | 1.1875 |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S17C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.59375 |
Mount Distance MM | 15.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24068] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | 2 Lead Wires w/ Connector |
UPC | 096361623958 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Dodge Ram 1500 | All Trims | 10 Cyl 8.3L |
2003-2006 Dodge Viper | All Trims | All Engines |
2008-2010 Dodge Viper | All Trims | All Engines |
