Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158272 |

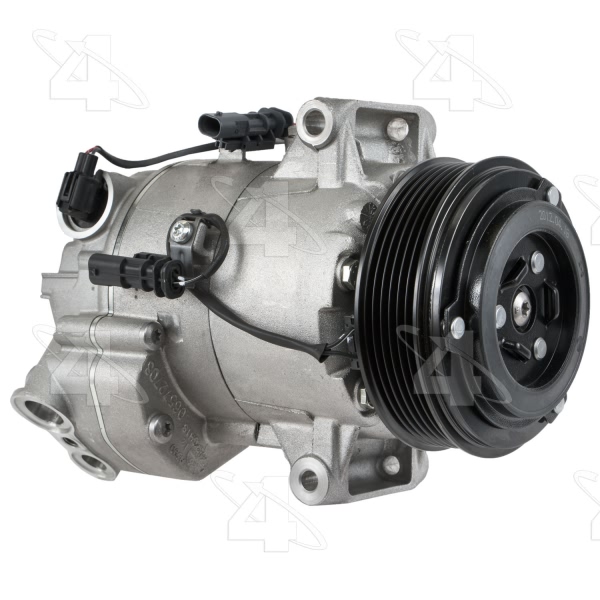

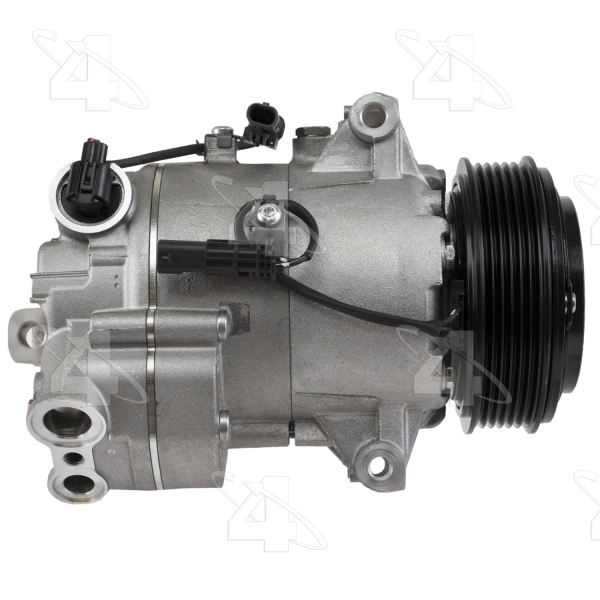

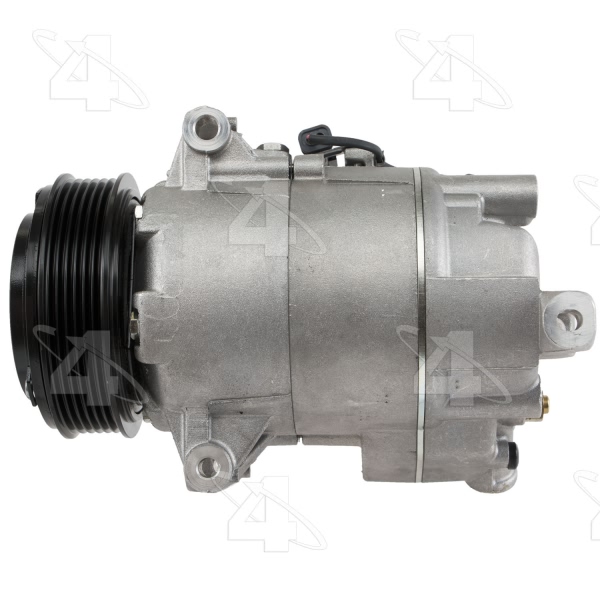

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |
Distance From Clutch To Mounting Flange | 1.265625 |
ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.474 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Terminal Type | Harness Lead |
UPC | 096361625037 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2016 Chevrolet Cruze | All Trims | 4 Cyl 1.8L |
2014-2015 Chevrolet Cruze | All Trims | 4 Cyl 2.0L |
2019 Chevrolet Cruze | All Trims | 4 Cyl 1.6L |
2016 Chevrolet Cruze Limited | All Trims | 4 Cyl 1.8L |
