Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 158271 |

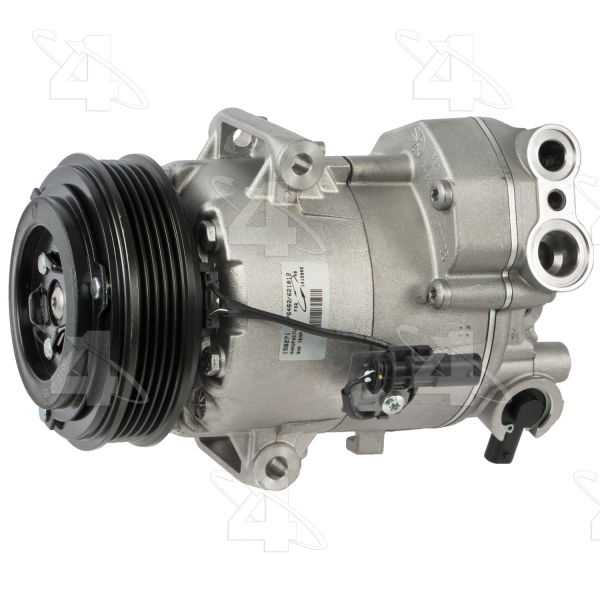

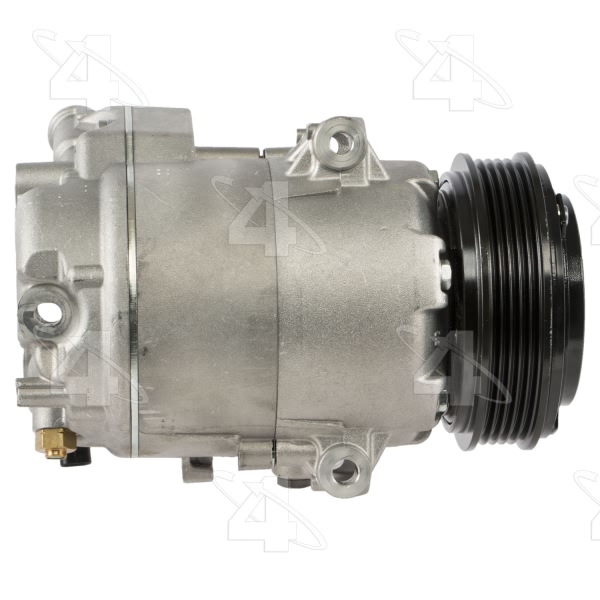

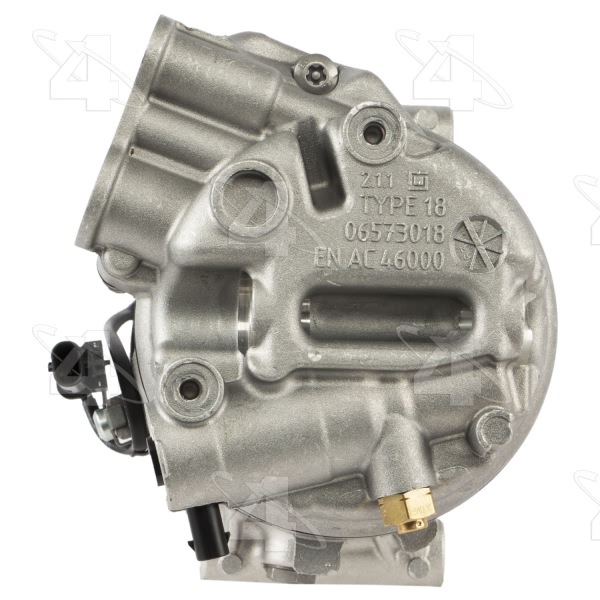

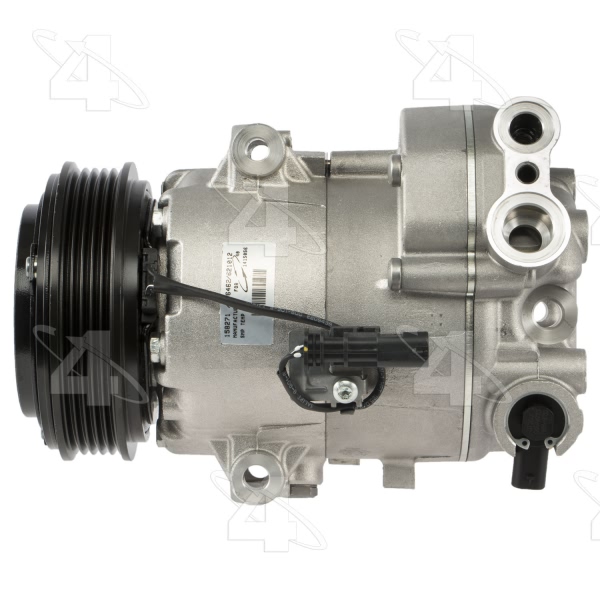

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |

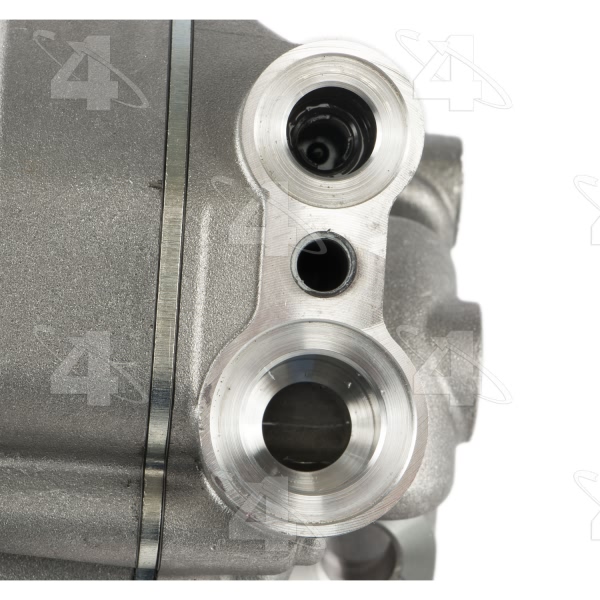

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.671875 |

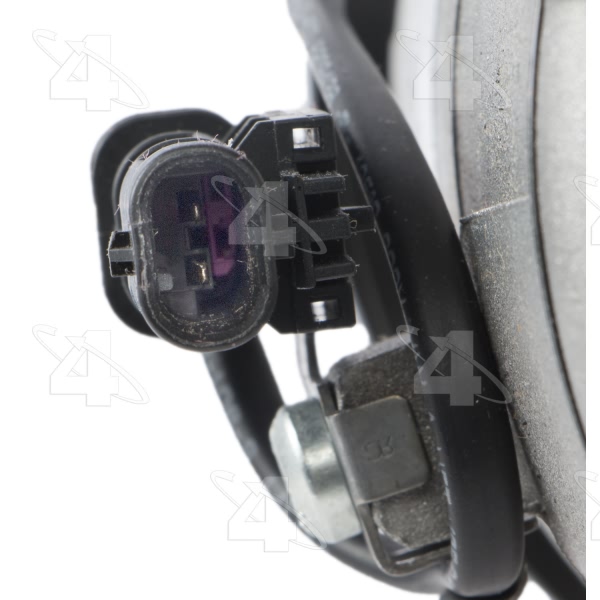

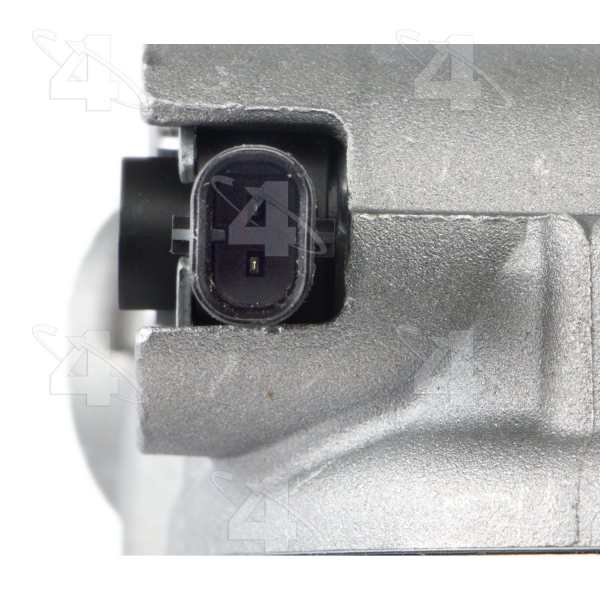

ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
Mount Distance MM | 42.418 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |

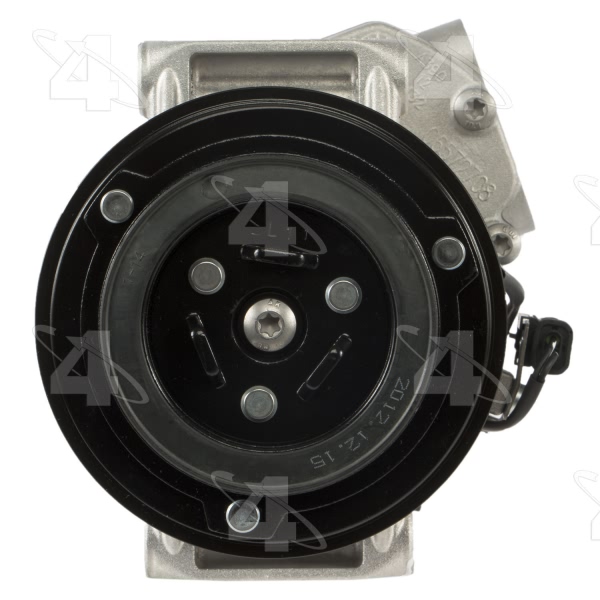

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.474 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Terminal Type | Harness Lead |
UPC | 096361623637 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2016 Chevrolet Cruze | All Trims | 4 Cyl 1.4L |
2016 Chevrolet Cruze Limited | All Trims | 4 Cyl 1.4L |
