Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 47811 |

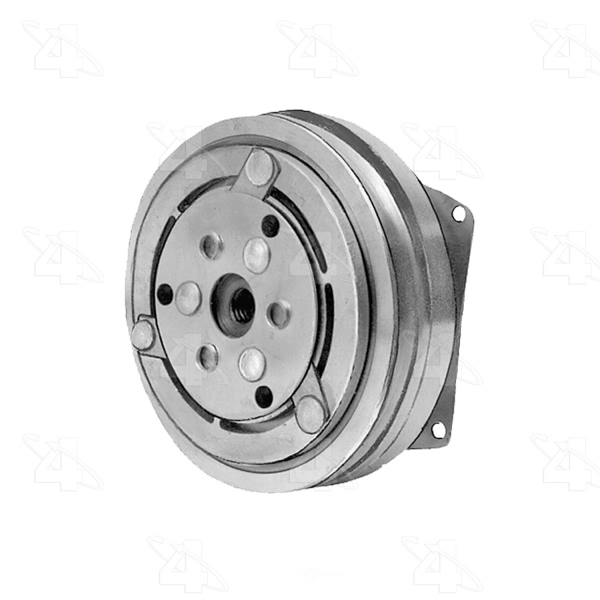

Part Description | A C Compressor Clutch |
Belt Type | V-Belt |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Can Size | w/ Coil |
Clutch Maximum Diameter | 6.000 |
Coil | w/ Coil |
Coil Voltage | 12 |
Color | Gold |
Distance From Clutch To Mounting Flange | 2.625 |
Groove | 1 |
Lead Wire | Lead Wires |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Type | Direct |
Rotation | CCW-CW |
Style | 206, 209, 210, HG850, HG1000 |
Thermal Or Non Thermal | NR |
UPC | 096361478114 |
Year Make Model | Trim | Engine |
---|---|---|
1968-1969 American Motors AMX | All Trims | 8 Cyl 4.8L |
1968-1969 American Motors AMX | All Trims | 8 Cyl 5.6L |
1968-1969 American Motors AMX | All Trims | 8 Cyl 6.4L |
1970 American Motors AMX | All Trims | All Engines |
1978-1979 American Motors AMX | All Trims | 6 Cyl 4.2L |
1978-1979 American Motors AMX | All Trims | 8 Cyl 5.0L |
1980 American Motors AMX | All Trims | All Engines |
1965-1974 American Motors Ambassador | All Trims | All Engines |
1965-1968 American Motors American | All Trims | All Engines |
1965-1966 American Motors Classic | All Trims | All Engines |
