Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 47569 |

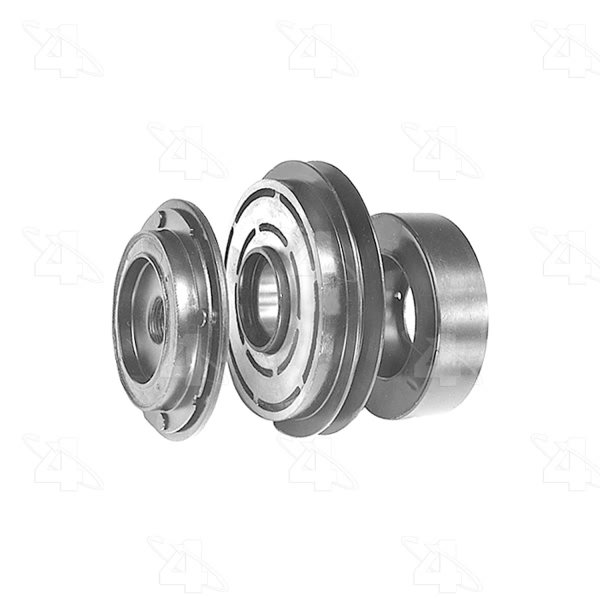

Part Description | A C Compressor Clutch |
Belt Type | V-Belt |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Can Size | w/ Coil |
Clutch Maximum Diameter | 5.250 |
Coil | w/ Coil |
Coil Voltage | 12 |
Color | Black |
Distance From Clutch To Mounting Flange | 1.625 |
Groove | 1 |
Lead Wire | Diode in Coil |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Type | Snap Ring |
Printed Foot Note | May Require use of OE Manifold |
Rotation | CCW-CW |
Style | 10P |
Thermal Or Non Thermal | NR |
UPC | 096361475694 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1991 Audi 100 | All Trims | All Engines |
1993-1994 Audi 100 | All Trims | All Engines |
1989-1991 Audi 100 Quattro | All Trims | All Engines |
1993-1994 Audi 100 Quattro | All Trims | All Engines |
1989-1991 Audi 200 | All Trims | All Engines |
1989-1991 Audi 200 Quattro | All Trims | All Engines |
1985-1986 Audi 5000 | All Trims | 5 Cyl 2.2L |
1987-1988 Audi 5000 | All Trims | All Engines |
1986 Audi 5000 Quattro | All Trims | 5 Cyl 2.2L |
1987-1988 Audi 5000 Quattro | All Trims | All Engines |
