Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33193 |

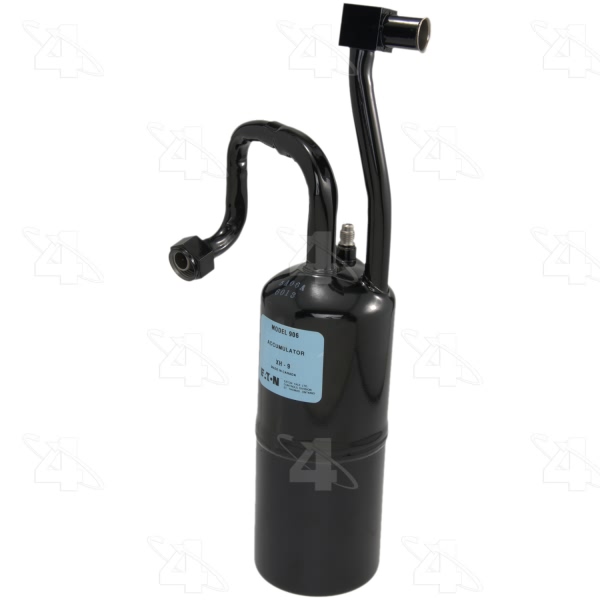

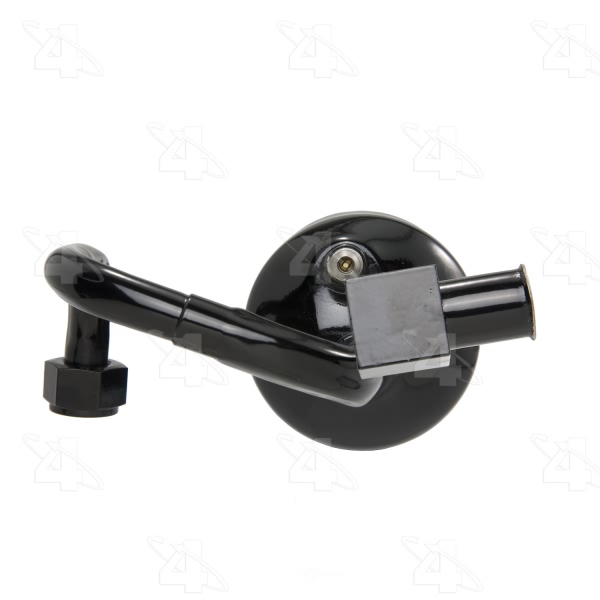

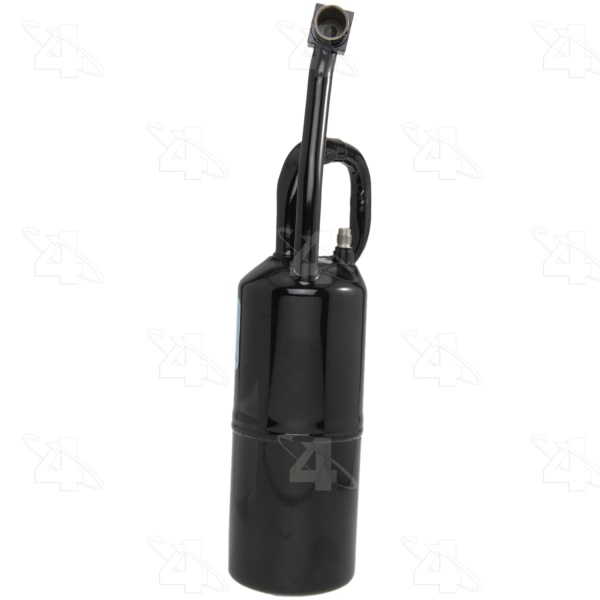

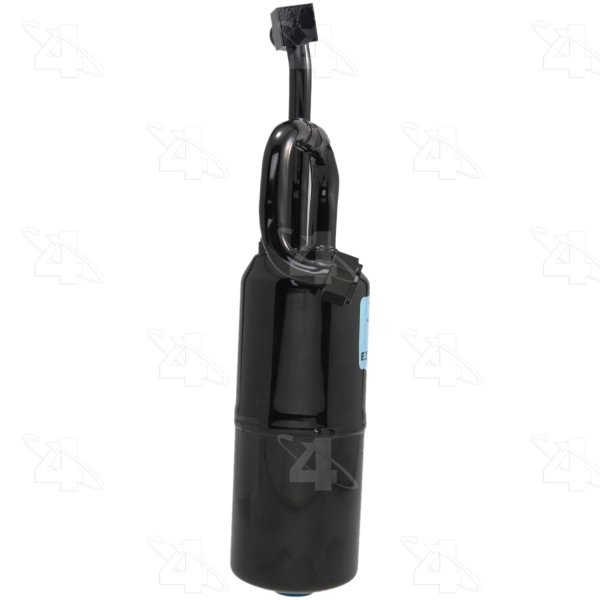

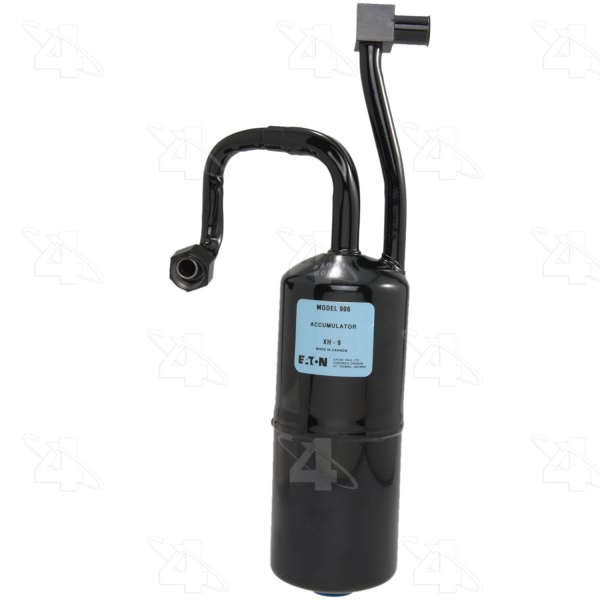

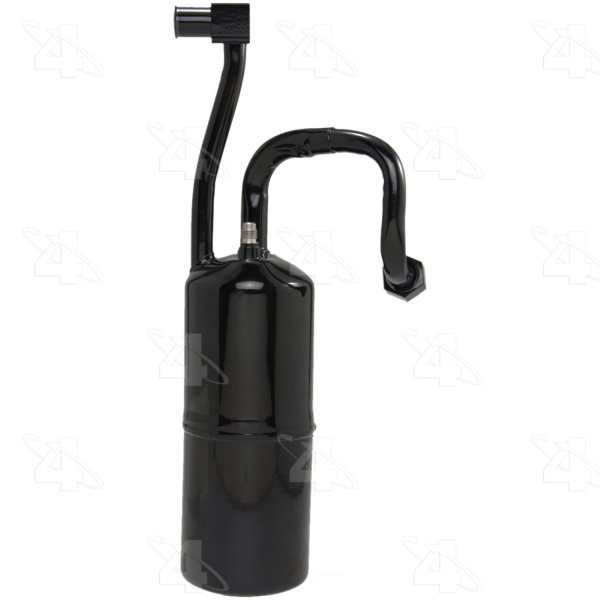

Part Description | A C Accumulator |
Body Diameter | 3.500 |
Body Length | 9.000 |
Dia. MM | 88.900 |
Inlet Fitting Diameter | 5/8 |

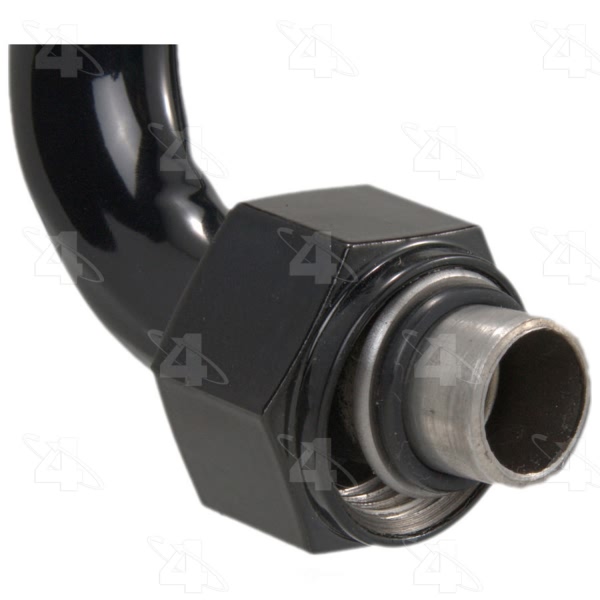

Inlet Fitting Type | Male Insert O-Ring |
Inlet IN | 0.625 |
Inlet MM | 15.875 |
Length MM | 228.600 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Hardware | Hardware not included. |
O-Ring A Number/Desc | [24220] / Spring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24670] / Green O-Ring |
O-Ring B Quantity | 3 |
O-Ring C Number/Desc | [24610] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24650] / Green O-Ring |
O-Ring D Quantity | 1 |
Outlet Fitting Diameter | 0.625 |

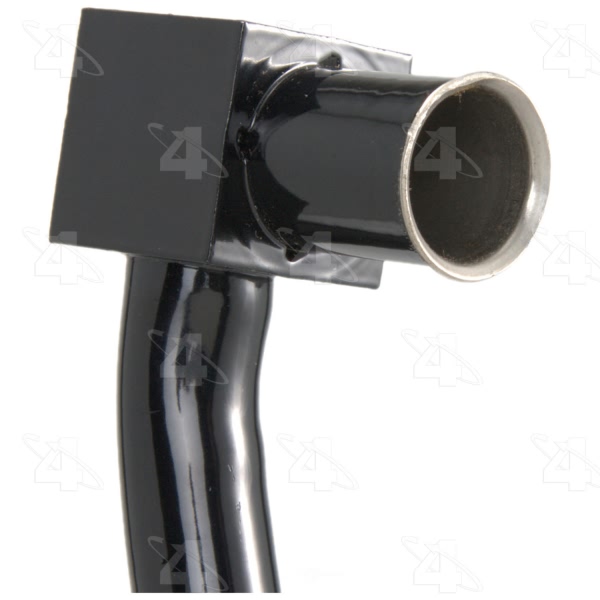

Outlet Fitting Type | Female Springlock |
Outlet Fraction | 5/8 |
Outlet MM | 15.875 |
Style | Complete Unit |
Switch | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
Switch Service Port | w/o Service Port |
UPC | 096361331938 |
Year Make Model | Trim | Engine |
---|---|---|
1984-1985 Ford Tempo | All Trims | 4 Cyl 2.3L |
1984-1985 Mercury Topaz | All Trims | 4 Cyl 2.3L |
