Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33067 |

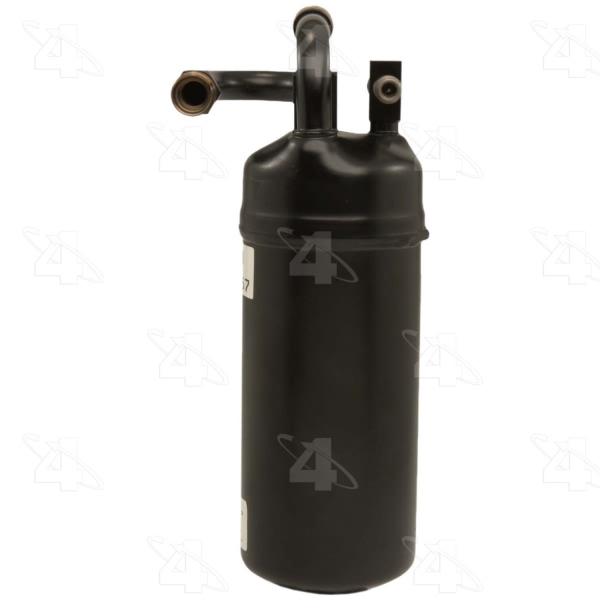

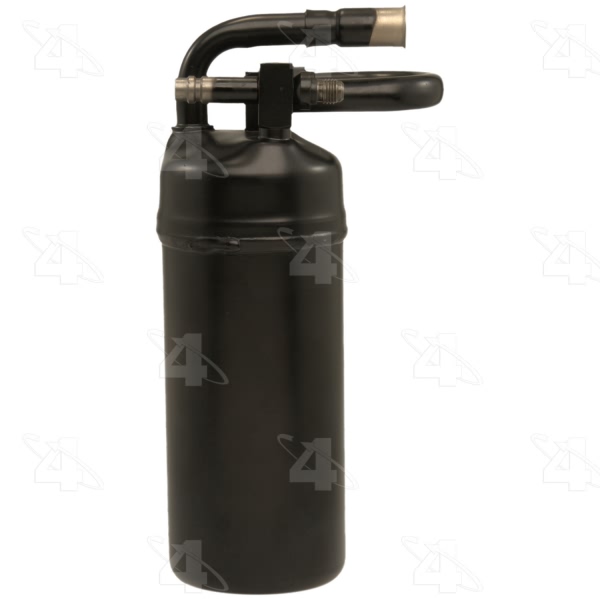

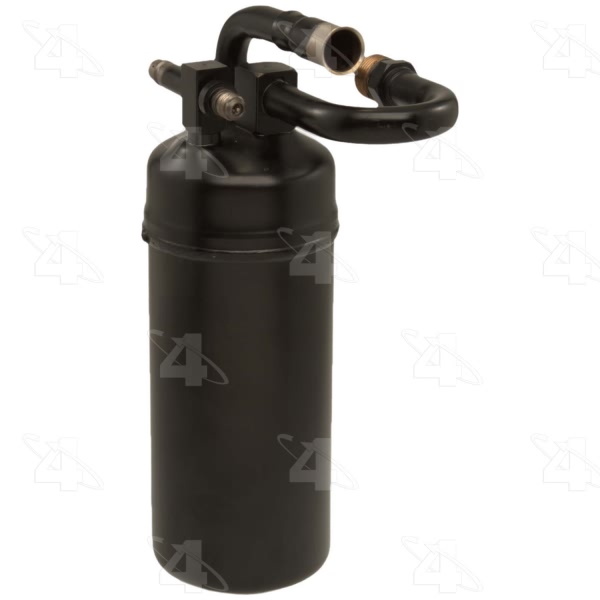

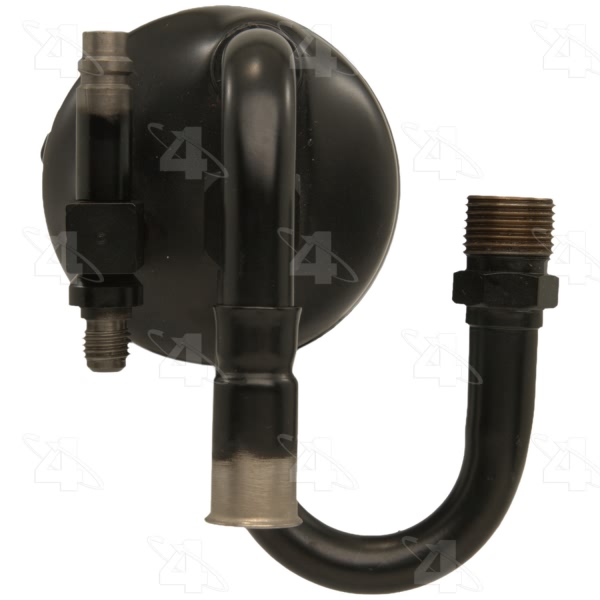

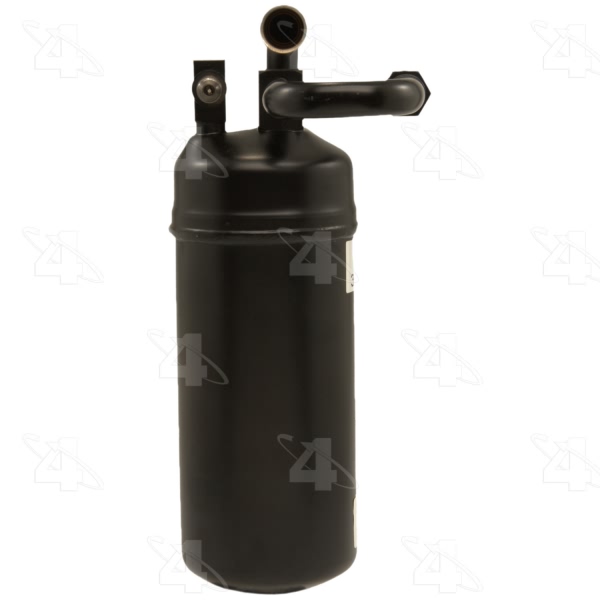

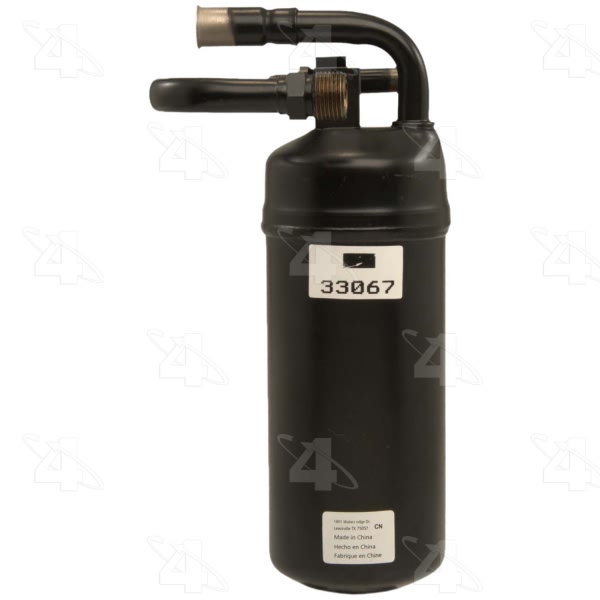

Part Description | A C Accumulator |
Body Diameter | 3.500 |
Body Length | 9.500 |
Dia. MM | 88.900 |
Inlet Fitting Diameter | 5/8 |
Inlet Fitting Type | Female Springlock |
Inlet IN | 0.625 |
Inlet MM | 15.875 |
Length MM | 241.300 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Hardware | Hardware not included. |
O-Ring A Number/Desc | [24610] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24676] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24220] / Spring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24670] / Green O-Ring |
O-Ring D Quantity | 3 |
Outlet Fitting Diameter | 0.625 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 5/8 |
Outlet MM | 15.875 |
Style | Complete Unit |
Switch | w/ Switch Port |
Switch Port Dia. IN | 0.472 |
Switch Port Dia.MM | 12.000 |
Switch Service Port | w/ Service Port |
UPC | 096361330672 |
Year Make Model | Trim | Engine |
---|---|---|
1994 Ford Explorer | All Trims | All Engines |
1994 Mazda Navajo | All Trims | All Engines |
