Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83350 |

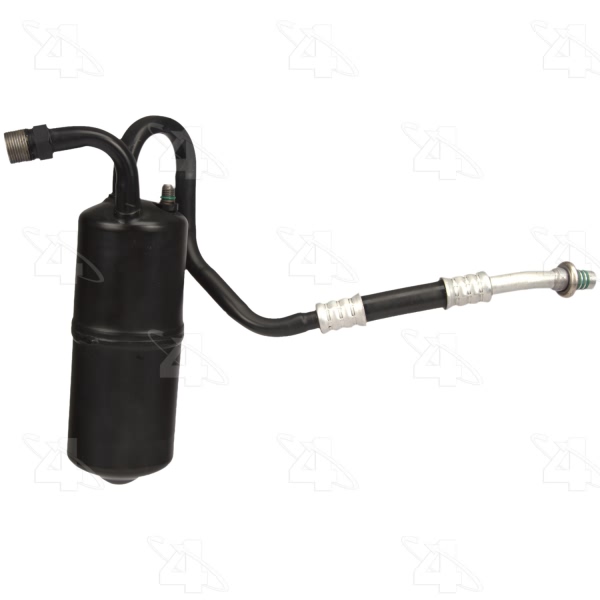

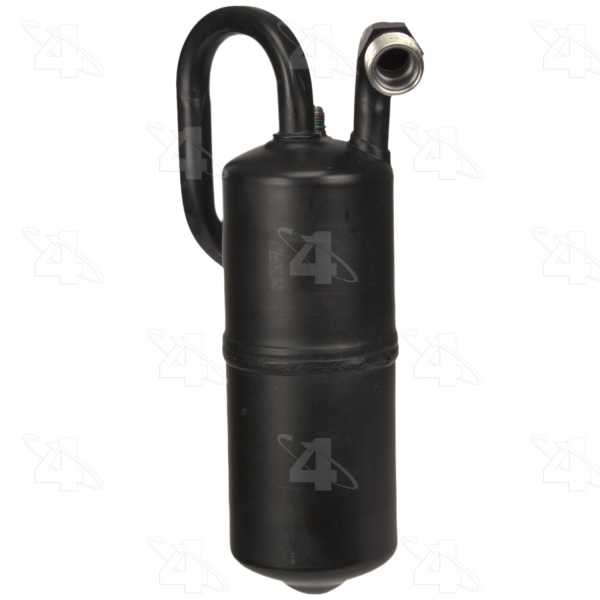

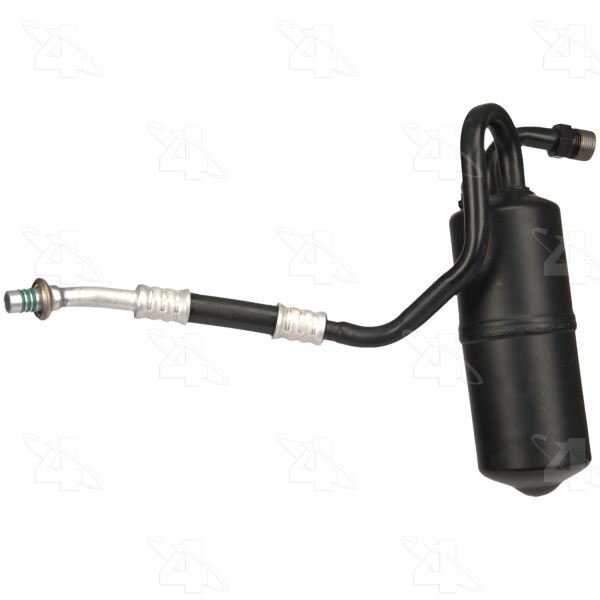

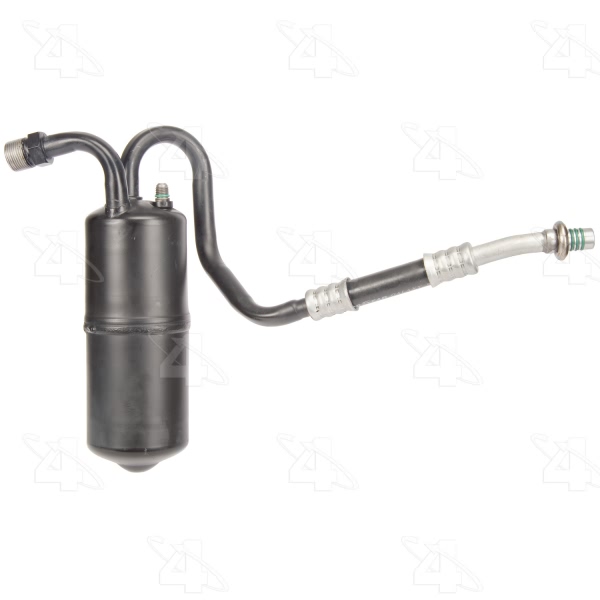

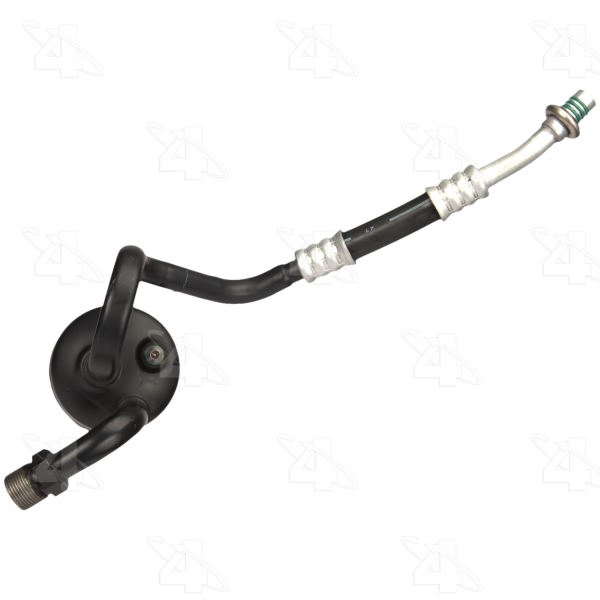

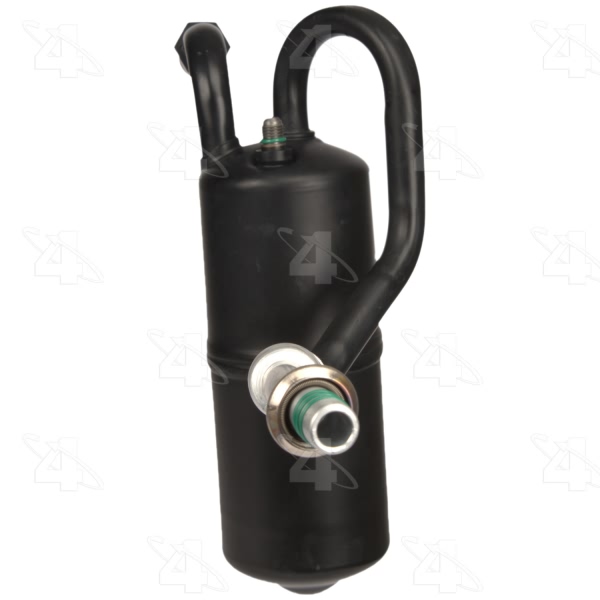

Part Description | A C Accumulator With Hose Assembly |
Accumulator Body Diameter | 3.500 |
Accumulator Body Length | 9.250 |
Dia. MM | 88.900 |
Inlet Fraction | 5/8 |
Inlet IN | 0.625 |
Inlet MM | 15.875 |
Inlet Type | Male Insert O-Ring |
Length MM | 203.200 |
Manifold | w/o Manifold |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | w/o Bracket |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24676] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24670] / Green O-Ring |
O-Ring B Quantity | 3 |
O-Ring C Number/Desc | [24612] / Green O-Ring |
O-Ring C Quantity | 1 |
Outlet Fraction | 1 |
Outlet IN | 1.0625 |
Outlet MM | 26.988 |
Outlet Type | Female Springlock |
Refrigerant Type | R134a |
Service Port | w/o Service Port |
Style | Suction Side |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.472 |
Switch Port Dia.MM | 12.000 |
Switch Qty. | 1 |
UPC | 096361833500 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2002 Mercury Villager | All Trims | All Engines |
1999-2002 Nissan Quest | All Trims | All Engines |
