Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83222 |

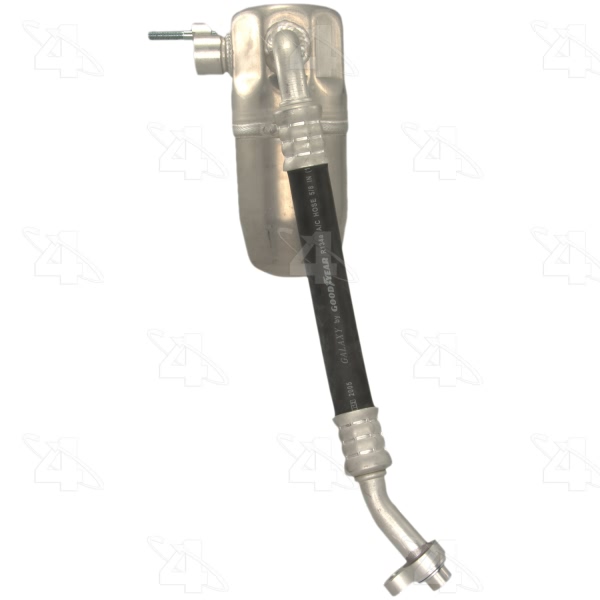

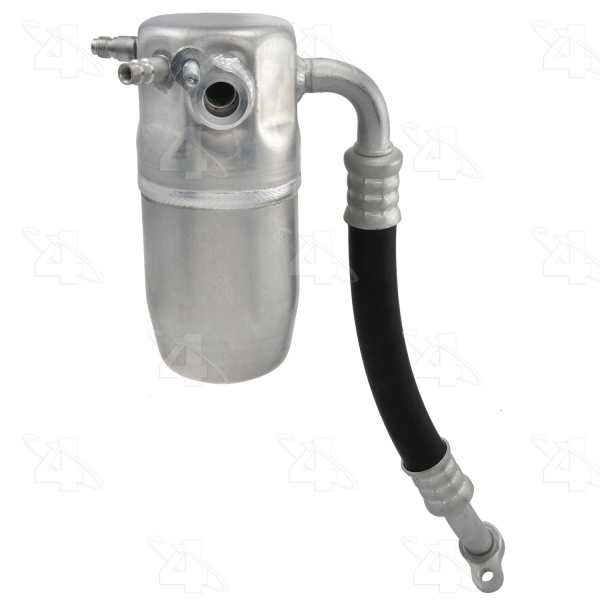

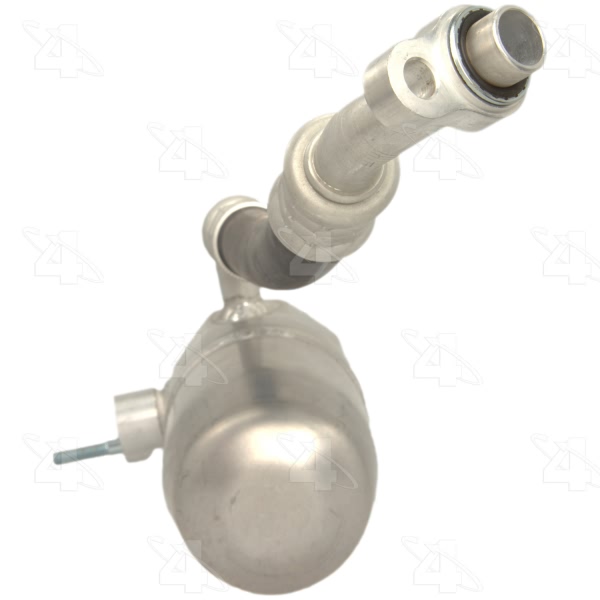

Part Description | A C Accumulator With Hose Assembly |
Accumulator Body Diameter | 3.500 |
Accumulator Body Length | 8.000 |
Dia. MM | 88.900 |
Inlet Fitting Gender | Female |
Inlet Fraction | 3/4 |
Inlet IN | 0.750 |
Inlet MM | 19.050 |
Inlet Type | P-Nut Fitting |
Length MM | 203.200 |
Manifold | w/o Manifold |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | w/o Bracket |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24676] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24404] / Slimline Washer |
O-Ring B Quantity | 2 |
Outlet Fraction | 3/4 |
Outlet IN | 0.750 |
Outlet MM | 19.050 |
Outlet Thread Size | M8x1.500 |
Outlet Type | P-Nut Fitting |
Refrigerant Type | R134a |
Service Port | w/ Service Port |
Service Port Type | Quick Disconnect |
Style | Suction Side |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.472 |
Switch Port Dia.MM | 12.000 |
UPC | 096361832220 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2007 Buick Rainier | All Trims | All Engines |
2003-2006 Chevrolet SSR | All Trims | All Engines |
2003-2009 Chevrolet Trailblazer | All Trims | All Engines |
2006 Chevrolet Trailblazer | All Trims | 6 Cyl 4.2L |
2006 Chevrolet Trailblazer | All Trims | 8 Cyl 5.3L |
2006 Chevrolet Trailblazer | All Trims | 8 Cyl 6.0L |
2003-2006 Chevrolet Trailblazer EXT | All Trims | 6 Cyl 4.2L |
2003-2006 Chevrolet Trailblazer EXT | All Trims | 8 Cyl 5.3L |
2003-2006 Chevrolet Trailblazer EXT | All Trims | All Engines |
2003-2009 GMC Envoy | All Trims | All Engines |
