Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83028 |

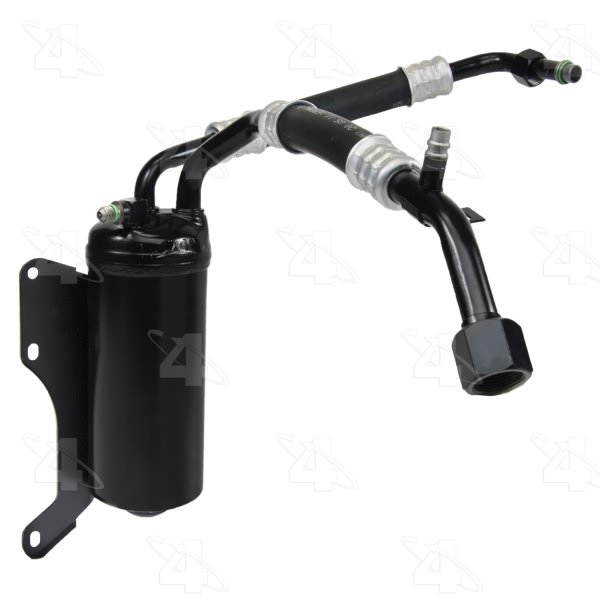

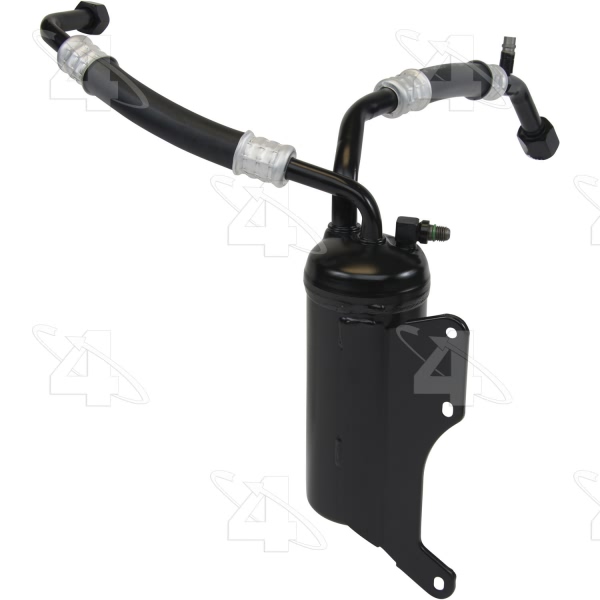

Part Description | A C Accumulator With Hose Assembly |
Accumulator Body Diameter | 3.500 |
Accumulator Body Length | 9.37 |
Dia. MM | 88.900 |
Inlet Fitting Gender | Female |
Inlet Fraction | 1 |
Inlet IN | 1.0625 |
Inlet MM | 27.000 |
Inlet Thread Size | M27x2.000 |
Inlet Type | Female O-Ring |
Length MM | 234.950 |
Manifold | w/o Manifold |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | w/ Bracket |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24676] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24606] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24610] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24612] / Green O-Ring |
O-Ring D Quantity | 1 |
Outlet Fitting Gender | Female |
Outlet Fraction | 5/8 |
Outlet IN | 0.625 |
Outlet MM | 26.988 |
Outlet Type | Female O-Ring |
Overall Depth IN | 12.60 |
Overall Depth MM | 320 |
Refrigerant Type | R134a |
Service Port | w/ Service Port |
Service Port Type | Quick Disconnect |
Style | Suction Side |
Suction End Type | Female O-Ring |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.472 |
Switch Port Dia.MM | 12.000 |
UPC | 096361830288 |
Year Make Model | Trim | Engine |
---|---|---|
1997-1998 Ford Club Wagon | All Trims | All Engines |
2002-2006 Ford E-150 | All Trims | All Engines |
2003 Ford E-150 | All Trims | 6 Cyl 4.2L |
2003 Ford E-150 | All Trims | 8 Cyl 4.6L |
2003 Ford E-150 | All Trims | 8 Cyl 5.4L |
2003 Ford E-150 Club Wagon | All Trims | 6 Cyl 4.2L |
2003 Ford E-150 Club Wagon | All Trims | 8 Cyl 4.6L |
2003 Ford E-150 Club Wagon | All Trims | 8 Cyl 5.4L |
2003-2005 Ford E-150 Club Wagon | All Trims | All Engines |
1997-2002 Ford E-150 Econoline | All Trims | 6 Cyl 4.2L |
