Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83015 |

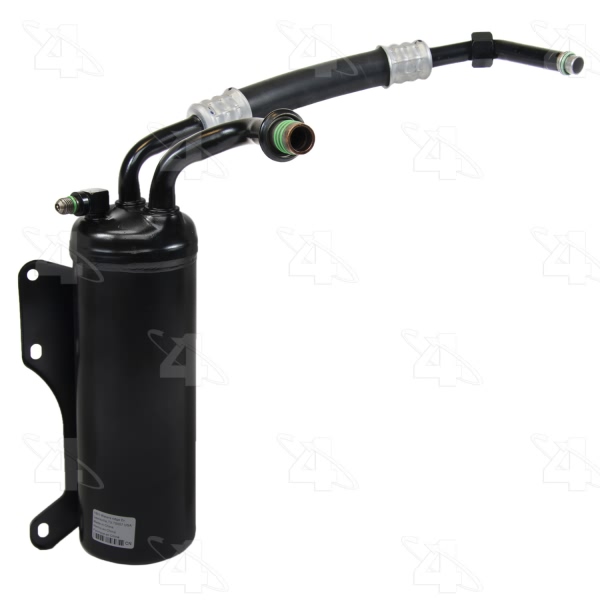

Part Description | A C Accumulator With Hose Assembly |
Accumulator Body Diameter | 3.500 |
Accumulator Body Length | 11 |
Dia. MM | 88.900 |
Inlet Fitting Gender | Female |
Inlet Fraction | 3/4 |
Inlet IN | 0.750 |
Inlet MM | 19.050 |
Inlet Type | Female O-Ring |
Length MM | 241.300 |
Manifold | w/o Manifold |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | w/o Bracket |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24222] / Spring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24672] / Green O-Ring |
O-Ring B Quantity | 3 |
O-Ring C Number/Desc | [24676] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24610] / Green O-Ring |
O-Ring D Quantity | 1 |
Outlet Fraction | 3/4 |
Outlet IN | 0.750 |
Outlet MM | 19.050 |
Outlet Type | Male Springlock |
Refrigerant Type | R134a |
Service Port | w/o Service Port |
Style | Suction Side |
Suction End Type | Female O-Ring |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.472 |
Switch Port Dia.MM | 12.000 |
Switch Qty. | 1 |
UPC | 096361830158 |
Year Make Model | Trim | Engine |
---|---|---|
1997-1998 Ford Club Wagon | All Trims | All Engines |
2002-2006 Ford E-150 | All Trims | All Engines |
2003 Ford E-150 | All Trims | 6 Cyl 4.2L |
2003 Ford E-150 | All Trims | 8 Cyl 4.6L |
2003 Ford E-150 | All Trims | 8 Cyl 5.4L |
2007 Ford E-150 | All Trims | 8 Cyl 5.4L |
2003 Ford E-150 Club Wagon | All Trims | 6 Cyl 4.2L |
2003 Ford E-150 Club Wagon | All Trims | 8 Cyl 4.6L |
2003 Ford E-150 Club Wagon | All Trims | 8 Cyl 5.4L |
2003-2005 Ford E-150 Club Wagon | All Trims | All Engines |
