Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33097 |

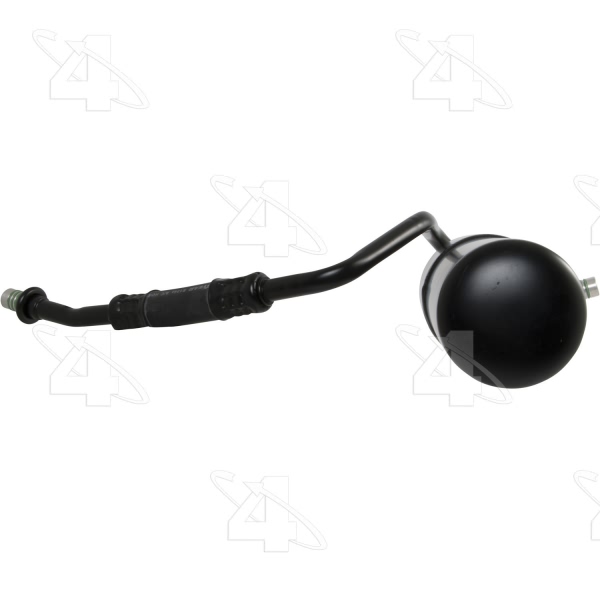

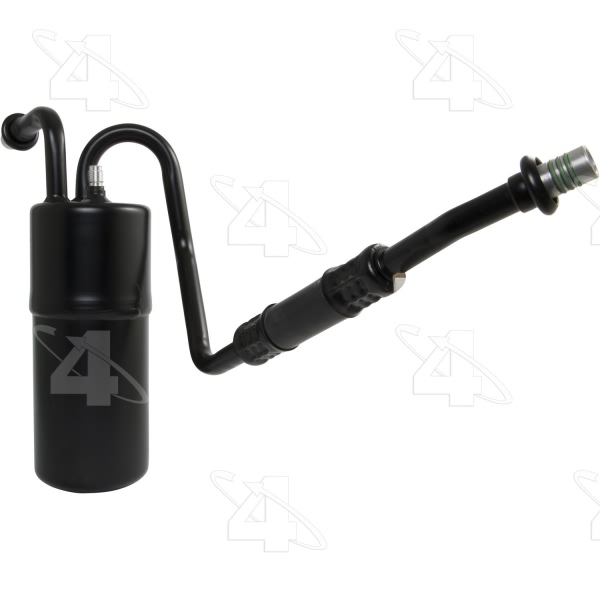

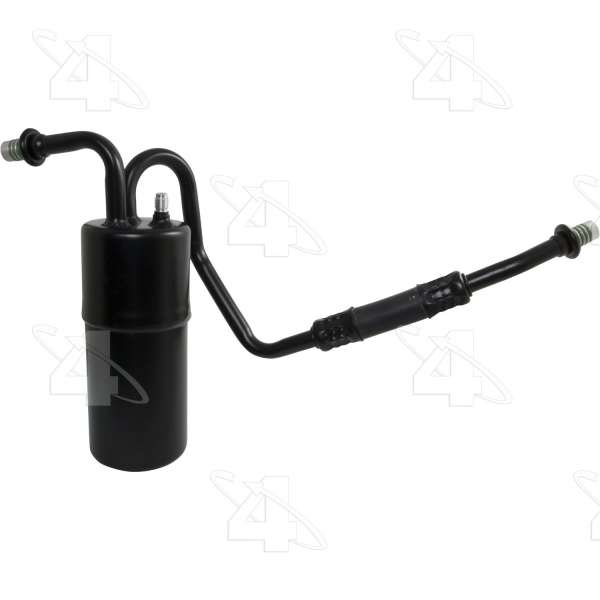

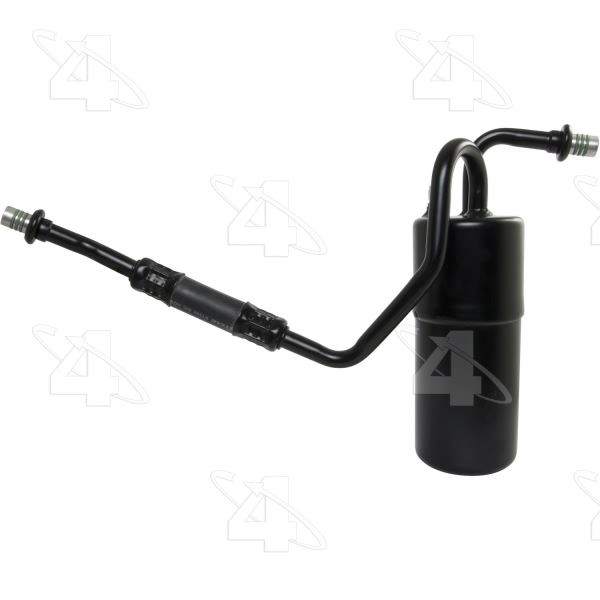

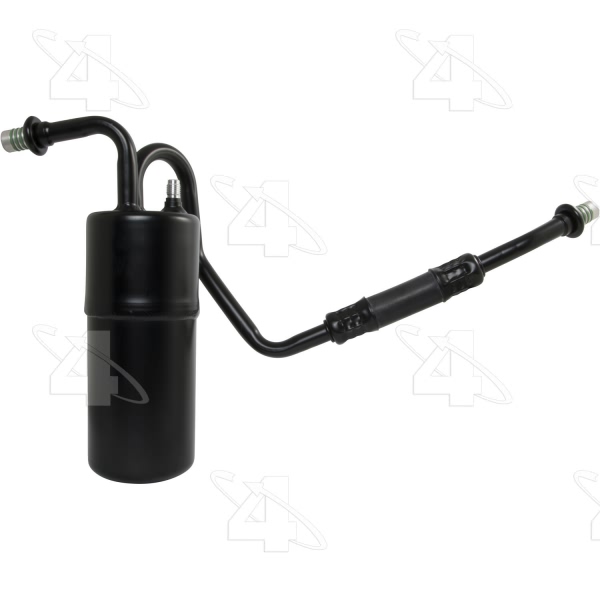

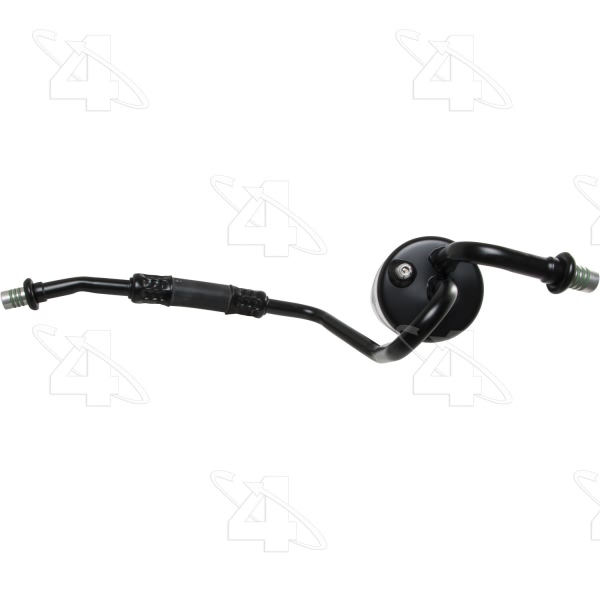

Part Description | A C Accumulator With Hose Assembly |
Accumulator Body Diameter | 3.500 |
Accumulator Body Length | 9.000 |
Dia. MM | 88.900 |
Inlet Fraction | 5/8 |
Inlet IN | 0.625 |
Inlet MM | 15.875 |

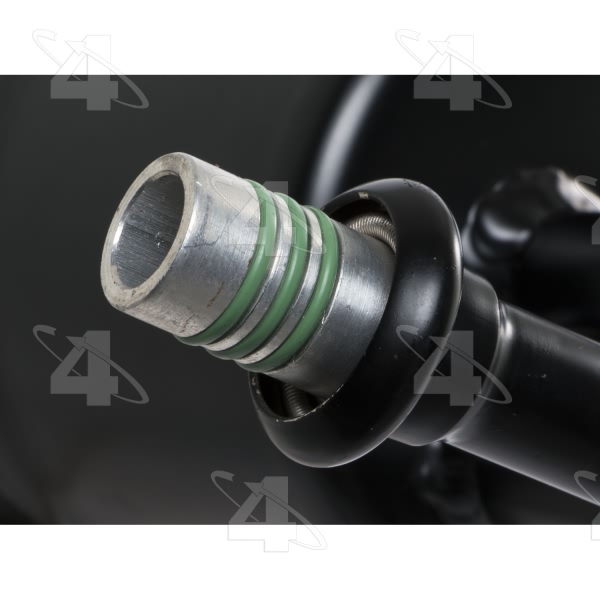

Inlet Type | Male Springlock |
Length MM | 228.600 |
Manifold | w/o Manifold |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | w/o Bracket |
Muffler | w/o Muffler |

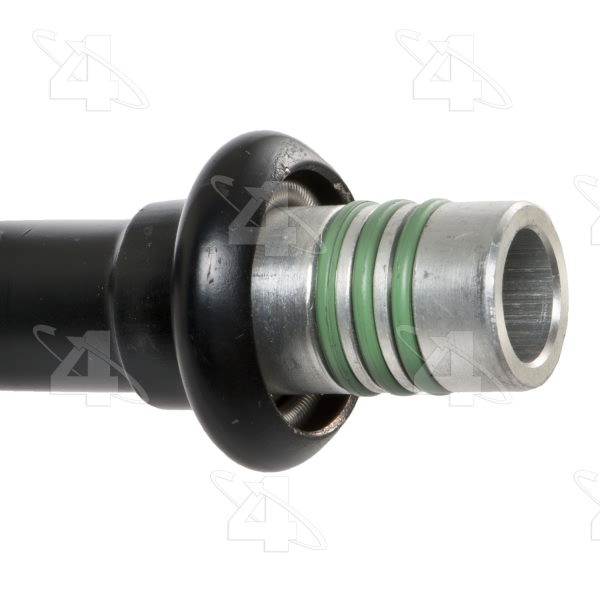

O-Ring A Number/Desc | [24676] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24220] / Spring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24670] / Green O-Ring |
O-Ring C Quantity | 3 |
Outlet Fraction | 5/8 |
Outlet IN | 0.625 |
Outlet MM | 15.875 |
Outlet Type | Male Springlock |
Refrigerant Type | R134a |
Service Port | w/o Service Port |
Style | Suction Side |
Suction End Type | Male Springlock |

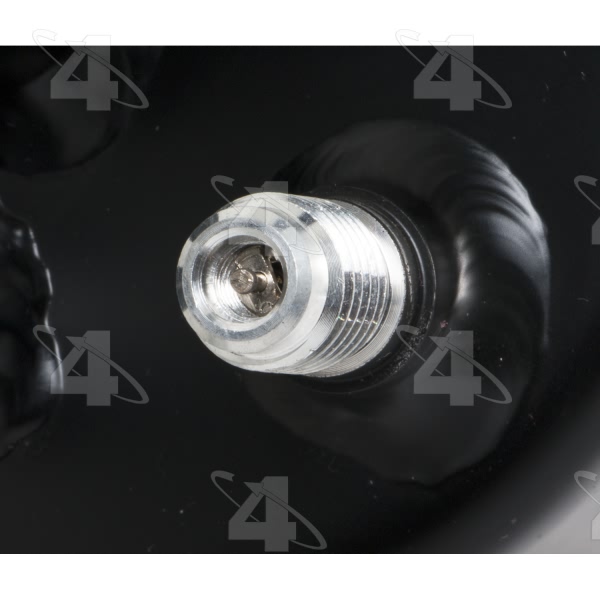

Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.472 |
Switch Port Dia.MM | 12.000 |
Switch Qty. | 1 |
UPC | 096361330979 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1998 Mercury Villager | All Trims | All Engines |
1994-1998 Nissan Quest | All Trims | All Engines |
