Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BR5520 |

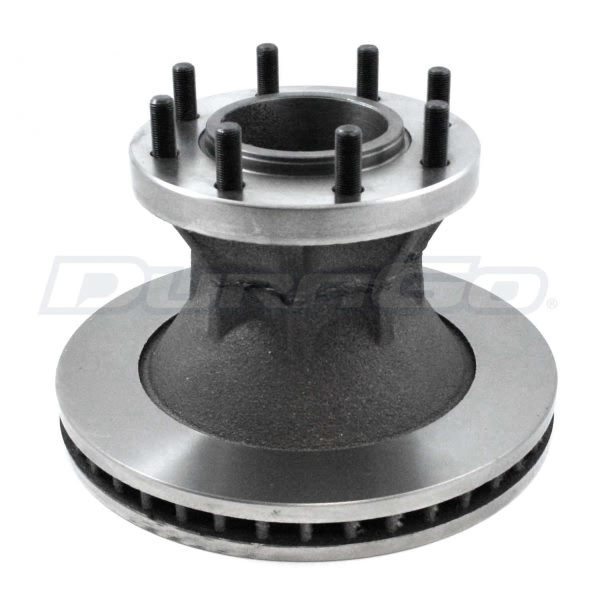

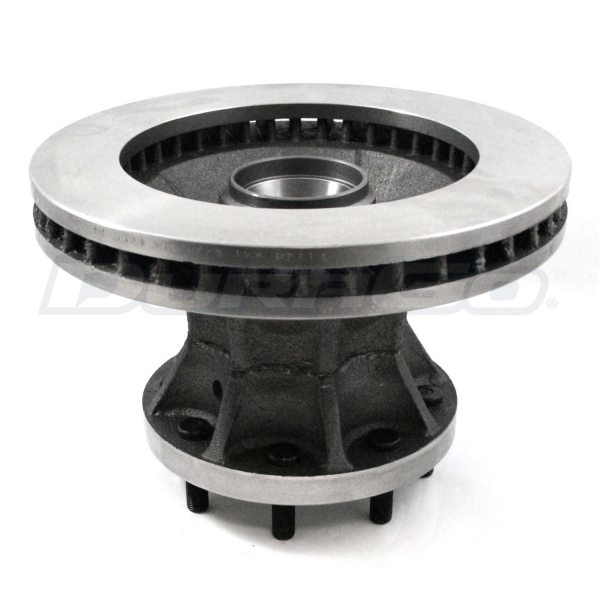

Part Description | Vented Front Brake Rotor And Hub Assembly |
Bolt Circle | 165.1mm (6.5") |
Lug Holes Quantity | 8 |
Minimum Thickness | 37.2mm (1.46") |
Nominal Thickness | 39.1mm (1.54") |
Quantity | 1 Per Pack |
Rotor Construction | 1-Piece |
Rotor Design | Hub and Rotor Assembly |
Rotor Diameter | 317.6mm (12.50") |
Rotor Height | 195.3mm (7.69") |
Rotor Style | Plain |
Rotor Vane Type | Non-Directional |
UPC | 756632103410 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1986 Chevrolet C30 | All Trims | All Engines |
1974 Chevrolet C30 Pickup | All Trims | All Engines |
1975-1992 Chevrolet G30 | All Trims | All Engines |
1974 Chevrolet G30 Van | All Trims | All Engines |
1975-1996 Chevrolet P30 | All Trims | All Engines |
1974 Chevrolet P30 Van | All Trims | All Engines |
1987-1988 Chevrolet R30 | All Trims | All Engines |
1989-1991 Chevrolet R3500 | All Trims | All Engines |
1975-1978 GMC C35 | All Trims | All Engines |
1974 GMC C35/C3500 Pickup | All Trims | All Engines |
