Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 624-513 |

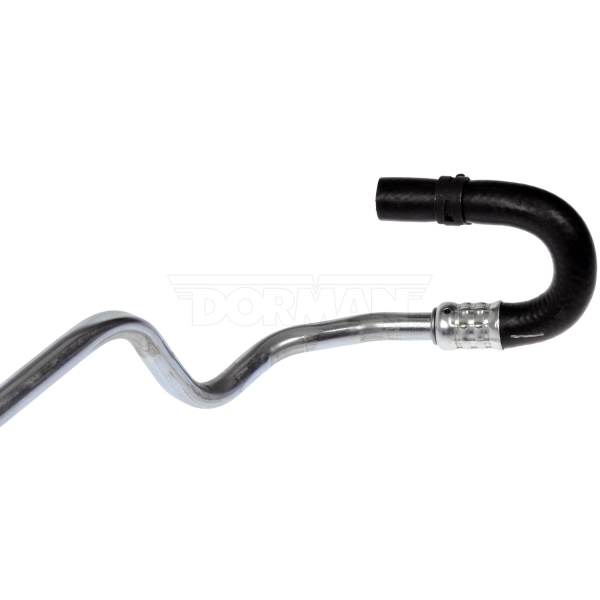

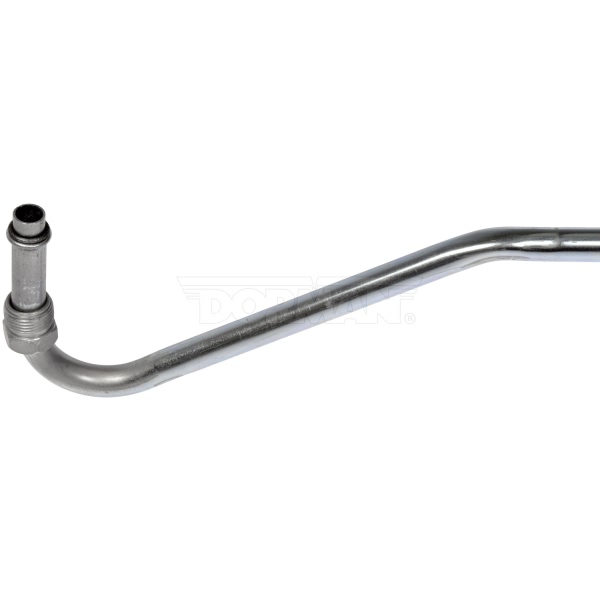

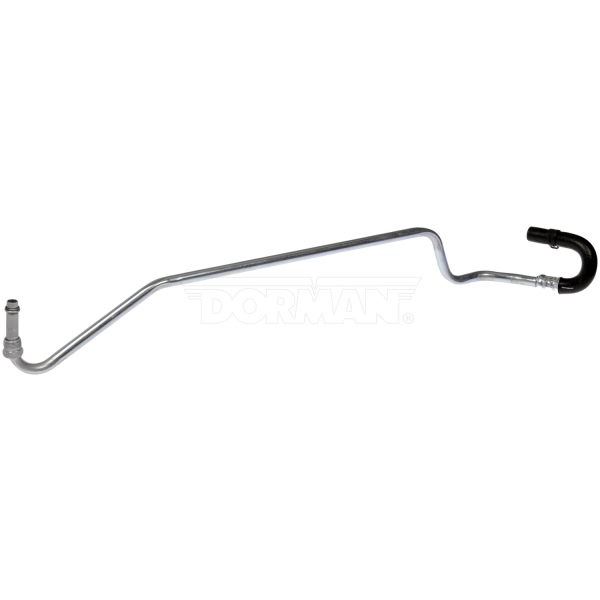

Part Description | Transmission Oil Cooler Line |
Color/Finish | Natural |
Contains Spring | No |
End Inside Diameter | .4 |
Fitting Included | No |
Fittings Included | No |
Flexible | No |
Gasket or Seal Included | Yes |
Hose Attachment End 1 | Clamp |
Hose Attachment End 2 | Male Threads |
Hose Material | Metal and Rubber |
Hose Overall Length (In) | 28 |
Hose Shape | Molded Assembly |
Hose/Line Maximum Pressure (psi) | 100 |
Maximum Operating Temperature (°F) | 329 |
Minimum Operating Temperature (°F) | -40 Deg. F. |
UPC | 885484371996 |
OE Part Number | 8C3Z7C410A |
Package Contents | Transmission line |
Package Quantity | 1 |
Packaging Type | Bag |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L |
2008-2009 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L |
2008-2009 Ford F-350 | All Trims | 8 Cyl 5.4L |
2008-2009 Ford F-350 Super Duty | All Trims | 10 Cyl 6.8L |
2008-2009 Ford F-350 Super Duty | All Trims | 8 Cyl 5.4L |
