Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 930-618 |

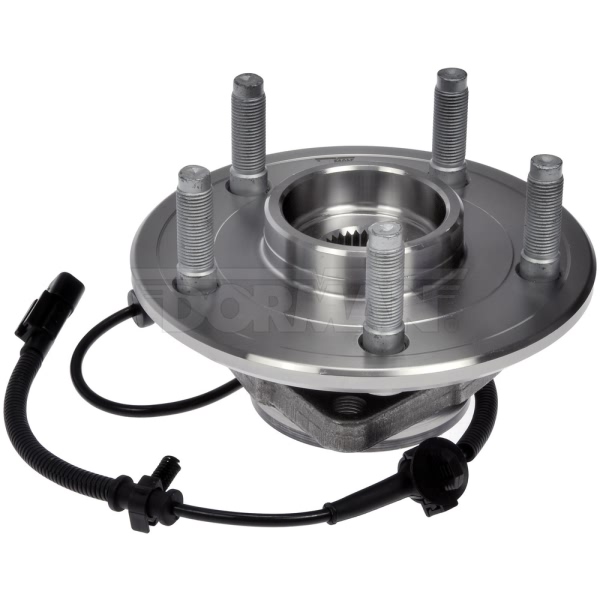

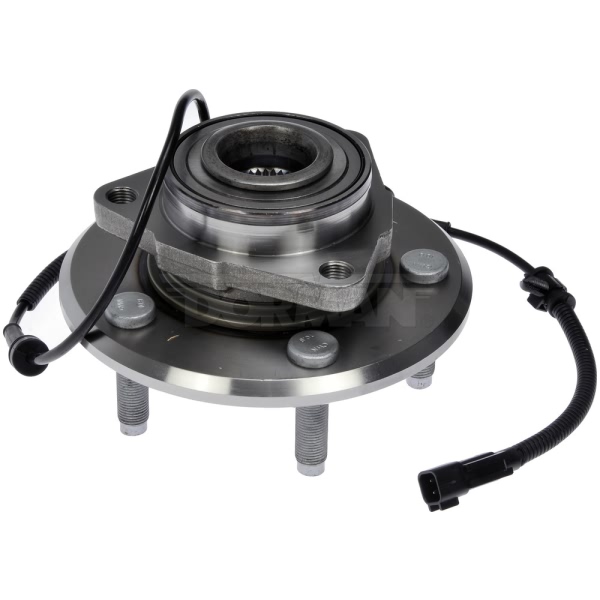

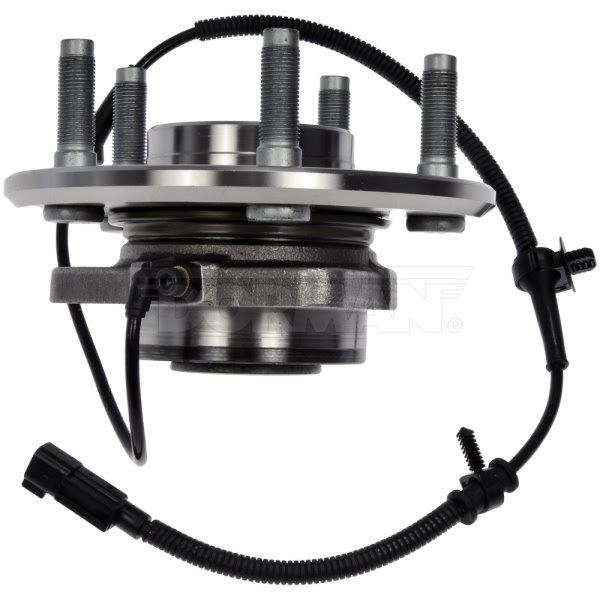

Part Description | OE Solutions Front Driver Side Wheel Bearing And Hub Assembly |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Sensor |
Bolt Circle Diameter | 4.96" |
Brake Pilot Diameter | 3.1" |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Terminal Quantity | 2 |
Flange Bolt Hole Diameter | 0.48" |
Flange Bolt Hole Quantity | 3 |
Flange Bolts Included | No |
Flange Diameter | 5.1" |
Flange Included | Yes |
Flange Offset | 1.82" |
Flange Shape | Triangular |
Hub Pilot Diameter | 3.55" |
UPC | 885484572935 |
OE Part Number | 52070323AE, 52070323AF, 52070323AG, 52070323AH |
Package Contents | Hub Bearing Assembly |
Spline Quantity | 33 |
Terminal Gender | Male |
Wheel Pilot Diameter | 3.05" |
Wheel Stud Quantity | 5 |
Wheel Stud Size | 9/16-18 |
Wheel Studs Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2006 Dodge Ram 1500 | All Trims | 8 Cyl 5.7L |
2006-2008 Dodge Ram 1500 | All Trims | All Engines |
