Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 930-615 |

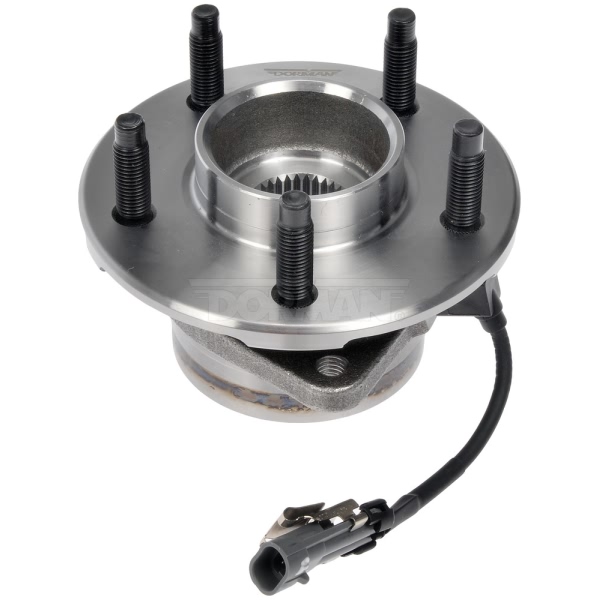

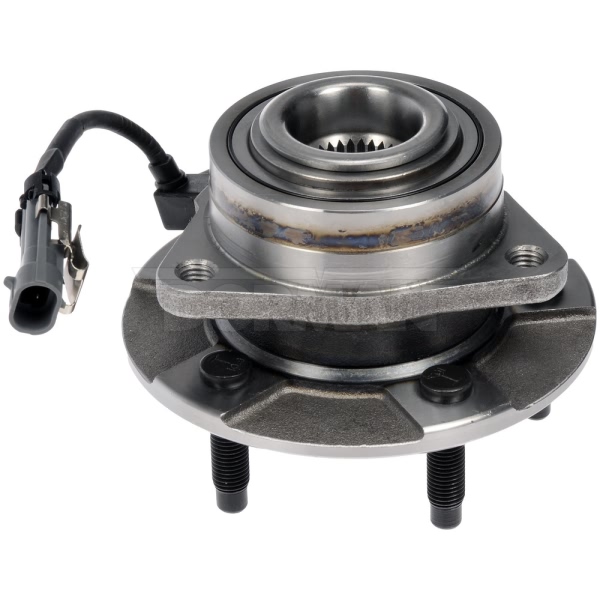

Part Description | OE Solutions Front Passenger Side Wheel Bearing And Hub Assembly |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Sensor |
Bolt Circle Diameter | 4.53" |
Brake Pilot Diameter | 3.6" |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Terminal Quantity | 2 |
Flange Bolt Hole Diameter | 0.39" |
Flange Bolt Hole Quantity | 3 |
Flange Bolts Included | No |
Flange Diameter | 4.57" |
Flange Offset | 1.65" |
Flange Shape | Triangular |
Hub Pilot Diameter | 2.75" |
Package Contents | Hub Bearing Assembly |
Spline Quantity | 33 |
Terminal Gender | Male |
UPC | 885484572812 |
Wheel Pilot Diameter | 2.8" |
Wheel Stud Quantity | 5 |
Wheel Stud Size | M12x1.25 |
Wheel Studs Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Chevrolet Equinox | All Trims | All Engines |
2006 Pontiac Torrent | All Trims | All Engines |
2002-2003 Saturn Vue | All Trims | 6 Cyl 3.0L |
2002-2007 Saturn Vue | All Trims | All Engines |
