Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 925-061 |

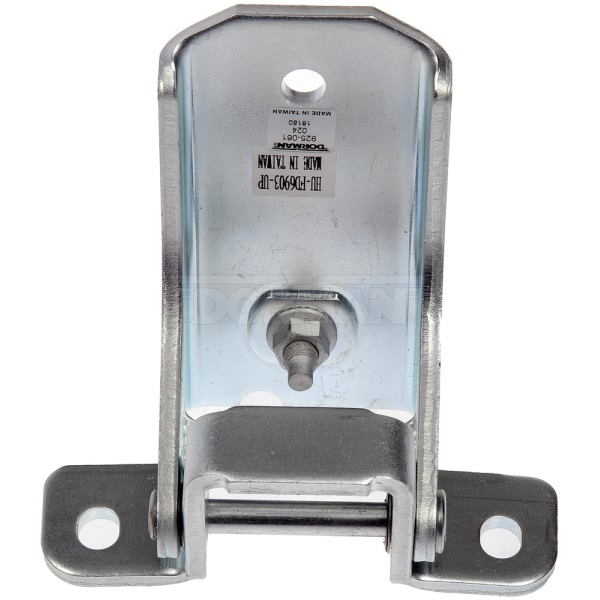

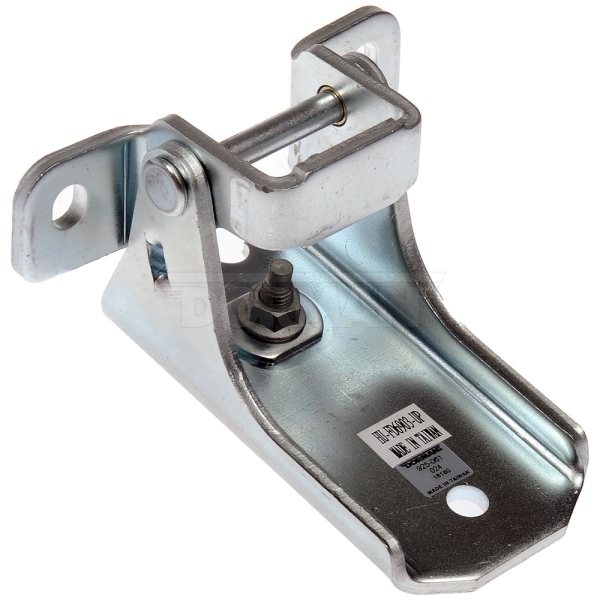

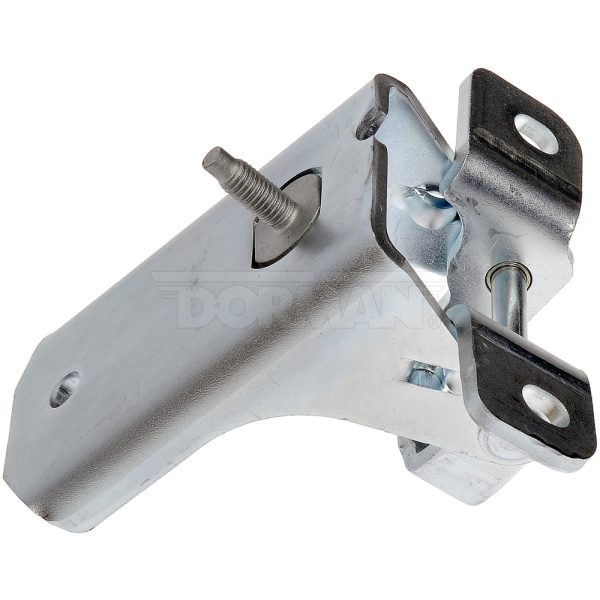

Part Description | OE Solutions Front Passenger Side Upper Door Hinge Assembly |
Assembled Height | 120 mm |
Assembled Length | 120 mm |
Assembled Width | 95 mm |
Attachment Method | Bolt On |
Configuration | One Piece |
Flange 1 Mount Hole Diameter | 9.5 mm |
Flange 1 Mount Hole Quantity | 2 |
Flange 2 Mount Hole Diameter | 9.7 mm |
Flange 2 Mount Hole Quantity | 1 |
Installation Hardware Included | No |
Interior/Exterior | Interior |
Material | Carbon Steel |
UPC | 885484721357 |
OE Part Number | 6C2Z1522800A |
Package Contents | 1 Hinge |
Pin And Bushings Included | Yes |
Pin Attachment Method | Fixed |
Pin Diameter | 7.9 mm |
Pin Material | Steel |
Plate Material | Steel |
Universal Or Specific Fit | Specific |
Year Make Model | Trim | Engine |
---|---|---|
2011-2014 Ford E-150 | All Trims | All Engines |
2011-2014 Ford E-250 | All Trims | All Engines |
2011-2018 Ford E-350 Super Duty | All Trims | All Engines |
2011-2014 Ford Econoline Van | All Trims | All Engines |
2011-2014 Ford Econoline Wagon | All Trims | All Engines |
