Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 925-038 |

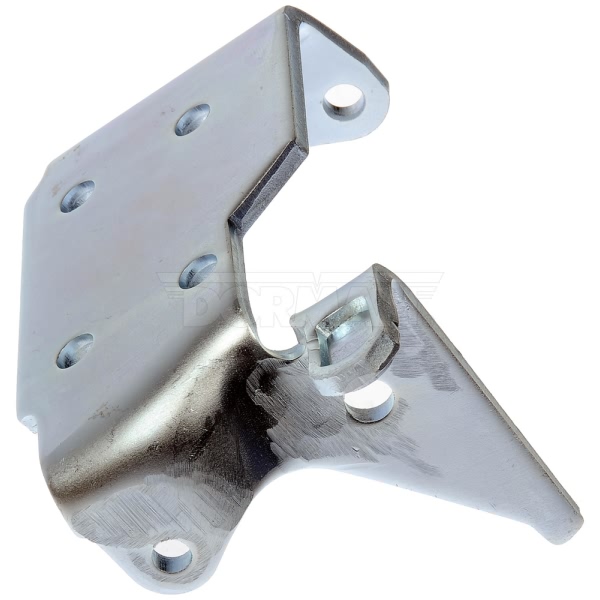

Part Description | OE Solutions Front Driver Side Inner Lower Door Hinge Assembly |
Assembled Height | 150 mm |
Assembled Length | 90 mm |
Assembled Width | 87 mm |
Attachment Method | Bolt On |
Configuration | One Piece |
Flange 1 Mount Hole Diameter | 9.5 mm |
Flange 1 Mount Hole Quantity | 4 |
Flange 2 Mount Hole Diameter | 8.3 mm |
Flange 2 Mount Hole Quantity | 1 |
Installation Hardware Included | Yes |
Interior/Exterior | Interior |
Material | Carbon Steel |
UPC | 885484717749 |
OE Part Number | 15993237 |
Package Contents | 1 Hinge |
Pin And Bushings Included | No |
Pin Attachment Method | Not Required |
Plate Material | Steel |
Universal Or Specific Fit | Universal |
Year Make Model | Trim | Engine |
---|---|---|
1996-2014 Chevrolet Express 1500 | All Trims | All Engines |
1996-2020 Chevrolet Express 2500 | All Trims | All Engines |
1996-2020 Chevrolet Express 3500 | All Trims | All Engines |
1996-2014 GMC Savana 1500 | All Trims | All Engines |
1996-2020 GMC Savana 2500 | All Trims | All Engines |
1996-2020 GMC Savana 3500 | All Trims | All Engines |
