Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 916-886XD |

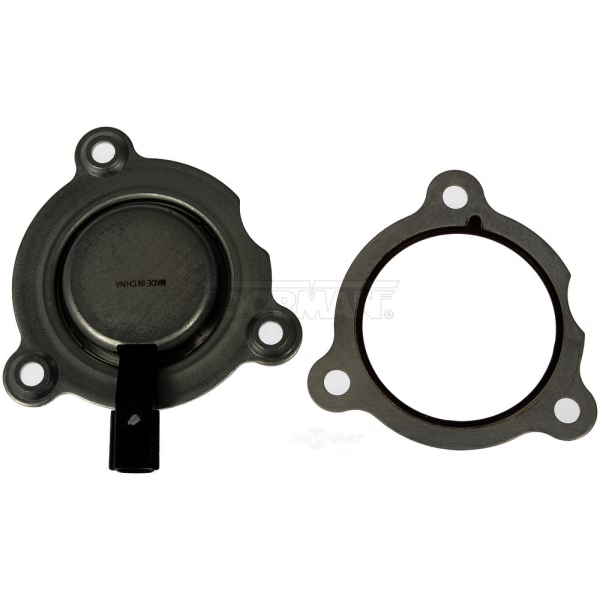

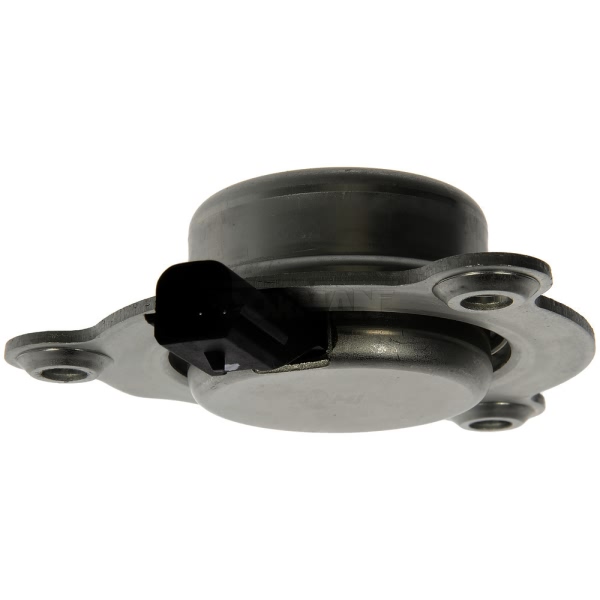

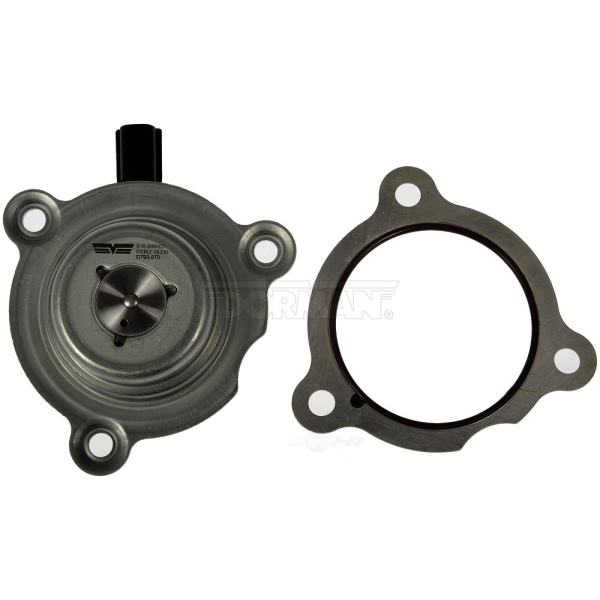

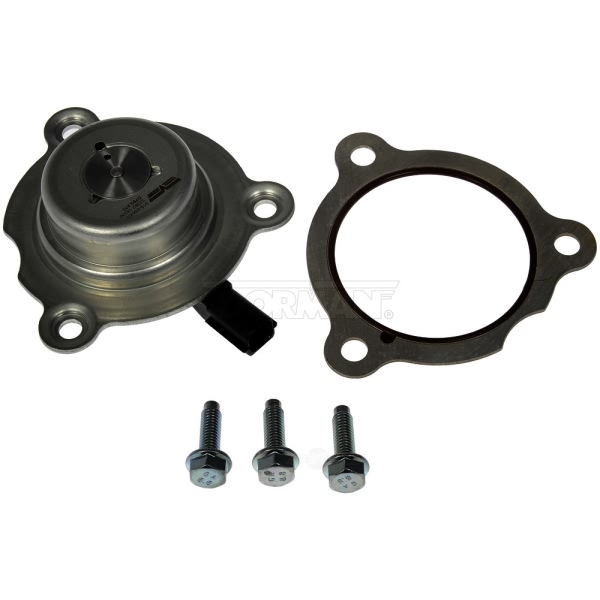

Part Description | OE Solutions Improved Design Variable Valve Timing Solenoid |
Color/Finish | Silver And Zinc-Plated |
Connector Color | Black |
Connector Shape | Square |
Electrical Connection Quantity | 1 |
Electrical Connector Gender | Male |
Electrical Connector Terminal Quantity | 2 |
Electrical Connector Terminal Type | Blade |
Electrical Connector Type | Plug and Socket |
Height | 1.37" |
Housing Length | 4" |
Housing Material | Metal |
Housing Width | 3.4" |
Item Grade | Standard Replacement |
Mount Hole Quantity | 3 |
Overall Length | 4" |
Overall Width | 3.4" |
Plug/Connector Type | Plug and Socket |
Quantity of Wires | 0 |
Shaft Diameter | 0.155" |
Shaft Included | Yes |
Solenoid Activation Type | Electromagnetic |
Solenoid Finish | Silver |
Terminal Gender | Male |
UPC | 889245459251 |
Voltage | 12V |
Year Make Model | Trim | Engine |
---|---|---|
2007-2014 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
2009-2013 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
2007-2014 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
2007-2013 Cadillac Escalade EXT | All Trims | 8 Cyl 6.2L |
2007-2009 Chevrolet Avalanche | All Trims | 8 Cyl 6.0L |
2007-2013 Chevrolet Avalanche | All Trims | 8 Cyl 5.3L |
2010-2015 Chevrolet Camaro | All Trims | 8 Cyl 6.2L |
2010-2012 Chevrolet Colorado | All Trims | 8 Cyl 5.3L |
2010-2014 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L |
2008-2017 Chevrolet Express 2500 | All Trims | 8 Cyl 6.0L |
