Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 698-432 |

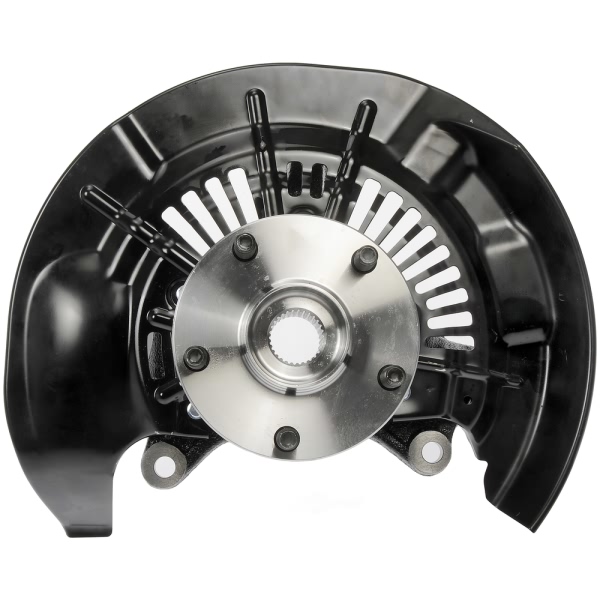

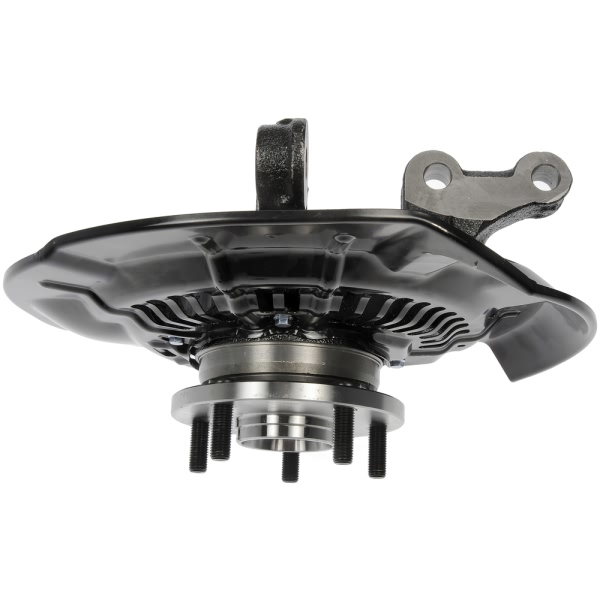

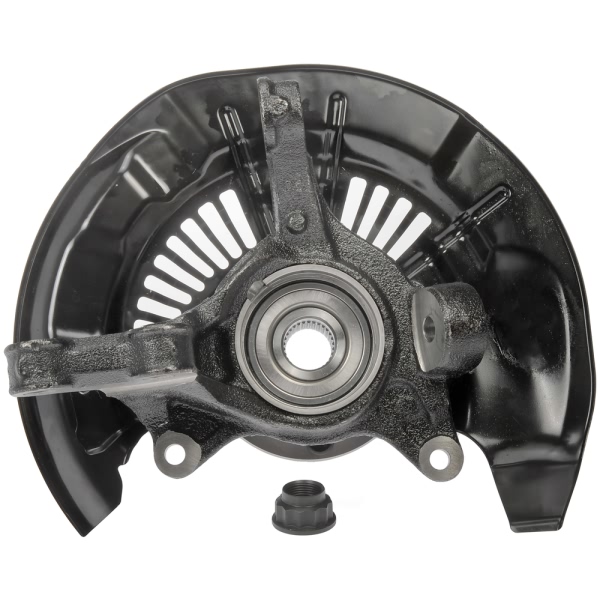

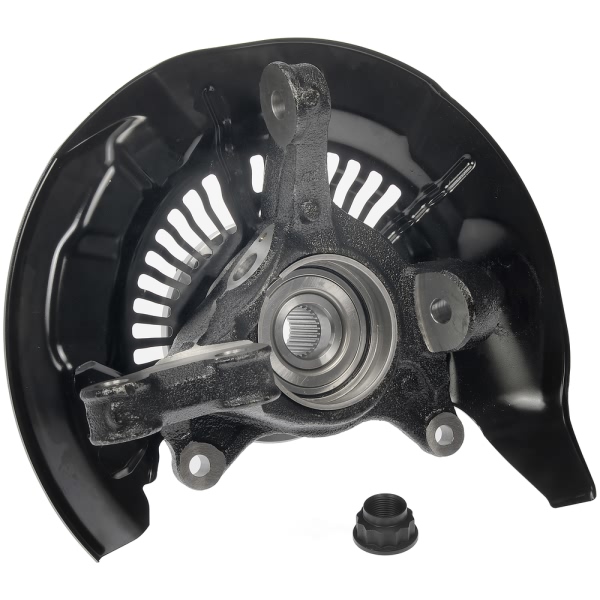

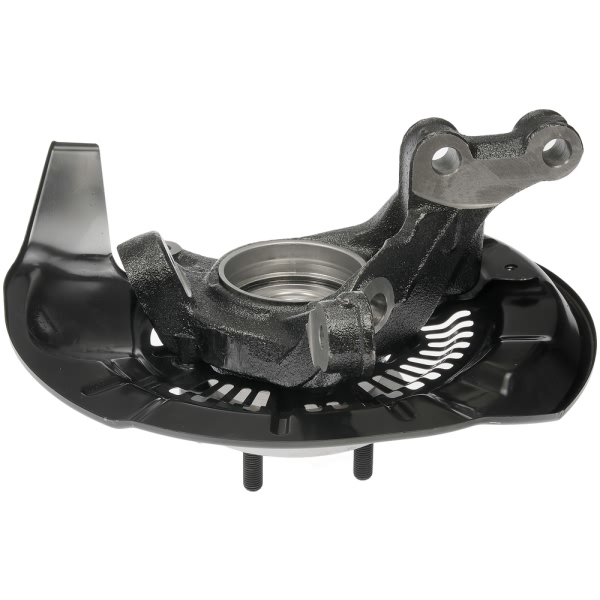

Part Description | OE Solutions Front Passenger Side Wheel Bearing And Hub Assembly |
Anti Lock Brake Sensor Included | No |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Sensor |
Bolt Circle Diameter | 114.3 mm |
Brake Pilot Diameter | 62 mm |
Connector Quantity | 0 |
Connector Terminal Quantity | 0 |
Flange Bolt Hole Diameter | 14 mm |
Flange Bolt Hole Quantity | 5 |
Flange Bolts Included | No |
Flange Diameter | 139 mm |
Flange Included | Yes |
Flange Offset | 76.7 mm |
Flange Shape | Circular |
Hub Pilot Diameter | 58 mm |
Package Contents | 1 load Knuckle |
Package Quantity | 1 |
Packaging Type | Box |
Selling Package Quantity UOM | Piece |
Spline Quantity | 30 |
UPC | 889245445100 |
Wheel Pilot Diameter | 60 mm |
Wheel Stud Quantity | 5 |
Wheel Stud Size | M12 X 1.5 |
Wheel Studs Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2010-2015 Lexus RX350 | All Trims | All Engines |
2010-2015 Lexus RX450h | All Trims | All Engines |
2008-2017 Toyota Highlander | All Trims | All Engines |
