Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 686-248 |

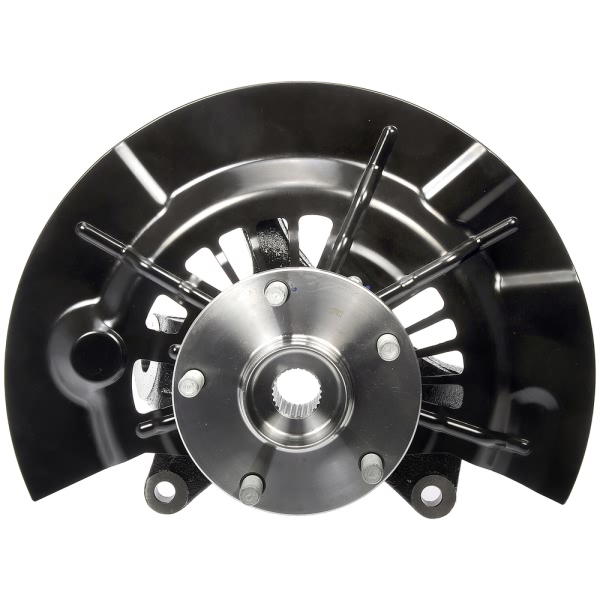

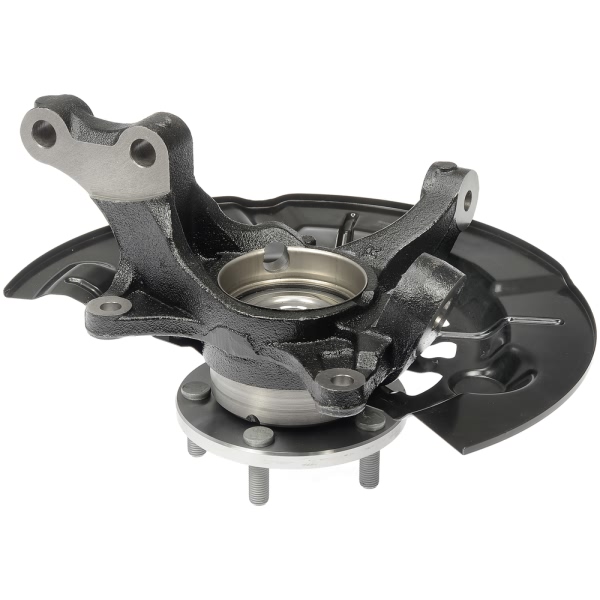

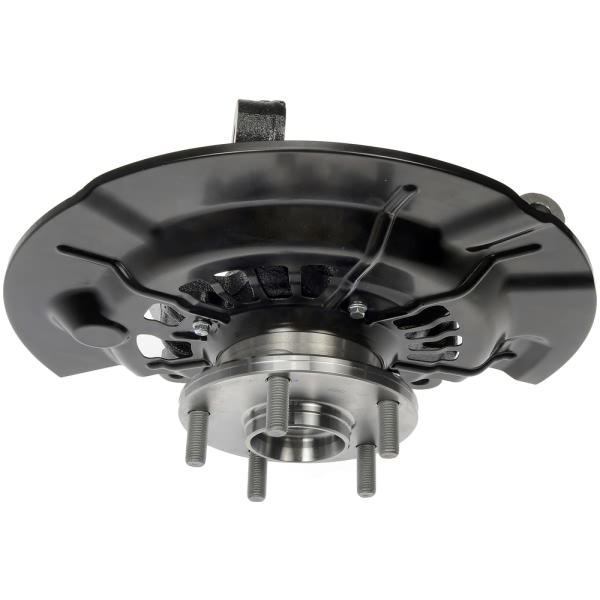

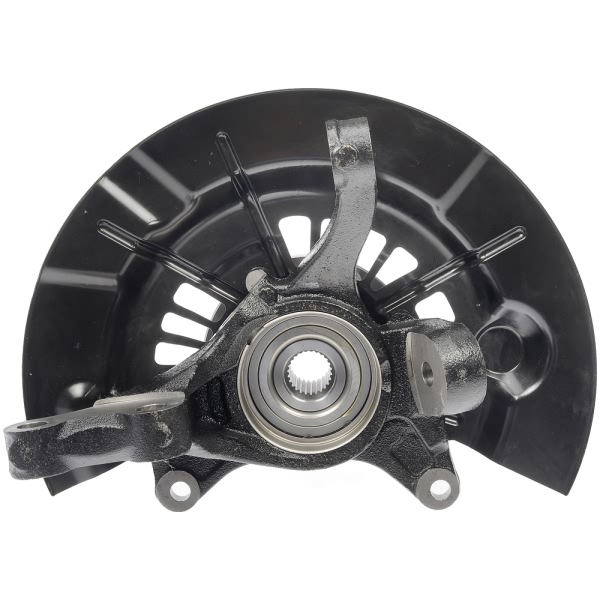

Part Description | OE Solutions Front Passenger Side Passenger Side Loaded Knuckle |
Anti Lock Brake Sensor Included | No |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Encoder |
Bolt Circle Diameter | 114.3 mm |
Brake Pilot Diameter | 62 mm |
Flange Bolt Hole Diameter | 114.3 mm |
Flange Bolt Hole Quantity | 5 |
Flange Bolts Included | Yes |
Flange Diameter | 139 mm |
Flange Included | Yes |
Flange Offset | 10.3 mm |
Flange Shape | Circular |
Hub Pilot Diameter | 45 mm |
Package Contents | 1 Loaded Knuckle; 1 Axle Nut; 1 Hub |
Spline Quantity | 26 |
UPC | 889245539489 |
Wheel Pilot Diameter | 60 mm |
Wheel Stud Quantity | 5 |
Wheel Stud Size | 12 mm |
Wheel Studs Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2012 Toyota Camry | L | All Engines |
2012-2014 Toyota Camry | L | 4 Cyl 2.5L |
2012-2017 Toyota Camry | LE | 4 Cyl 2.5L |
2012-2017 Toyota Camry | XLE | 4 Cyl 2.5L |
