Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 526-290 |

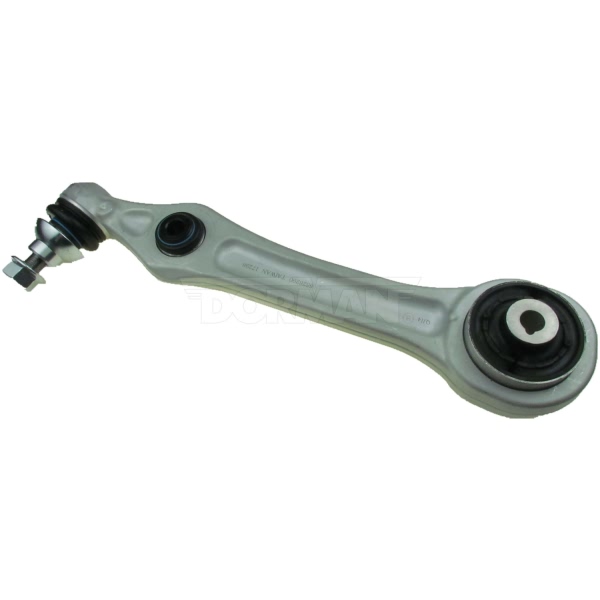

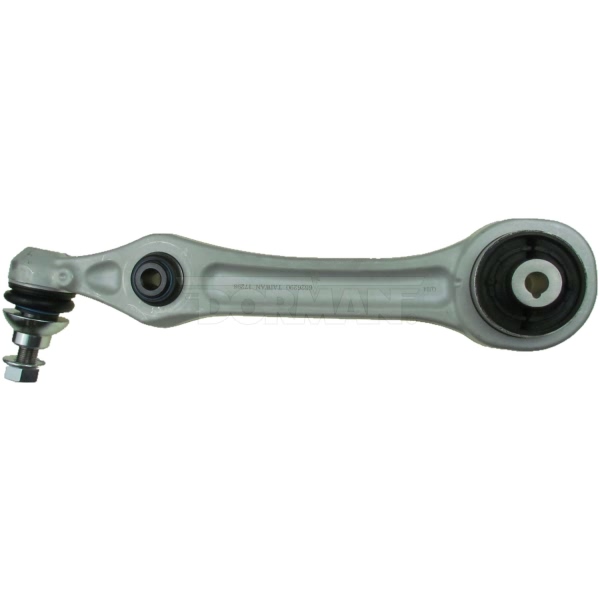

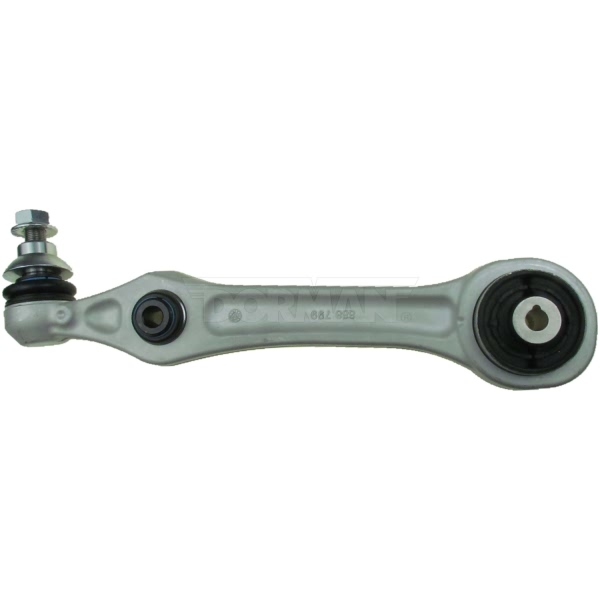

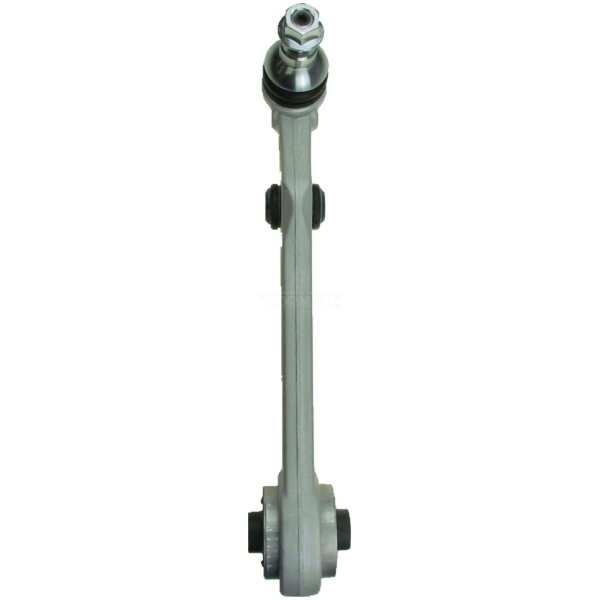

Part Description | Front Driver Side Lower Rearward Non Adjustable Control Arm And Ball Joint Assembly |
Attachment Type | Machined |
Ball Joint Stud Type | Threaded |
Ball Joint Thread Diameter | 16 mm |
Bushing Material | Rubber |
Control Arm Type | Casting/Forged |
Finish | Black |
Grade Type | Standard |
Grease Fitting | No |
Hole Diameter | 14.3 mm |
Length | 410 mm |
Material | Aluminum |
Mount Holes Quantity | 2 |
UPC | 889245045720 |
OE Part Number | 2223303307, 222330330728, 2223309501 |
Width | 140 mm |
Year Make Model | Trim | Engine |
---|---|---|
2017 Mercedes-Benz Maybach S550 | All Trims | All Engines |
2018-2020 Mercedes-Benz Maybach S560 | All Trims | All Engines |
2018-2020 Mercedes-Benz S450 | All Trims | All Engines |
2014-2018 Mercedes-Benz S500 | All Trims | All Engines |
2017-2018 Mercedes-Benz S500L | All Trims | All Engines |
2014-2017 Mercedes-Benz S550 | All Trims | All Engines |
2018-2020 Mercedes-Benz S560 | All Trims | All Engines |
