Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 524-132 |

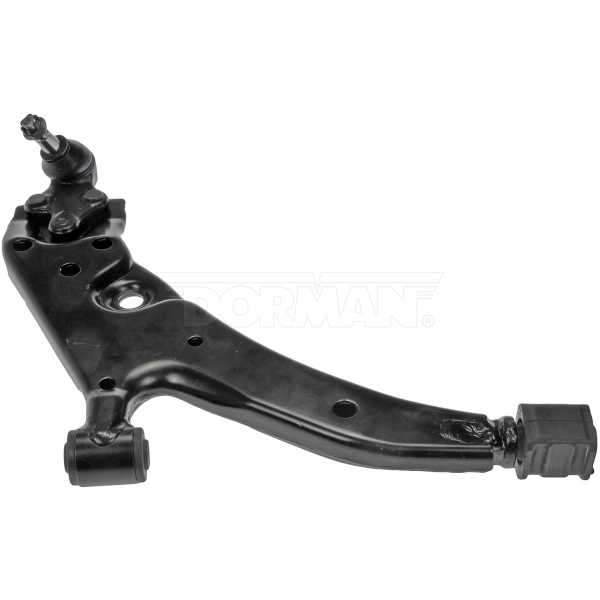

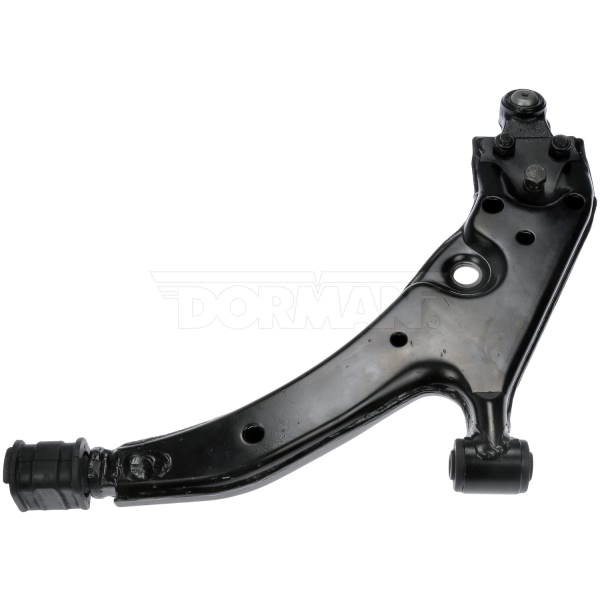

Part Description | Front Passenger Side Lower Control Arm And Ball Joint Assembly |
Adjustable | No |
Ball Joint Included | Yes |
Ball Joint Installed | Yes |
Ball Joint Mounting Type | Bolt In |
Ball Joint Stud Type | Threaded |
Ball Joint Thread Diameter | 14 |
Bushing Material | Rubber |
Bushings Included | Yes |
Control Arm Color | Black |
Control Arm Construction | Stamped |
Control Arm Material | Steel |
Control Arm Maximum Length | 237 |
Control Arm Maximum Width | 288.5 |
Grade Type | Regular |
Grease Fitting Included | Yes |
Mounting Hardware Included | Yes |
Mounting Hole Diameter | 12.3 |
Mounting Hole Quantity | 1 |
UPC | 885484637887 |
OE Part Number | 4333019085, 48068-16060 |
Package Contents | Suspension Control Arm and Ball Joint Assembly |
Pre-Greased | Yes |
Suspension Grade Type | Light |
Year Make Model | Trim | Engine |
---|---|---|
1992-1994 Toyota Paseo | All Trims | All Engines |
1987-1994 Toyota Tercel | All Trims | All Engines |
