Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 521-242 |

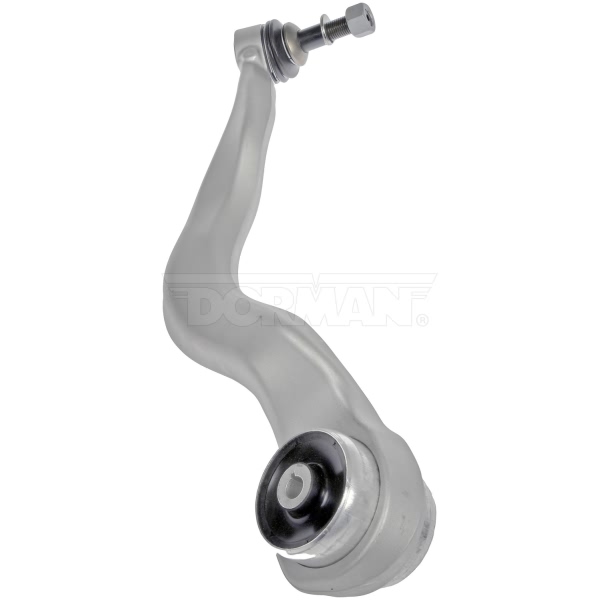

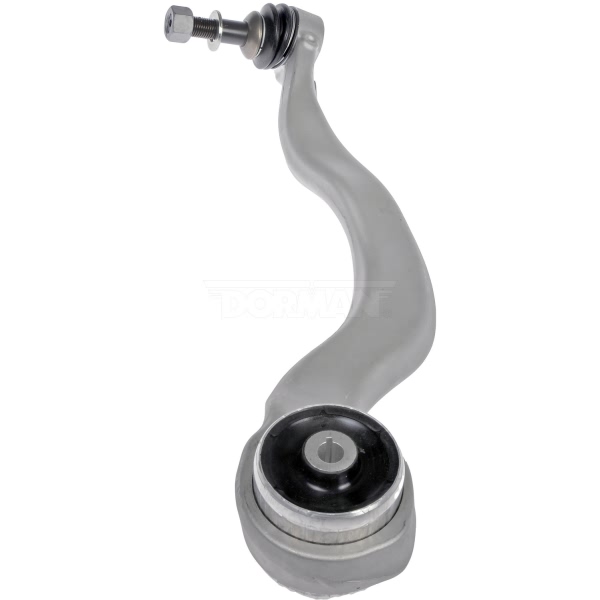

Part Description | Front Passenger Side Lower Forward Control Arm And Ball Joint Assembly |
Adjustable | No |
Ball Joint Included | Yes |
Ball Joint Installed | Yes |
Ball Joint Mounting Type | Machined |
Ball Joint Stud Type | Threaded |
Ball Joint Thread Diameter | 14 |
Bushing Material | Rubber |
Bushings Included | Yes |
Control Arm Color | Black |
Control Arm Construction | Casting/Forged |
Control Arm Material | Aluminum |
Control Arm Maximum Length | 237 |
Control Arm Maximum Width | 288.5 |
Grade Type | Regular |
Grease Fitting Included | No |
Mounting Hardware Included | Yes |
Mounting Hole Diameter | 12.3 |
Mounting Hole Quantity | 1 |
UPC | 885484714281 |
OE Part Number | 31 12 6 854 724 |
Package Contents | Suspension Control Arm and Ball Joint Assembly |
Pre-Greased | Yes |
Suspension Grade Type | Light |
Year Make Model | Trim | Engine |
---|---|---|
2015-2016 BMW 228i xDrive | All Trims | All Engines |
2017-2020 BMW 230i xDrive | All Trims | All Engines |
2013-2018 BMW 320i xDrive | All Trims | All Engines |
2014-2018 BMW 328d xDrive | All Trims | All Engines |
2013-2016 BMW 328i xDrive | All Trims | All Engines |
2017-2019 BMW 330i xDrive | All Trims | All Engines |
2013-2015 BMW 335i xDrive | All Trims | All Engines |
2016-2018 BMW 340i xDrive | All Trims | All Engines |
2014-2016 BMW 428i xDrive | All Trims | All Engines |
2015-2016 BMW 428i xDrive Gran Coupe | All Trims | All Engines |
